UNI-T UT216B 600A True RMS Digital Clamp Meter

Name: UNI-T UT216B 600A True RMS Digital Clamp Meter
Brand: UNI-T
Price: 59.99 GBP
Availability: InStock

£59.99 excl. VAT

£71.99 Incl. VAT

Features

Certifications: CE, UKCA, cETLus, ensuring compliance with international safety and quality standards.

Measurement Accuracy:

True RMS: Ensures accurate measurements under various conditions.
Auto Range: Automatically selects the appropriate measurement range for convenience.
3 Times/s Sampling Rate: Rapid sampling for quick and efficient measurements.

Operational Modes:

MAX/MIN/Relative Modes: Provides flexibility in capturing and analyzing measurement data.

Convenient Features:

Flashlight: Built-in flashlight for enhanced visibility in low-light conditions.

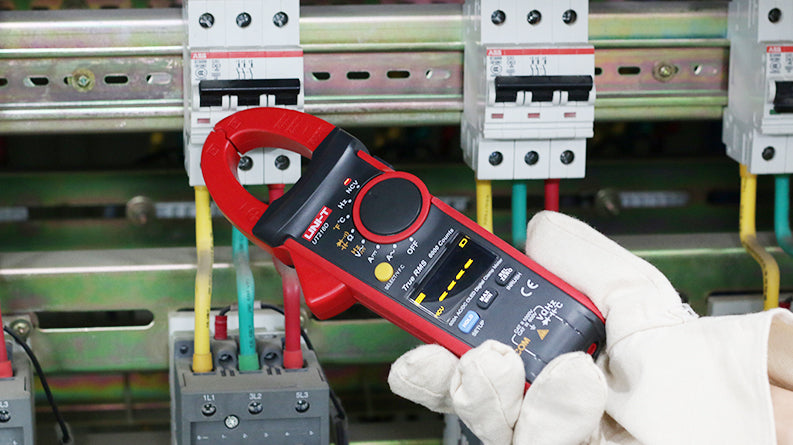

NCV (Non-Contact AC Voltage Testing): Allows for quick and safe detection of AC voltage without direct contact.

Overview

Specifications	Range	UT216B
AC current (A)	600A	±(2.5%+5)
AC current frequency response		40~400Hz
DC current (A)	600A
AC voltage (V)	750V	±(1.2%+5)
AC voltage frequency response		40~400Hz
DC voltage (V)	1000V	±(0.8%+1)
Resistance (Ω)	60MΩ	±(1%+2)
Capacitance (F)	60mF	±(4%+5)
Frequency (Hz)	10Hz~1MHz	±(0.1%+4)
Temperature	-40°C~1000°C
Temperature	-40°F~1832°F
Features
Display count		6000
Auto range		√
Jaw opening		30mm
True RMS		√
Diode	Around 3.0V	√
V.F.C.		√
NCV		√
Data hold		√
Relative mode		√
MAX/MIN		√
LCD backlight		√
Inrush current
OLED display
Analog bar graph
Flashlight		√
Auto power off		√
Continuity buzzer		√
Low battery indication	≤3.6V	√
Input protection		√
Input impedance for DCV	≥10MΩ	√
General Characteristics
Power	1.5V battery (R03) x 3
Display	38mm x 24mm
Product color	Red and grey
Product net weight	UT216A: 280g; UT216B/C/D: 231.7g
Product size	220mm x 75mm x 40mm
Standard accessories	Batteries, test leads, point contact temperature probe (UT216C/UT216D)
Standard individual packing	Gift box, carrying bag, English manual
Standard quantity per carton	40pcs
Standard carton measurement	485mm x 345mm x 385mm
Standard carton gross weight	UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg
