Power Supply
| Series | Type | Channel | Total Power | Output Voltage | Output Current | Resolution | Setting Accuracy | Connectivity | Key Feature | Starting Price |
|---|---|---|---|---|---|---|---|---|---|---|

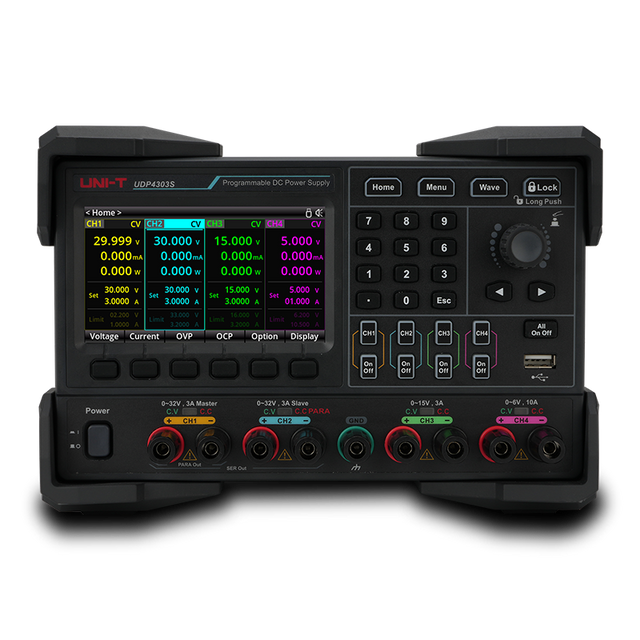

UDP4303SNEW
|
Linear | 4 | 297W | 0-32V | 0-10A | 1mV,1μA | <0.03%+8mV <0.15%+5mA |
RS-232,USB Host, USB Device, LAN, Digital IO, Sense |
||
UDP6900NEW
|
Switching | 1 | 600W | 0-150V | 0-25A | 0.1mV,0.1mA | <0.03%+5mV <0.1%+5mA |
RS-232, USB Device, LAN, RS485 |
||
UDP3000S
Best Seller |
Linear | 4 | 328W | 0-30V | 0-5A | 1mv,1ma | <0.3%+10mV <0.2%+5mA |
USB Device,RS-232,LAN, USB host,Digital I/O |
||
UDP3000
|
Linear | 3 | 315W | 30V | 5A | 10mv/1ma | Voltage:＜0.01%＋3mV, Current:≤0.2%+3mA |
USB，RS-232 | ||
UTP3300-II
|
Linear | 3 | 335W | 32V | 5A | 10mv/1ma | Voltage:＜0.01%＋3mV, Current:≤0.1%+3mA |
/ | ||
UTP3300TFL-II
|
Linear | 1 | 150W | 30V | 5A | 10mv/1ma | Voltage:＜0.01%＋3mV, Current:≤0.1%+5mA |
/ | ||
UDP6700
|
Switching | 1 | 360W | 0~80V | 0~30A | 10mv/1ma | Voltage:＜0.05%＋10mV, Current:≤0.2%+2mA |
RS-232 |
