Specifications
Specifications
-
Bandwidth350MHz
-
ChannelAnalog Channels 4
-
Real-Time Sample Rate2.5GSa/s
-
Waveform Capture Rate1.000,000wfms/s
-
Max. Memory Depth250Mpts
-
Waveform Generator-
Description
- Analog Bandwidth: 350 MHz
- Analog Channels: 4
- Real-Time Sampling Rate: 2.5 GSa/s (analog)
- Input Impedance: 1 MΩ / 50 Ω selectable
- Memory Depth: 70 Mpts per channel; up to 250 Mpts in single/scan mode
- Waveform Capture Rate: Up to 1,000,000 wfms/s
- Waveform Generator: Not included (available only in MSO-S models)
- Bode Plot: Built-in loop test function for system stability analysis
- Waveform Recording: Hardware real-time recording and playback of up to 120,000 frames
- Math Functions: Addition, subtraction, multiplication, division, digital filtering, logic, and advanced operations
- FFT Analysis: 1Mpts enhanced FFT with frequency setting, detection settings, marker tools, and waterfall diagram
- Parameter Measurements: 36 automatic waveform parameters
- Scan Measurement: Real-time measurement supported during scanning
- Multi-Scopes Mode: Multi-channel independent triggering and phosphor-style visualization (Multi-Scopes 2.0)
- Frequency Counter: Multi-channel 7-digit hardware counter with independent configuration
- DVM Function: True RMS measurement for AC, DC, and AC+DC on all channels
- Trigger Types: Edge, Pulse, Video, Slope, Runt, Over Amplitude, Delay, Timeout, Duration, Setup/Hold, Nth Edge, Pattern
- Zone Triggering: Enables precise capture of rare and complex signals
- Protocol Decoding (Optional): RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay

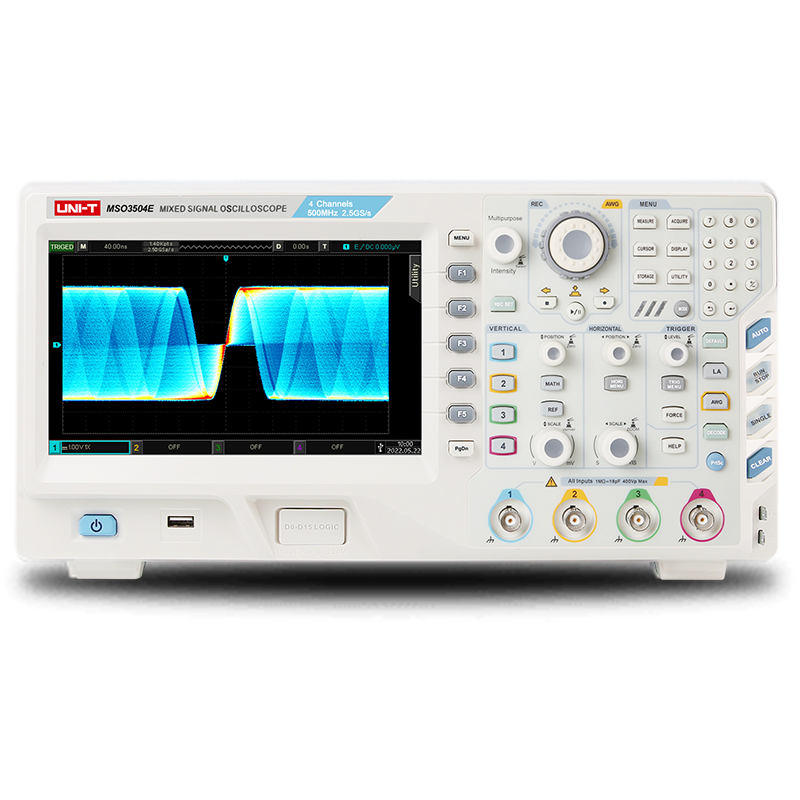

- Display: 8-inch capacitive touchscreen (800×480) with gesture support: click, slide, zoom, edit, drag
- Display Technology: Ultra Phosphor 2.0 with up to 256 levels of grayscale

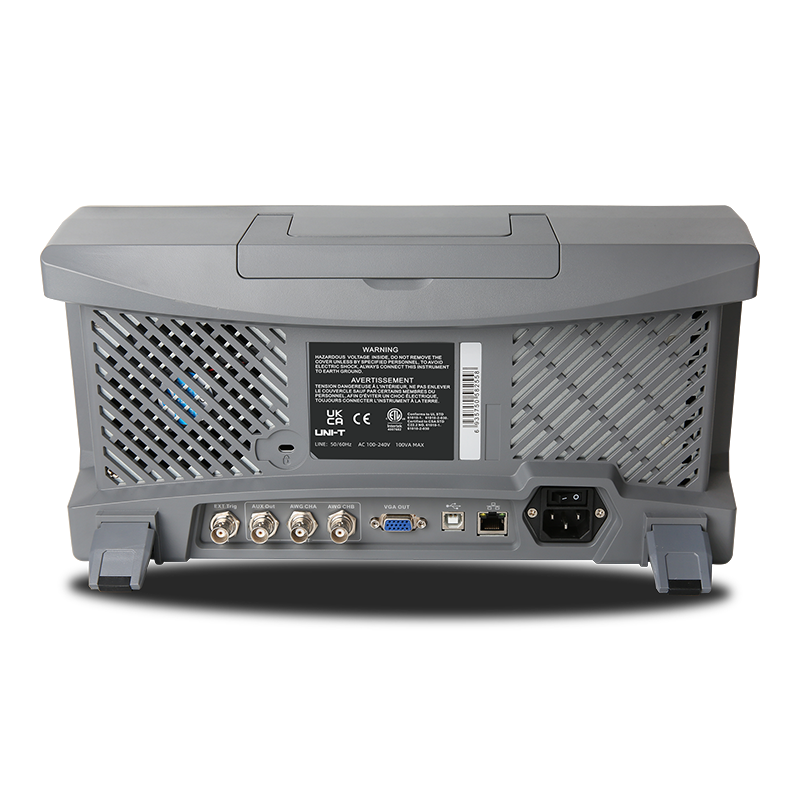

- Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA
- Storage & Export: U disk data storage, one-key screen capture, and USB upgrade support
- USB Connectivity: Plug-and-play USB device communication with PC
- SCPI Support: Fully programmable via SCPI standard command set
- Remote Access: Web-based control via PC or mobile browser
Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£1,283.00
excl. VAT
Unit price
/
Unavailable
£1,539.60
Incl. VAT
|
£1,070.00
excl. VAT
Unit price
/
Unavailable
£1,284.00
Incl. VAT
|
£679.00
excl. VAT
Unit price
/
Unavailable
£814.80
Incl. VAT
|
£594.00
excl. VAT
Unit price
/
Unavailable
£712.80
Incl. VAT
|
| Bandwidth | ||||
| Bandwidth | 350MHz
| 350MHz
| 200MHz
| 200MHz
|
| Channel | ||||
| Channel | Analog Channels 4
| 2
| 4
| 2
|
| Max. Memory Depth | ||||
| Max. Memory Depth | 250Mpts
| 250Mpts
| 56Mpts
| 56Mpts
|
| Real-Time Sample Rate | ||||
| Real-Time Sample Rate | 2.5GSa/s
| 2.5GSa/s
| 2GSa/s
| 2GSa/s
|
| Waveform Capture Rate | ||||
| Waveform Capture Rate | 1.000,000wfms/s
| 1.000,000wfms/s
| 1.000,000wfms/s
| 1.000,000wfms/s
|
| Waveform Generator | ||||
| Waveform Generator | - | - | - | - |
