UNI-T UT714 Process Calibrator
£478.99
excl. VAT
Unit price
/
Unavailable
£574.79
Incl. VAT
Features
- Step/Ramp Functions: Versatile functions for diverse applications.
- Source and Measure Accuracy: Up to 0.02% for precise measurements.
- Rechargeable Battery: Convenient and portable power source.
- Contrast Adjustment: Allows for optimal display visibility.
- Auto Power Off: Adjustable timer for efficient power management.
- Setup Storage: Stores and recalls setups for ease of use.
- USB Communication: Facilitates data transfer and connectivity.
- Certifications: CE, UKCA, ensuring compliance with international standards.
Overview
Overview
| Specifications | Range | UT714 |
| Measurement | ||
| DC voltage (V) | 50mV/500mV/30V | ±(0.02%+2) |
| Resistance (Ω) | 500Ω/5000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 | |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| Resistance (Ω) | 400Ω/4000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operating temperature | -10°C~55°C | |
| General Characteristics | ||
| Power | 1.2V x 6 AA rechargeable battery | |
| Product net weight | 650g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual | |
Related Documents
Related Documents
Couldn't load pickup availability
Features
Features

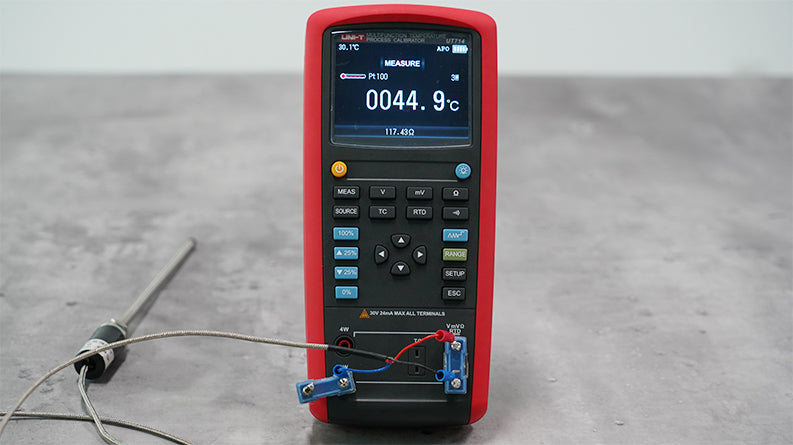

RTDs measurement

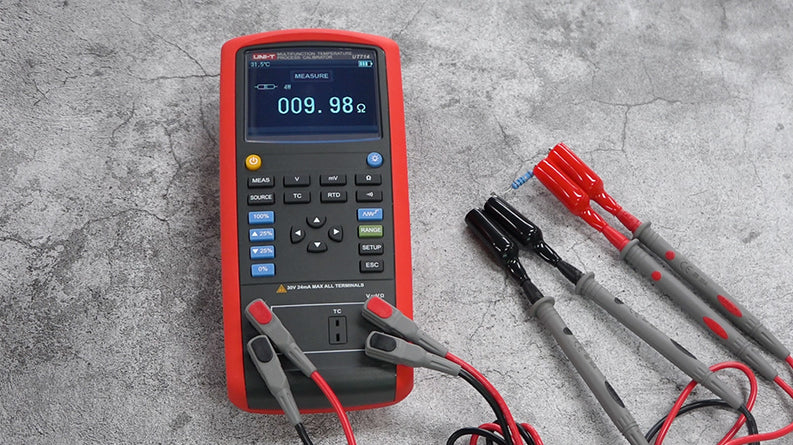

Resistance measurement
