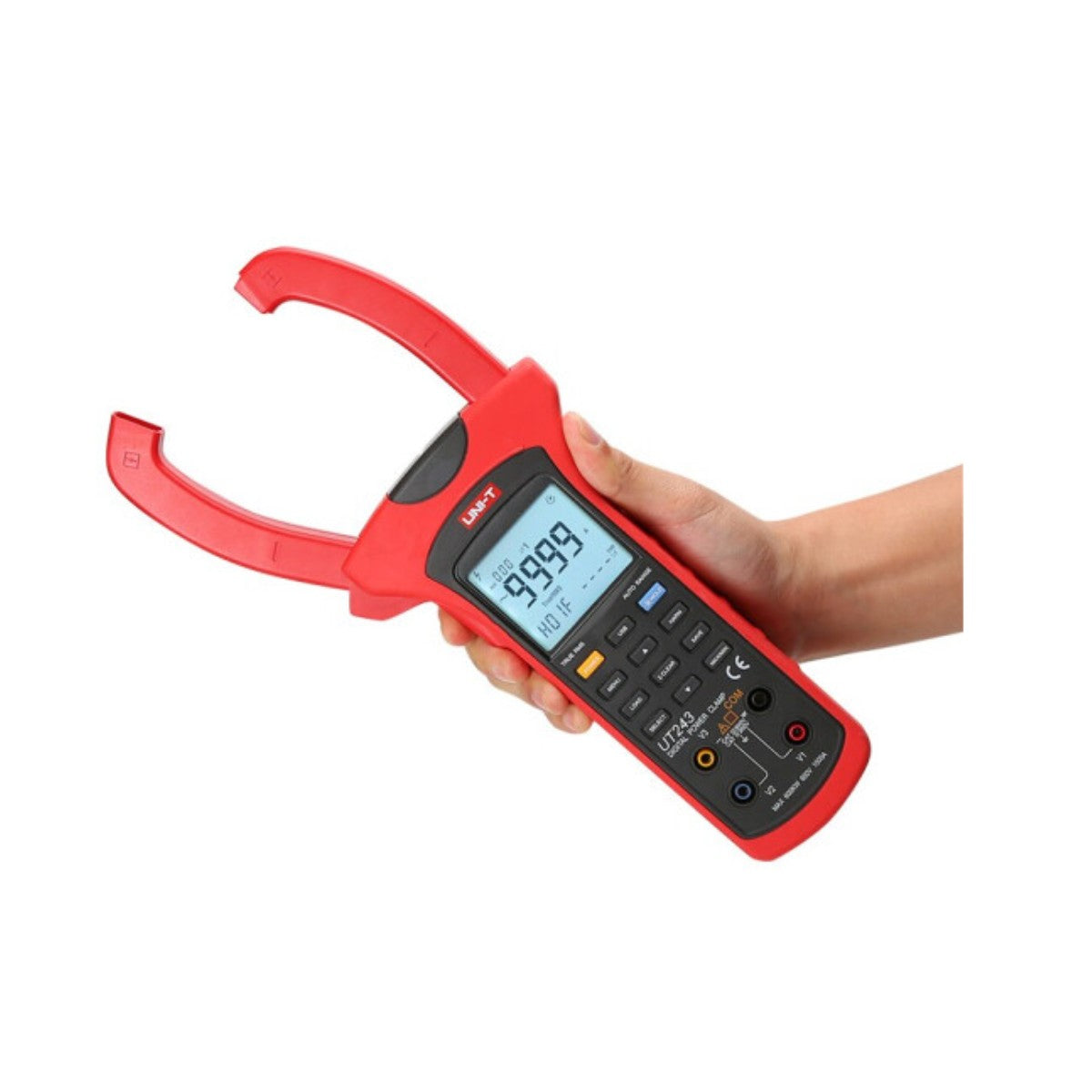

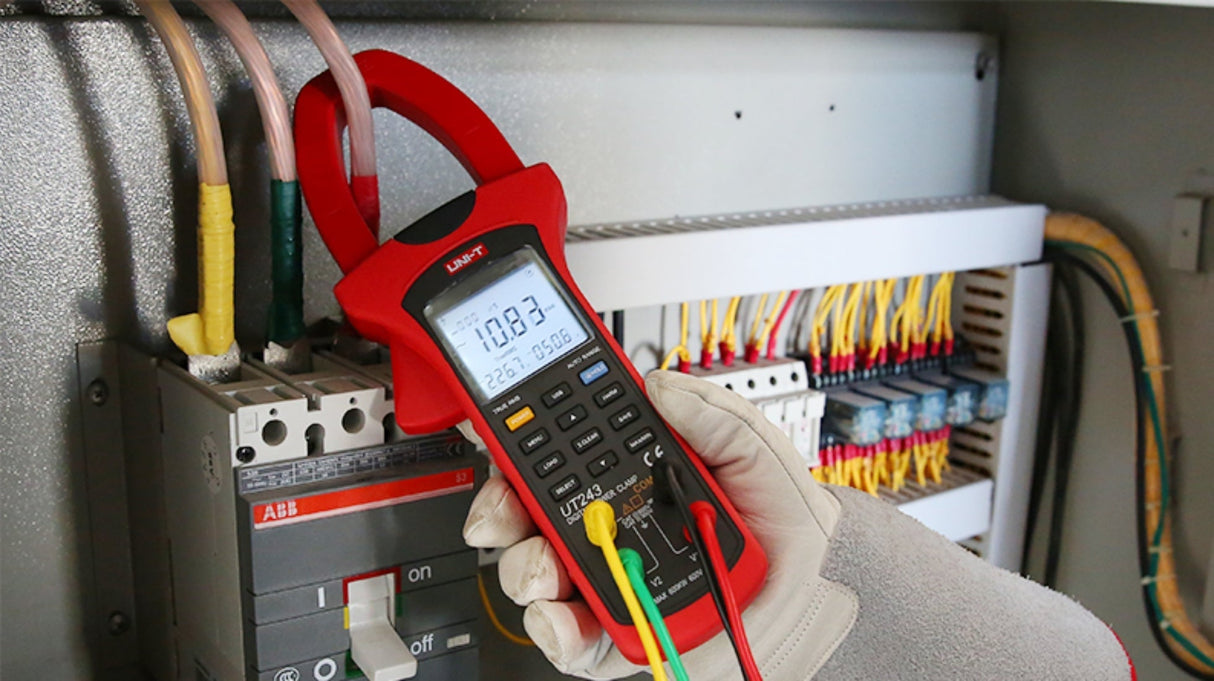

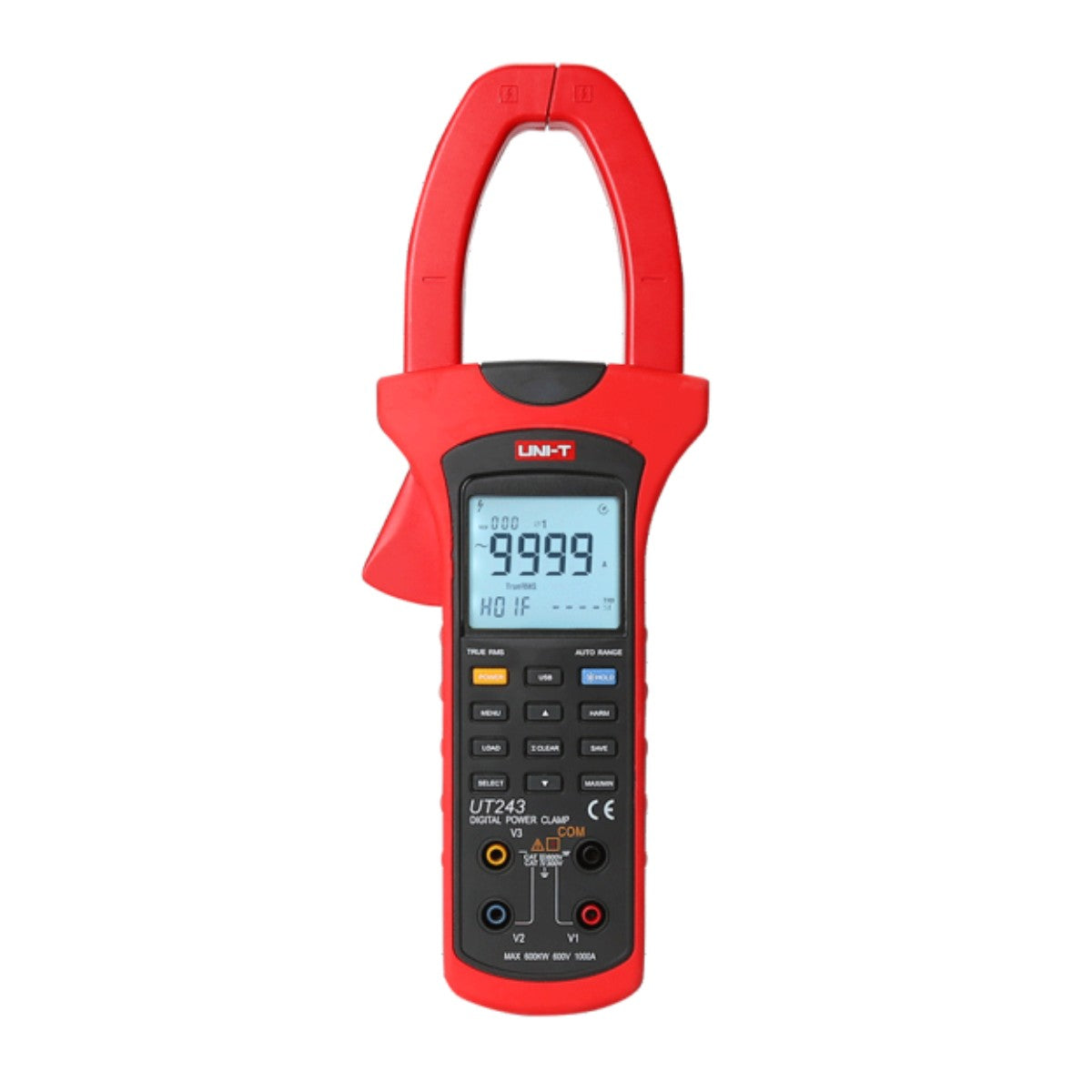

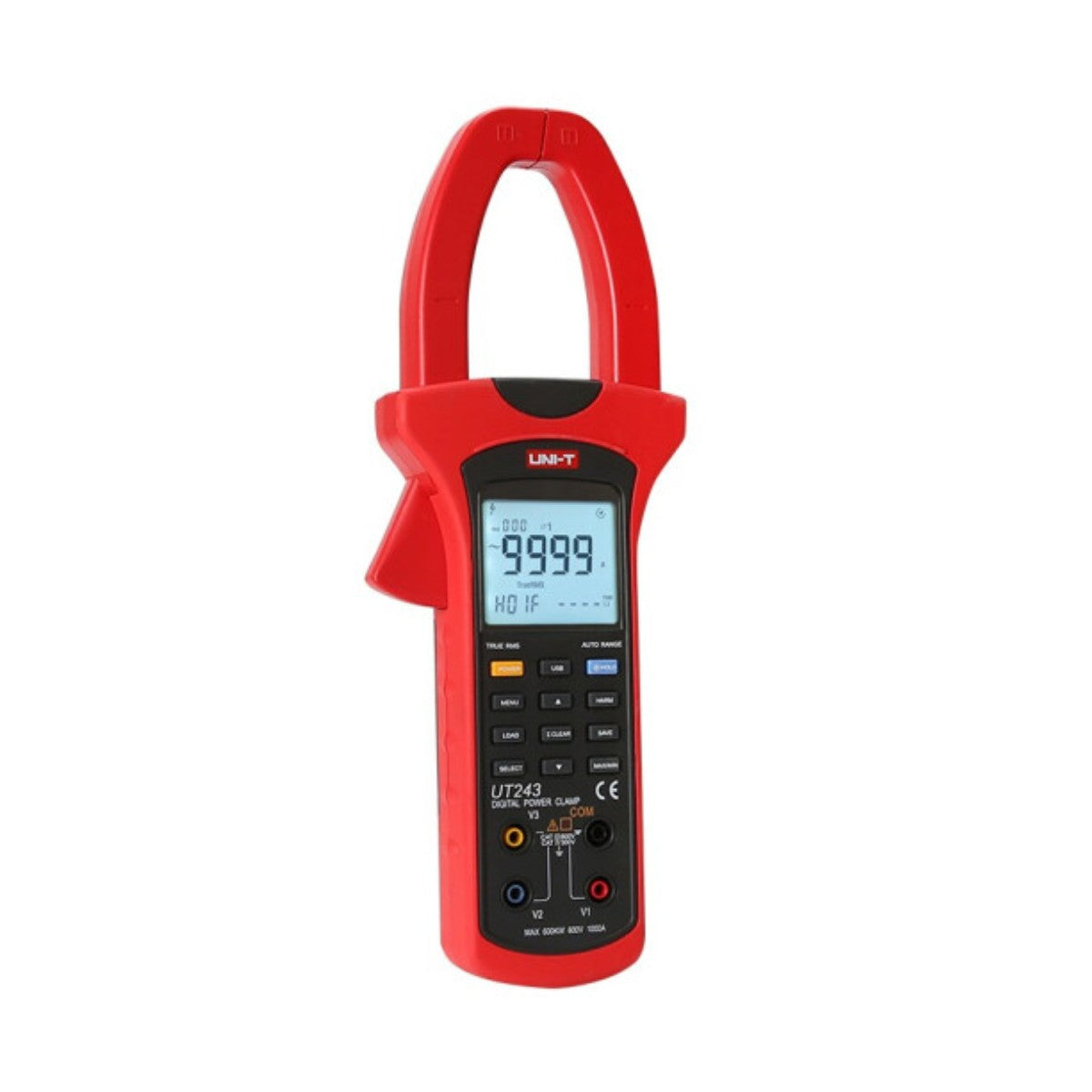

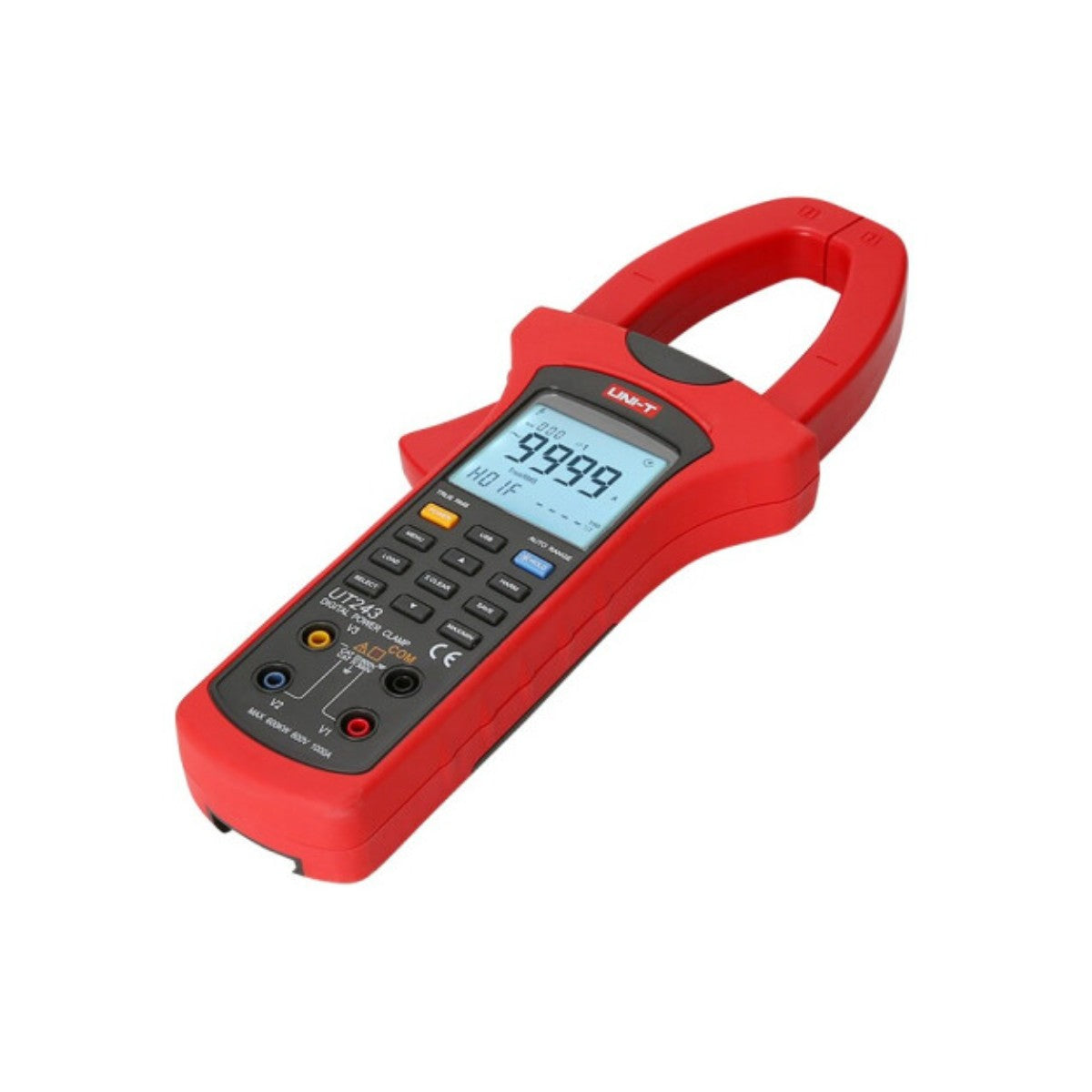

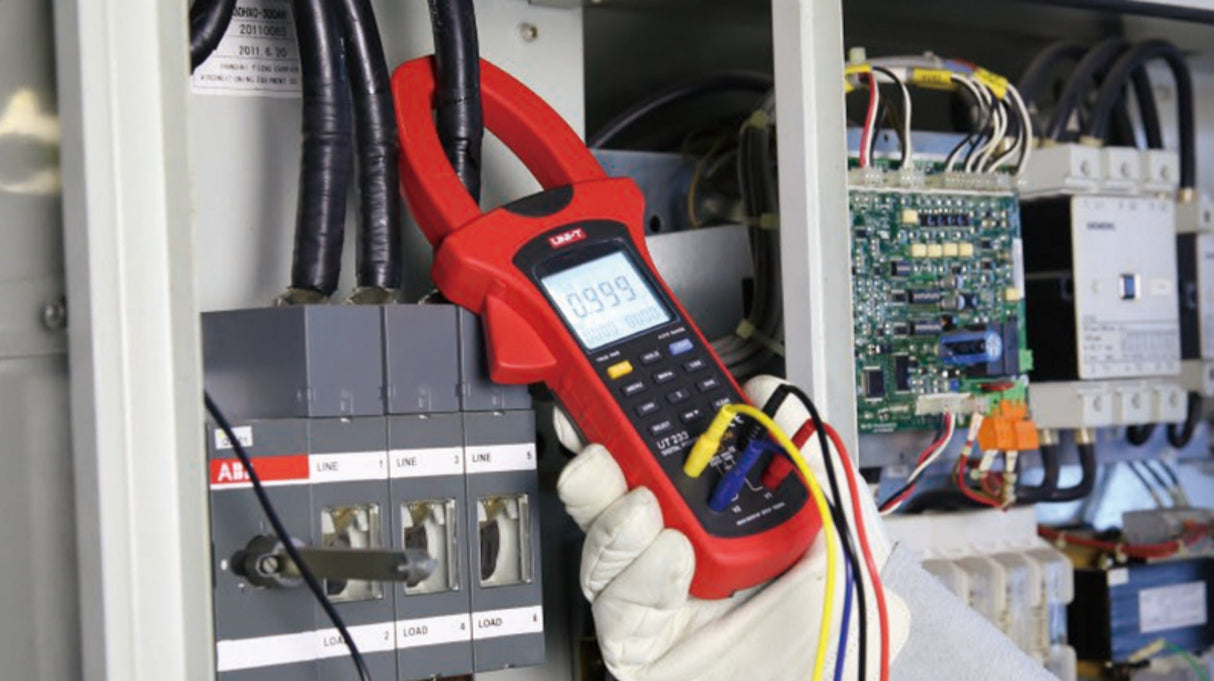

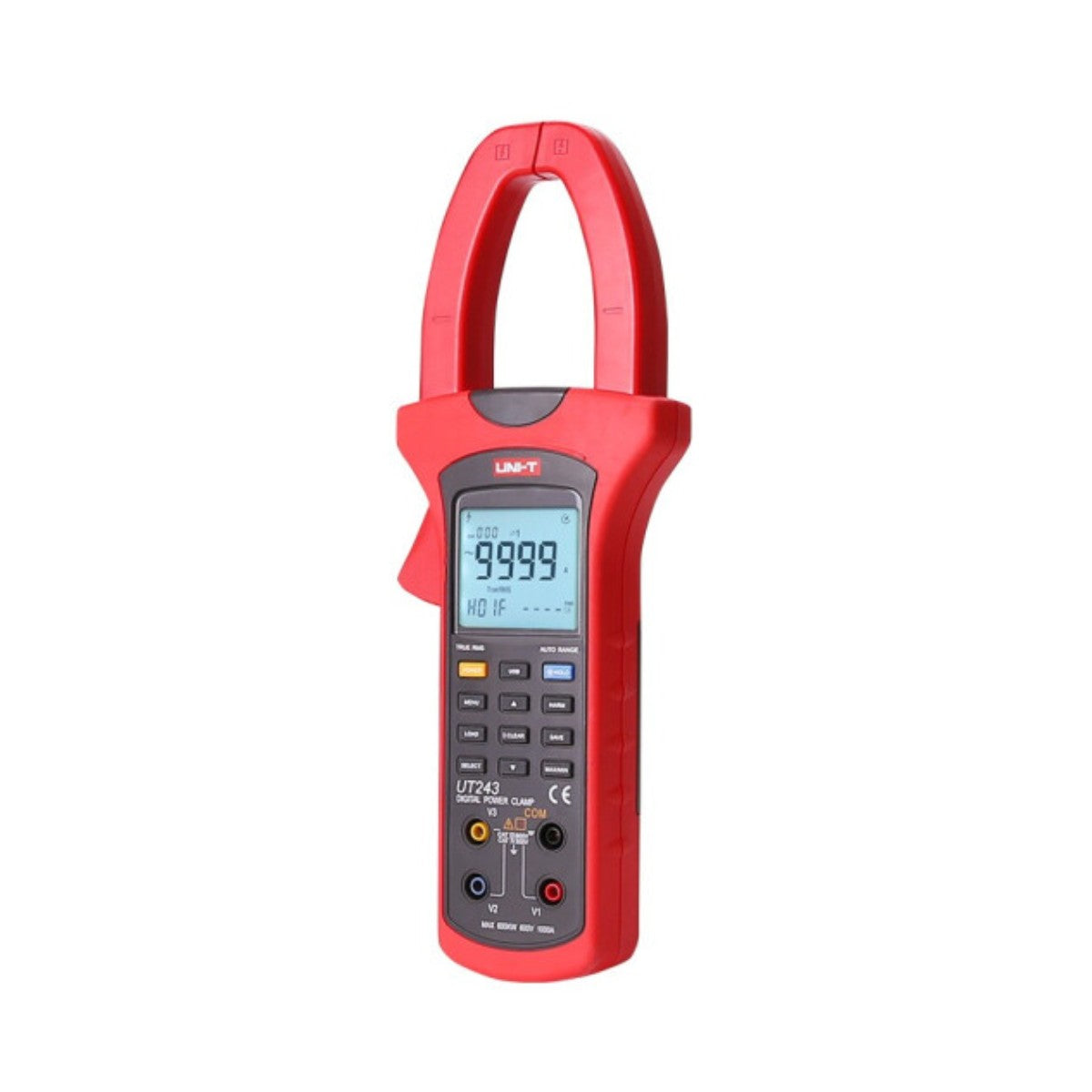

UNI-T UT243 Power and Harmonics Clamp Meter

Name: UNI-T UT243 Power and Harmonics Clamp Meter
Brand: UNI-T
Price: 196.99 GBP
Availability: InStock

£196.99 excl. VAT

£236.39 Incl. VAT

Features

Certifications: CE, UKCA

Measurement:

Display:

Modes:

Operational Features:

Connectivity:

Overview

Specifications	Range	UT243
AC current (A)	1000A	±(2%+5)
AC voltage (V)	600V	±(1.2%+5)
Frequency (Hz)	40Hz~80Hz	±(0.5%+5)
Active power (W)	0.01kW~600kW	±(3%+5)
Apparent power (VA)	0.01kVA~600kVA	±(3%+5)
Reactive power (VAr)	0.01kVAr~600kVAr	±(4%+5)
Power factor	0.3~1	±0.022
Phase angle (°)	0°~360°	±2°
Active energy (Wh)	1kWh~9999kWh	±(3%+2)
Features
Display count		10000
Auto range		√
Jaw opening		50mm
True RMS	AC voltage/AC current	√
Auto power off		√
Low battery indication		√
Data hold		√
MAX/MIN		√
Data storage		999
USB interface		√
LCD backlight		√
Full icon display		√
Harmonic analysis		1~20
Setup		√
Single-phase 2-wire		√
3-phase 3-wire		√
3-phase 4-wire		√
Phase sequence test	Positive phase, reverse phase, phase deficiency	√
Input impedance for DCV		≥5MΩ
Input protection		√
General Characteristics
Power	1.5V battery (R6) x 4
Display	46mm x 42mm
Product color	Red and grey
Product net weight	601g
Product size	303mm x 112mm x 39mm
Standard accessories	Batteries, test leads, alligator clips, USB interface cable, PC software CD
Standard individual packing	Gift box, English manual, tool box
