UNI-T UDP6953B DC Power Supply
- Type: High-efficiency switching power supply
- Channels: 1 output channel
- Total Power Output: 600 W
- Output Voltage: 0–150 V
- Output Current: 0–10 A
- Resolution: 1 mV / 0.1 mA – for precise voltage and current control
- Programming Accuracy: Voltage: ≤ 0.03% + 20 mV, Current: ≤ 0.1% + 25 mA
- Interfaces: RS232, RS485, USB Device, LAN – versatile connectivity for remote control and automation
- Ideal For: Power electronics testing, industrial R&D, battery charging, and automated test systems
11% off
New arrival
£1,023.00
excl. VAT
£1,146.00
Unit price
/
Unavailable
£1,227.60
Incl. VAT
Variants
Variants
Couldn't load pickup availability
5-Year Warranty Coverage
Enjoy peace of mind with a 3-Year Standard Warranty, plus receive an additional 2 years when you register your product on our website.
👉 Register now at: Product Registration
Specifications
Specifications
-
Type
-
Channels1
-
Total Power
-
Output Voltage0~150V
-
Output Current0~10A
-
Resolution1mV, 0.1mA
-
Accuracy≤0.03%+20mV, ≤0.1%+25mA
-
ConnectivityRS232，RS485，USB Device，LAN
Description
- Output Type: Switching programmable DC power supply
- Channels: 1 isolated output channel
- Output Voltage Range: 0 V to 150 V
- Output Current Range: 0 A to 10 A
- Output Power: 600 W
- Resolution: 1 mV / 0.1 mA
- Accuracy: Voltage ≤ 0.03% + 20 mV; Current ≤ 0.1% + 25 mA
- Display: 4.3” true color TFT LCD – displays set and output values simultaneously
- Control Methods: Numeric keypad + encoder knob for precise adjustment
- Programmable Output: Adjustable voltage/current slope, with time control (0.1 to 99999.9 s)
- Output Quality: Low ripple and noise for high stability applications
- Remote Sense: Compensates for voltage drops over long cables
- Built-in Voltmeter: Integrated 4½-digit voltmeter for external measurements
- Protection: Over Voltage Protection (OVP), Over Current Protection (OCP)
- Cooling: Intelligent fan control for noise reduction and energy efficiency
- Memory: Supports 18x8 group memory for quick recall and storage
- External Control: Analog and digital control supported
- Interfaces: RS232, RS485, USB Device, LAN – supports SCPI, Multi-SCPI, and Modbus RTU
- LAN Features: Web server for remote access and control, VXI bus compatibility
- Display Features: Adjustable backlight and real-time output voltage/current/power monitoring

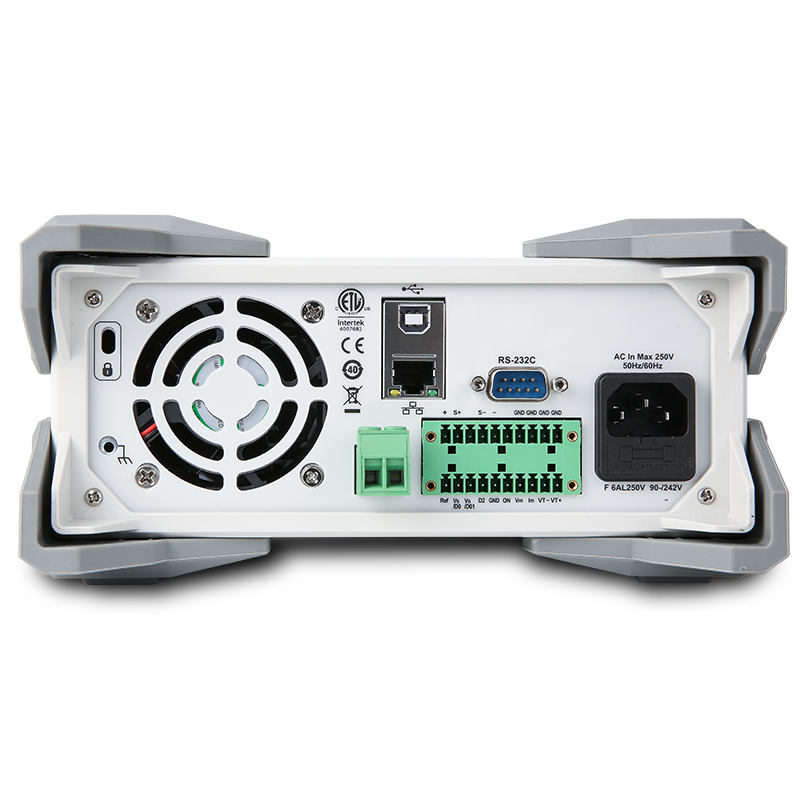

- Form Factor: Rack-mountable with front and rear panel connections
- Input Voltage: Wide input range (100–240 V), high power factor with low harmonic interference
Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£1,023.00
excl. VAT
Unit price
/
Unavailable
£1,227.60
Incl. VAT
|
£855.00
excl. VAT
Unit price
/
Unavailable
£1,026.00
Incl. VAT
|
£591.00
excl. VAT
Unit price
/
Unavailable
£709.20
Incl. VAT
|
£564.00
excl. VAT
Unit price
/
Unavailable
£676.80
Incl. VAT
|
| Type | ||||
| Type | ||||
| Channel | ||||
| Channel | 1
| 1
| 1
| 1
|
| Total Power | ||||
| Total Power | ||||
| Output Voltage | ||||
| Output Voltage | 0~150V
| 0~60V
| 0~60V
| 0~150V
|
| Output Current | ||||
| Output Current | 0~10A
| 0~25A
| 0~15A
| 0~5A
|
| Resolution | ||||
| Resolution | 1mV, 0.1mA
| 0.1mV, 0.1mA
| 0.1mV, 0.1mA
| 1mV, 0.1mA
|
| Accuracy | ||||
| Accuracy | ≤0.03%+20mV, ≤0.1%+25mA
| ≤0.03%+5mV, ≤0.1%+25mA
| ≤0.03%+5mV, ≤0.1%+15mA
| ≤0.04%+30mV, ≤0.1%+10mA
|
| Connectivity | ||||
| Connectivity | RS232，RS485，USB Device，LAN
| RS232，RS485，USB Device，LAN
| RS232，RS485，USB Device，LAN
| RS232，RS485，USB Device，LAN
|
