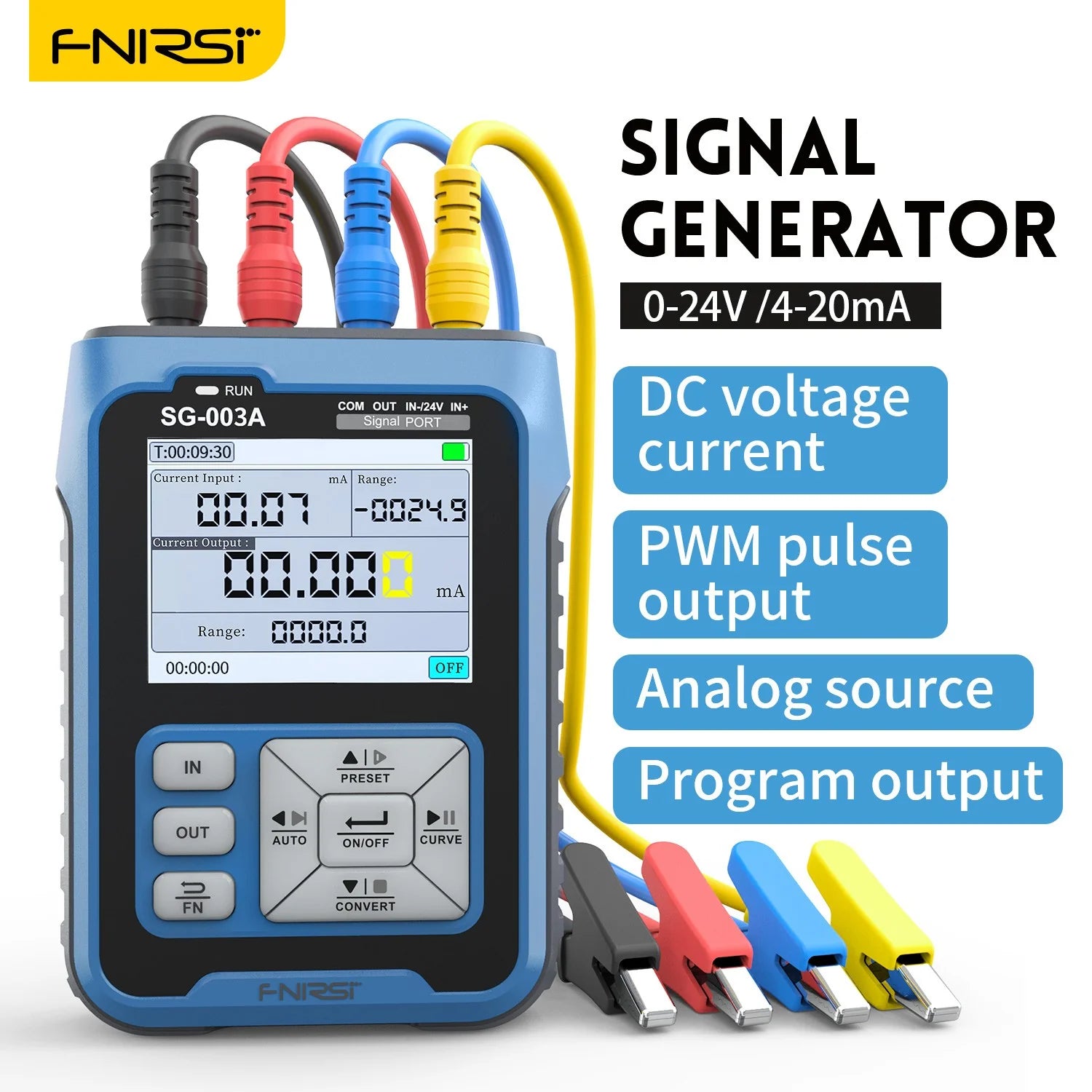

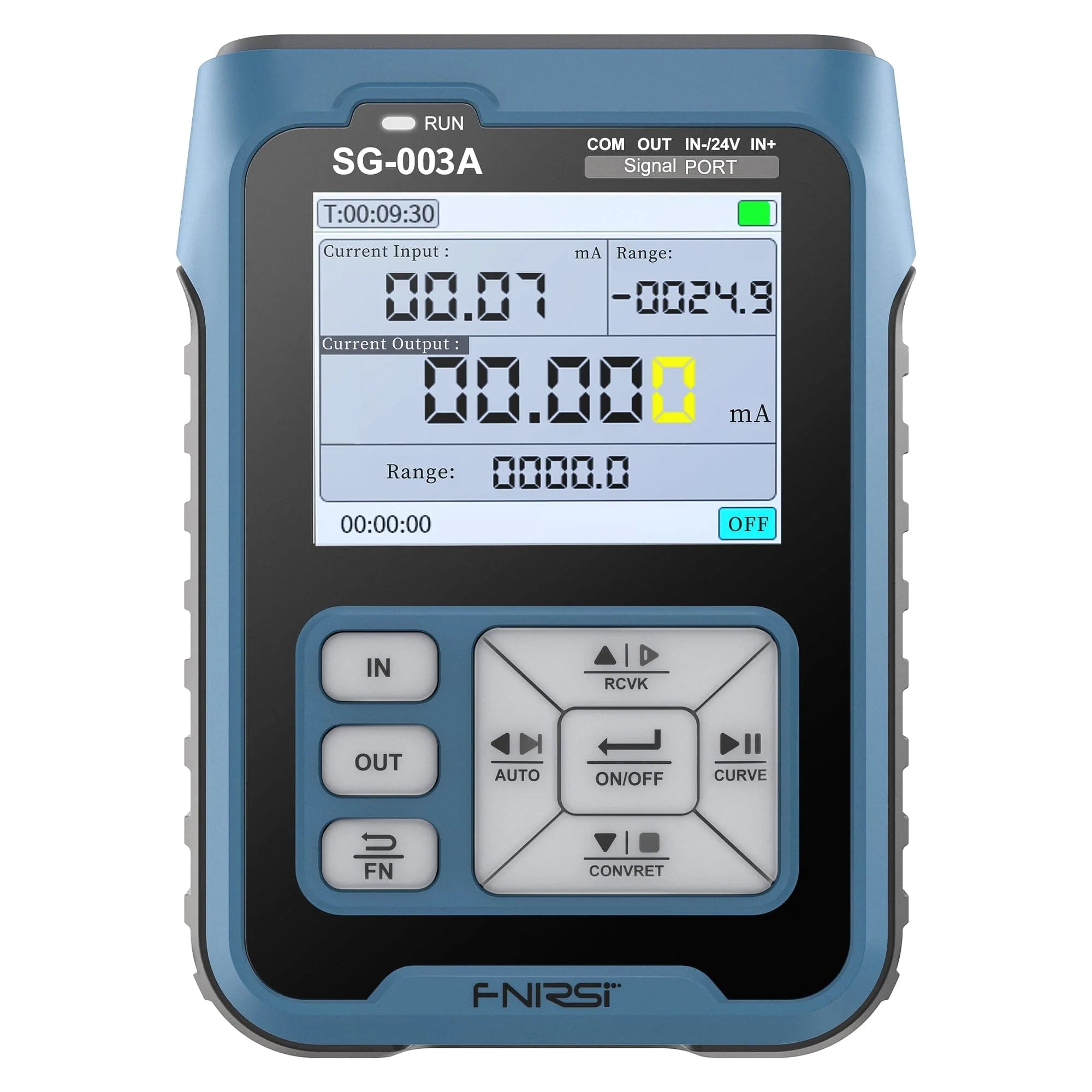

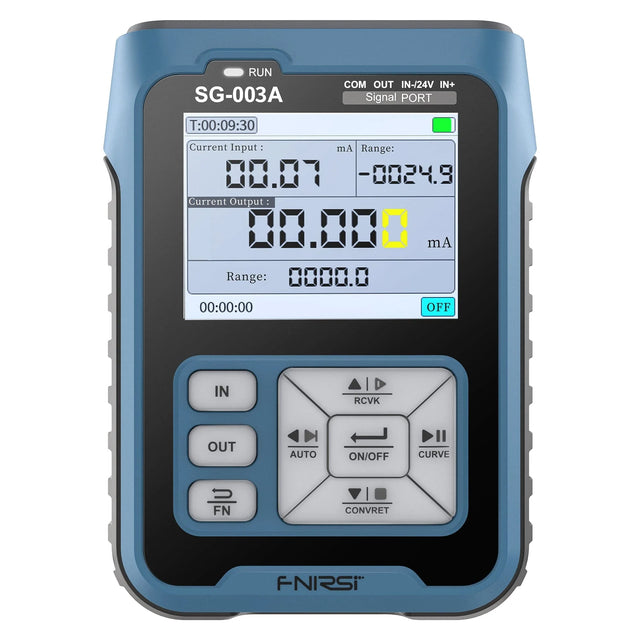

FNIRSI® SG-003A Signal Generator

✦ Physical & Engineering: Signals are displayed as physical or engineering (ie pure quantity) values. For example: the current signal of 4-20mA corresponds to 0-100, that is 4mA corresponds to 0, 12mA corresponds to 50, and 20mA corresponds to 100.

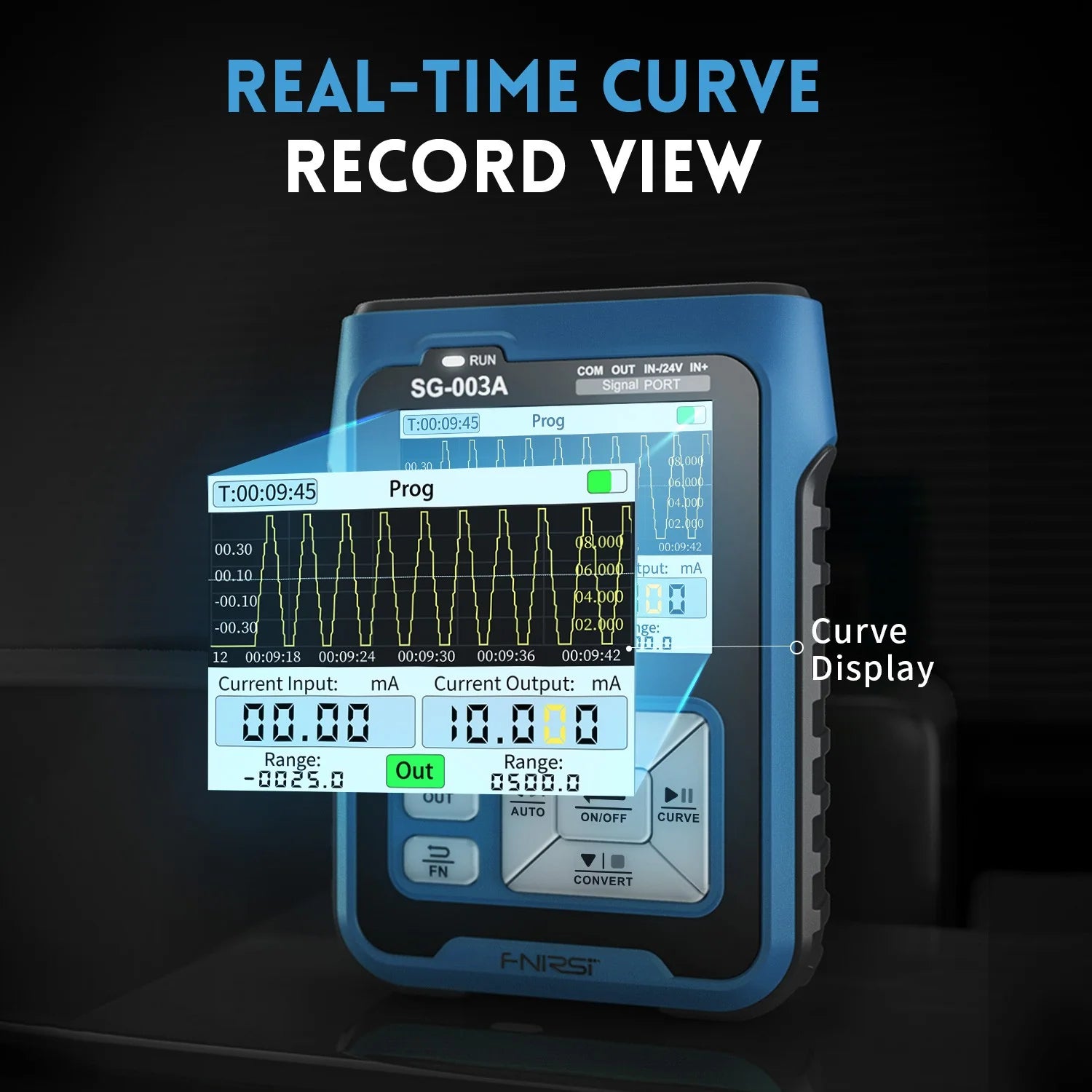

✦ Real-time Curve: The change trend of input and output signals can be displayed by drawing a curve, and the sampling time of the curve can be set.The current-voltage analog simulator can also adjust the curve within the range of the max and min values.

✦ Signal Conversion: FNIRSI SG-003A signal generator can convert input signals into an output signal, and converted into different physical quantities. The input signal is converted into a current signal, and the input range is 0-1000hz into 4-20mA.

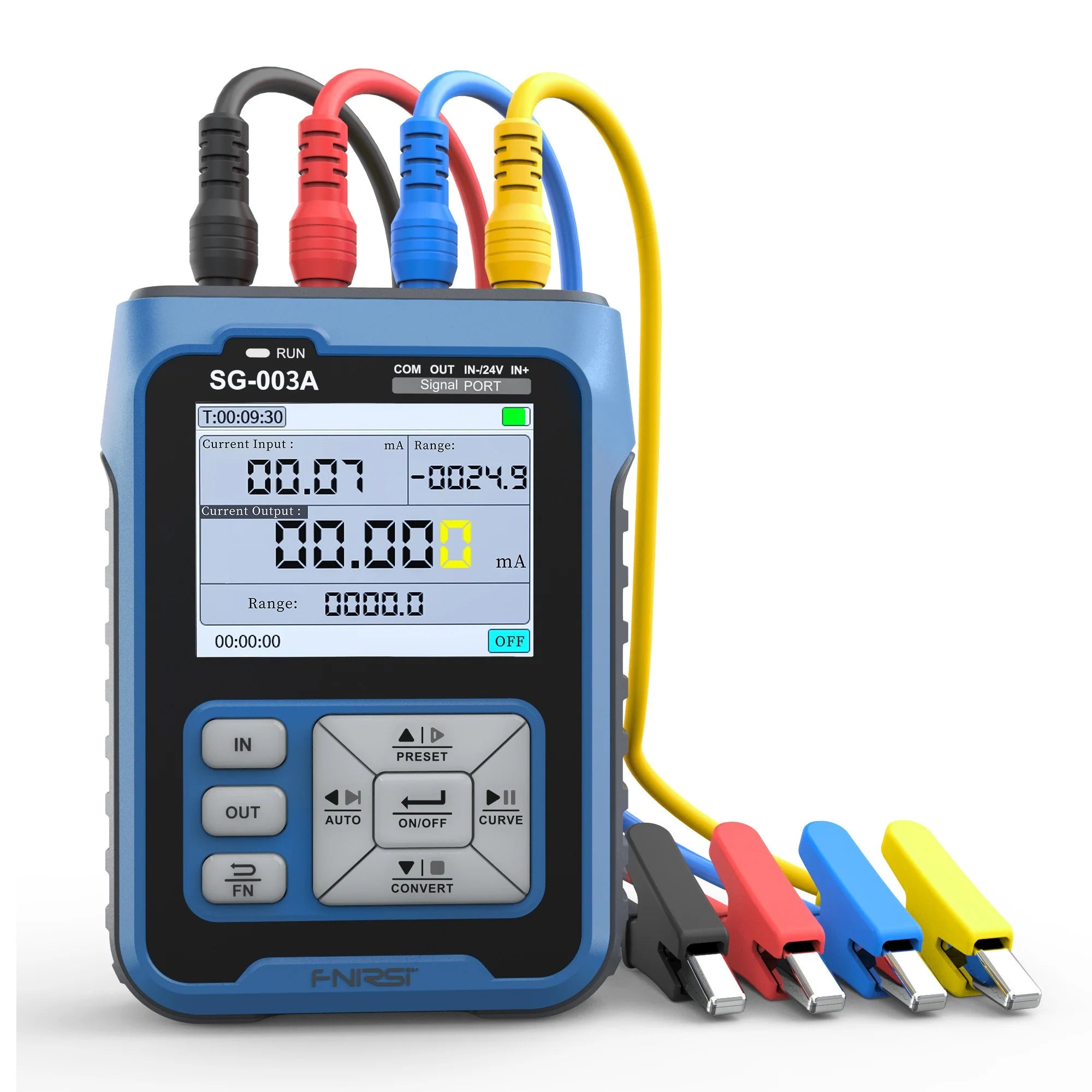

✦ Multiple Port Signal Generator: The Blue (IN-) is an alternate and it is also an input port that can be switched to a 24V test power supply. Red(OUT) and black(COM) form an output port. Yellow(IN+) and Blue(IN-) form the input port.

✦ Preset Value & Output: FNIRSI SG-003A supports 4 groups of signal values can be preset and the output function of continuously changing the size according to the setting parameters, and can select three modes: monotonous rise, fall and cycle.
