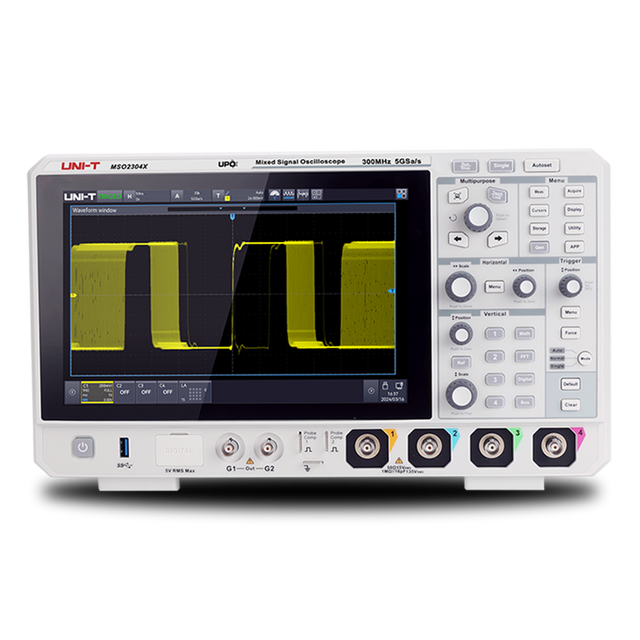

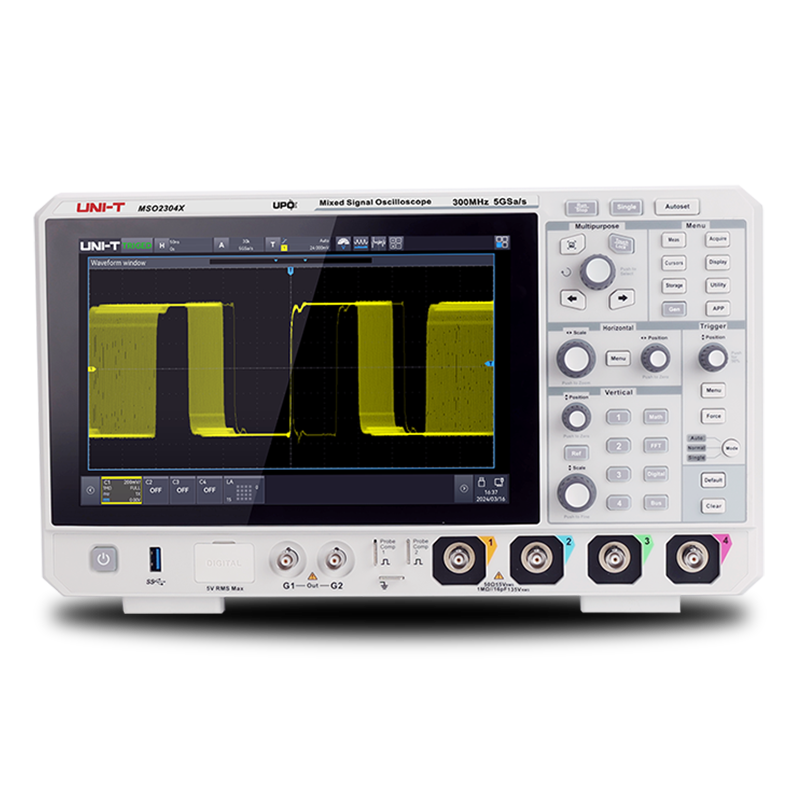

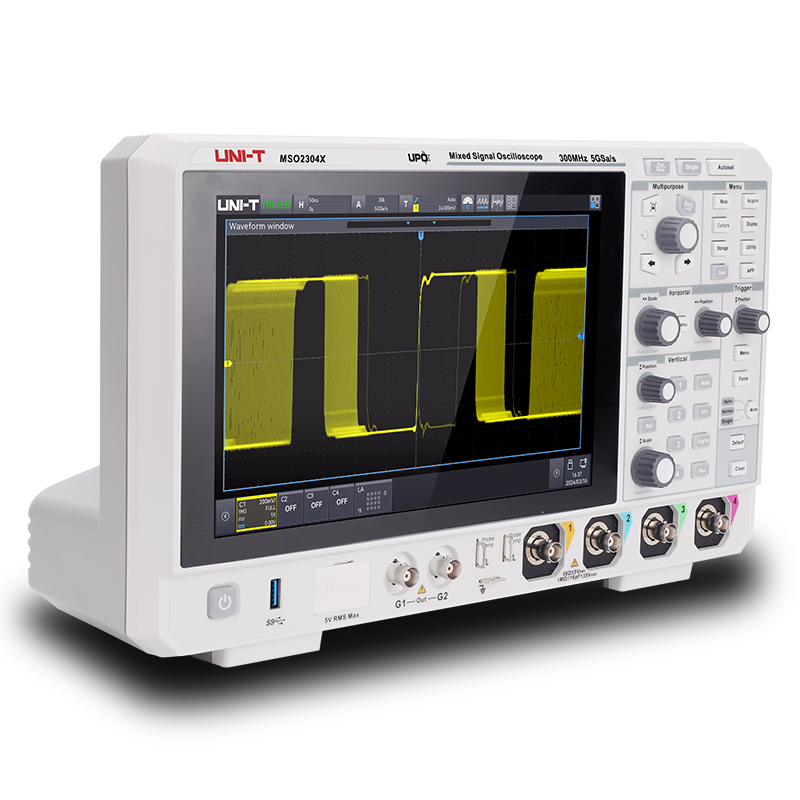

UNI-T MSO2304X Mixed Signal Oscilloscope

Key Features:

  • Bandwidth: 300 MHz analog bandwidth
  • Channels: 4 analog + 16 digital channels
  • Sampling Rate: Up to 5 GSa/s real-time sampling
  • Memory Depth: 100 Mpts for deep and accurate waveform capture
  • Waveform Capture Rate: Up to 2,000,000 wfms/s for high-speed signal visualization
  • Logic Analyzer: Integrated 16-channel digital logic analyzer for mixed-signal testing
  • Waveform Generator (Optional): Dual-channel, 50 MHz built-in function generator
  • Ideal For: Embedded system development, digital/analog debugging, and high-performance signal analysis
£1,719.14 excl. VAT
£2,062.97 Incl. VAT
Delivery Content
Warranty

Specifications
  • Bandwidth
    300MHz
  • Channel
    4+16
  • Real-Time Sample Rate
    5GSa/s
  • Waveform Capture Rate
    2,000,000wfms/s
  • Max. Memory Depth
    100Mpts
  • Waveform Generator
    50MHz Dual Channels(optional)

Description

  • Analog Channel Bandwidth: 300 MHz
  • Analog Channels: 4
  • Digital Channels: 16 (optional, requires UT-M15 logic probe)
  • Real-Time Sample Rate: 5 GSa/s (analog), 1.25 GSa/s (digital)
  • Maximum Memory Depth: 100 Mpts
  • Waveform Capture Rate: Up to 2,000,000 wfms/s (sequence mode), 500,000 wfms/s (normal mode)
  • Integrated 9-in-1 Instrument Functions: Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator (optional), Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer (optional)
  • Optional Dual-Channel Function/Arbitrary Waveform Generator: 50 MHz bandwidth, supports real-time arbitrary waveform output from screen data and includes a library of built-in signals
  • Bode Plot Analysis: Enables frequency response and stability testing of control loops
  • Waveform Recording: Up to 125,000 frames of uninterrupted real-time waveform recording with USB export support
  • Enhanced FFT: 4 Mpts FFT with support for frequency settings, waterfall view, detection settings, and marker tracking
  • Parameter Measurement: 54 auto measurements with histogram and line graph visualization
  • Hardware Frequency Counter: Multi-channel 7-digit resolution with adjustable refresh time and digit accuracy
  • Digital Voltmeter (DVM): 4-digit resolution for DC, AC RMS, and DC+AC RMS measurements
  • Trigger Types: Edge, pulse width, ramp, runt, over-amplitude, delay, timeout, duration, setup & hold, Nth edge, and code pattern
  • Protocol Trigger & Decode: Included protocols – RS232/UART, I2C, SPI; Optional protocols – CAN, CAN-FD, LIN, FlexRay, AUDIO, SENT
  • Zone Triggering: Facilitates efficient capture of rare or complex signals for deep analysis
  • Display Technology: Ultra Phosphor 3.0 rendering engine with 256 grayscale levels
  • Touchscreen: 10.1-inch HD (1280×800) capacitive multi-touch screen supporting gestures like click, slide, zoom, edit, and drag

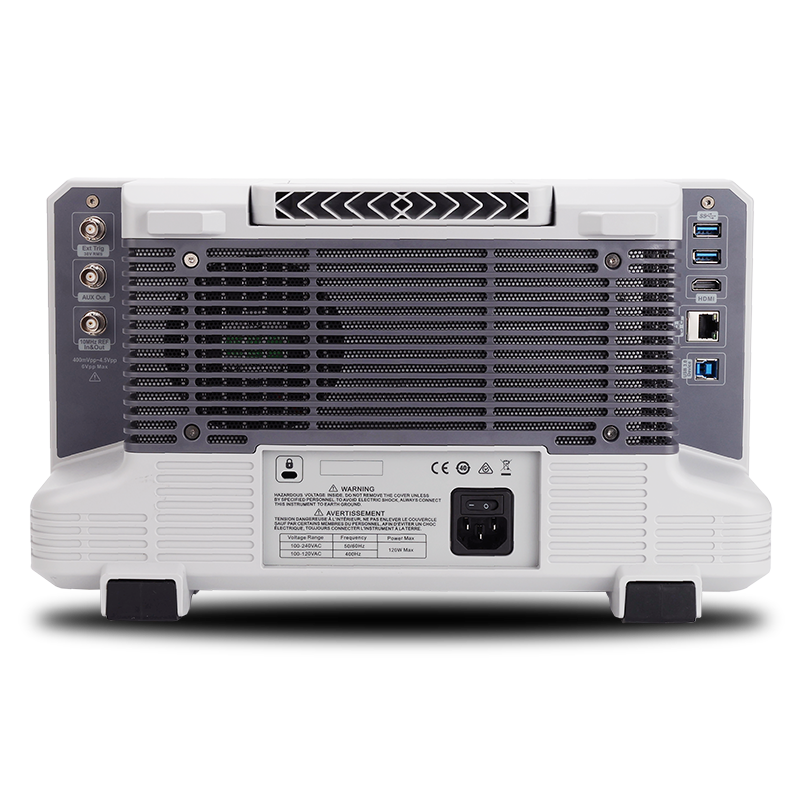

  • Interfaces: USB 3.0 Host, USB 3.0 Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
  • Programmability: SCPI (Standard Commands for Programmable Instruments) compatible
  • Remote Access: Built-in WebServer for browser-based instrument control via PC or mobile devices, cross-platform compatible
