UNI-T MSO3000HD-LIN

  • UNI‑T MSO3000HD‑LIN Automotive Serial Bus Trigger & Analysis Option
  • Enables LIN (Local Interconnect Network) bus triggering and real-time decoding on MSO3000HD series oscilloscopes
  • Supports decoding of LIN frames including master/slave IDs, data bytes, checksum validation, and error detection
  • Offers advanced trigger options based on ID match, specific data patterns, checksum failures, or bus activity

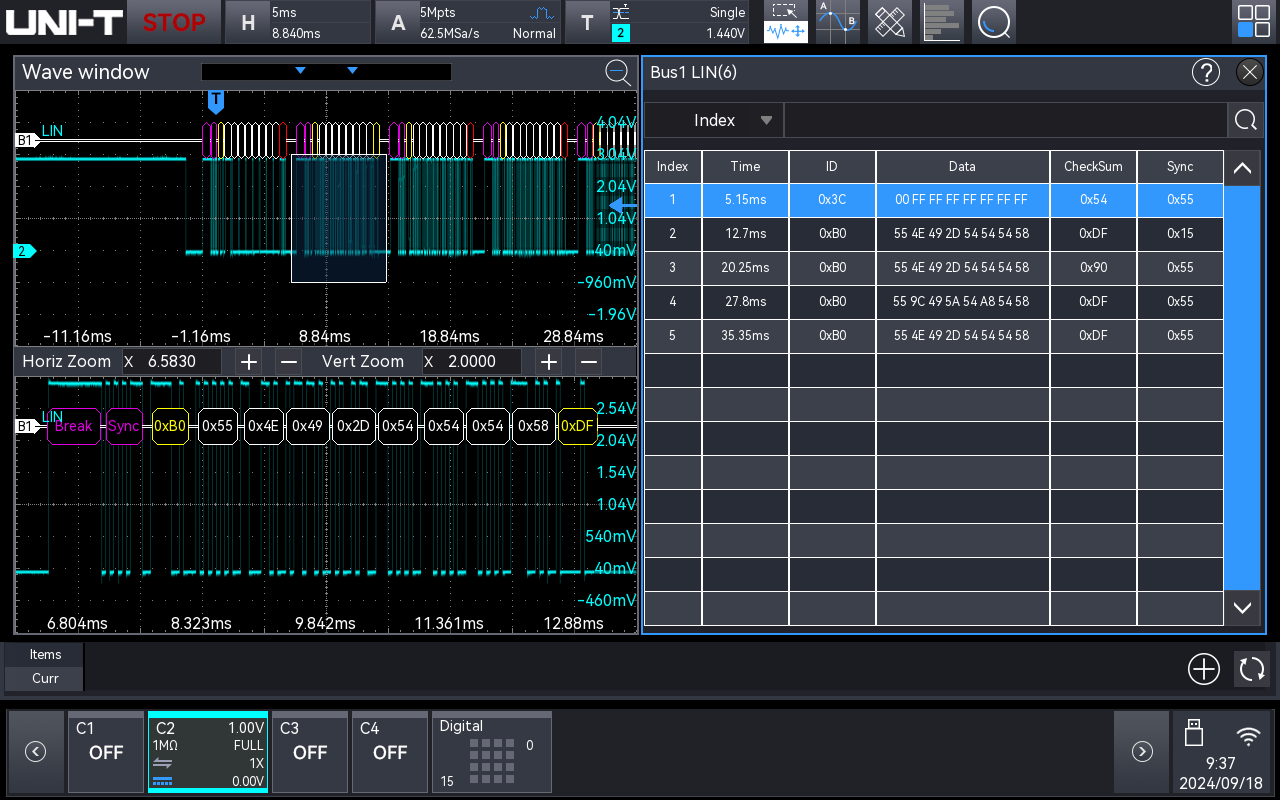

  • Displays time-aligned analog waveforms alongside decoded LIN traffic for precise timing and signal correlation
  • Ideal for vehicle ECU diagnostics, in-vehicle network troubleshooting, and embedded system validation
  • Integrates seamlessly with MSO3000HD firmware, UI, and probe ecosystem for efficient mixed-signal analysis
£259.00 excl. VAT
£310.80 Incl. VAT
