UNI-T MSO3000X-LIN

UNI‑T MSO3000X‑LIN Automotive Serial Bus Trigger & Analysis Option
Enables LIN (Local Interconnect Network) bus triggering and real-time decoding on MSO3000X series oscilloscopes
Supports decoding of LIN frames including slave/master IDs, data bytes, checksum validation, and error detection
Offers advanced trigger conditions based on ID matching, specific data patterns, checksum failures, or bus activity

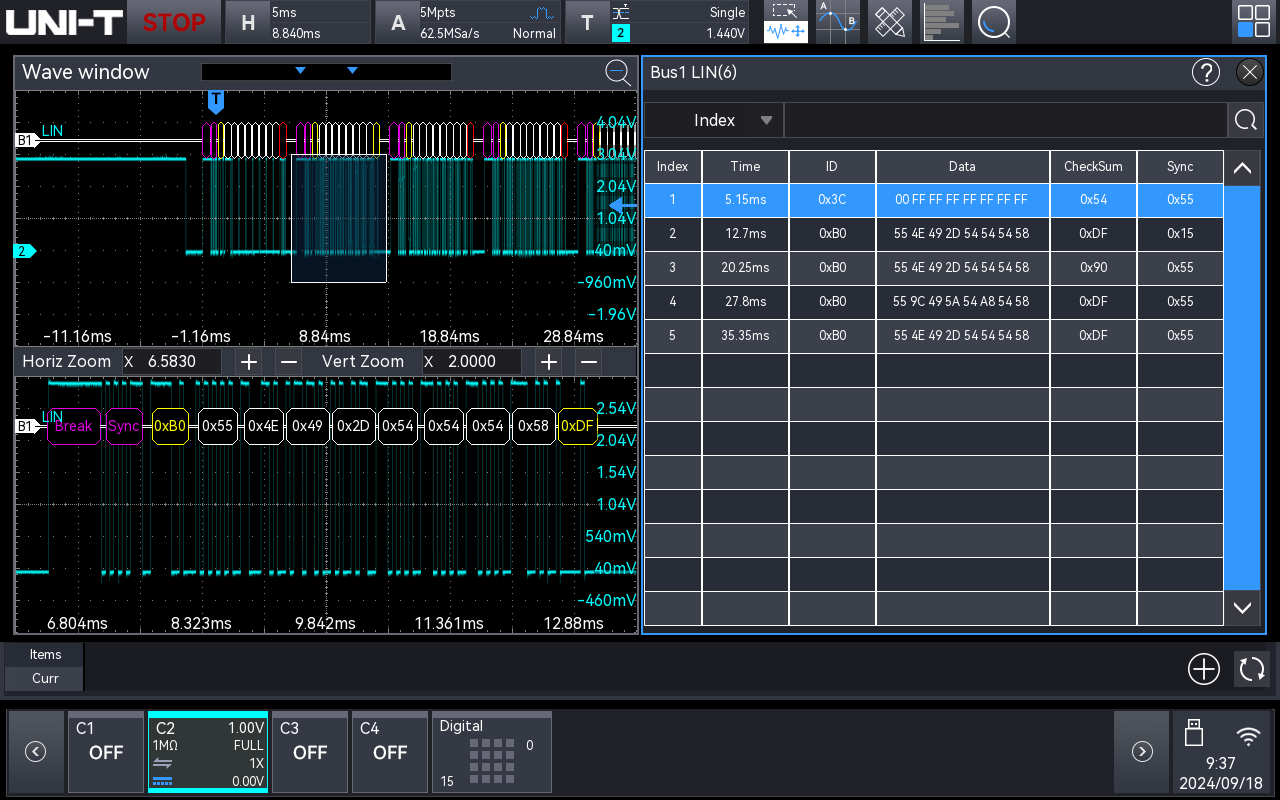

Displays time-aligned analog waveforms alongside decoded LIN traffic for precise timing and protocol correlation
Ideal for vehicle ECU validation, in-vehicle communication diagnostics, and embedded system development
Integrates seamlessly with MSO3000X firmware, user interface, and probe system for efficient mixed-signal analysis

£258.00 excl. VAT

£309.60 Incl. VAT

UNI-T MSO3000X-LIN

£258.00 excl. VAT

£309.60 Incl. VAT
