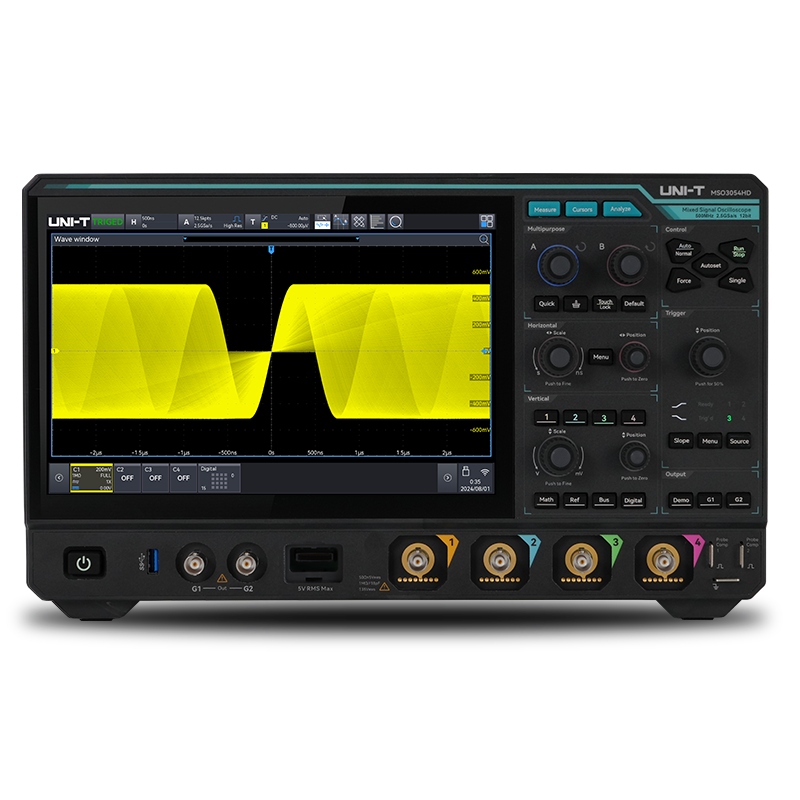

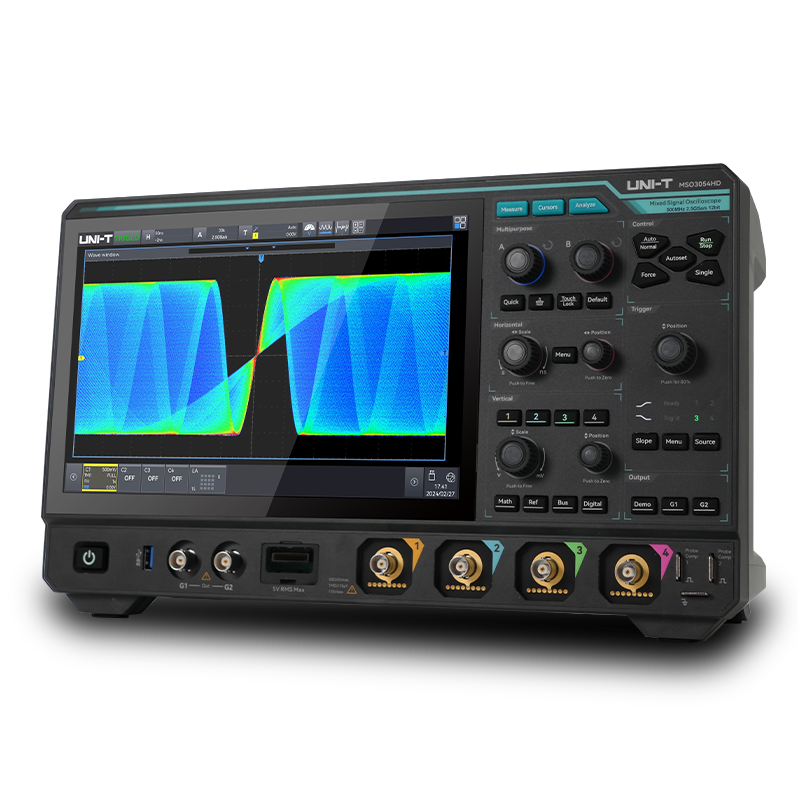

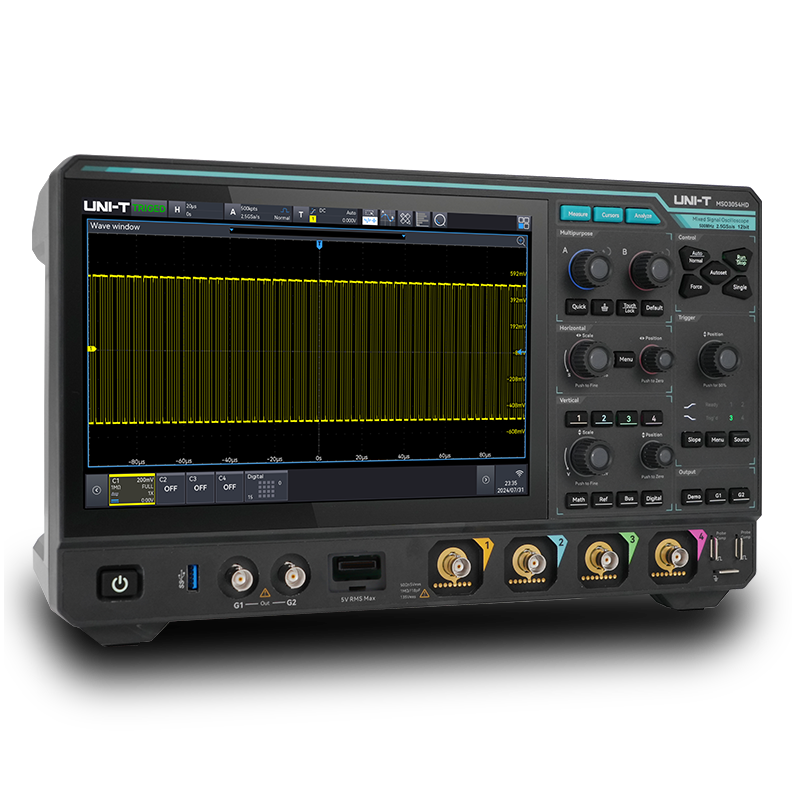

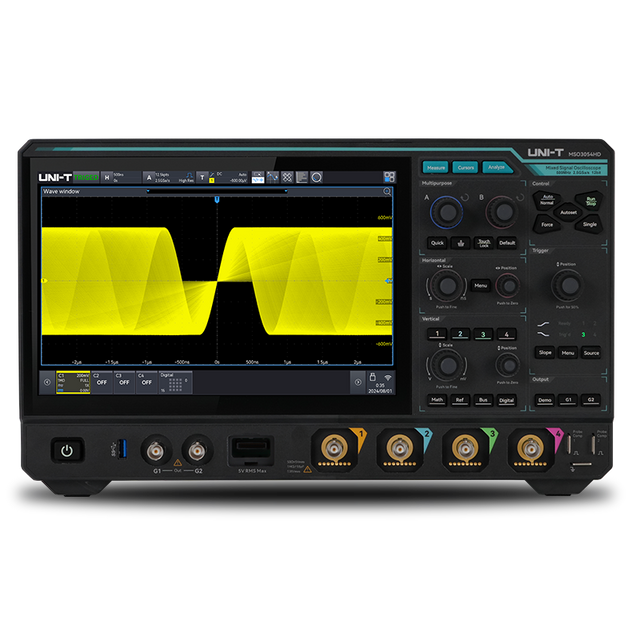

UNI-T MSO3024HD High-Resolution Oscilloscope

Key Features:

  • Bandwidth: 200 MHz analog bandwidth
  • Channels: 4 analog + 16 digital channels
  • Sampling Rate: Up to 2.5 GSa/s real-time sampling
  • Memory Depth: 500 Mpts for ultra-long signal capture
  • Waveform Capture Rate: Up to 1,500,000 wfms/s for high-speed acquisition
  • Logic Analyzer: Integrated 16-channel digital logic analyzer for comprehensive mixed-signal analysis
  • Ideal For: Embedded development, signal integrity testing, and advanced debugging
£2,063.14 excl. VAT
£2,475.77 Incl. VAT

Variants

Buttons

Delivery Content
Warranty

Specifications
  • Bandwidth
    200 MHz
  • Channel
    4
  • Real-Time Sample Rate
    2.5 GSa/s
  • Waveform Capture Rate
    1,500,000 wfms/s
  • Max. Memory Depth
    500 Mpts
  • Waveform Generator
    -

Description

  • Analog Channel Bandwidth: 200 MHz
  • Analog Channels: 4
  • Digital Channels: 16
  • Real-Time Sample Rate: 2.5 GSa/s (analog), 1.25 GSa/s (digital)
  • Vertical Resolution: 12-bit with up to 4096 quantization levels for detailed waveform clarity
  • Maximum Memory Depth: 500 Mpts
  • Waveform Capture Rate: Up to 1,500,000 wfms/s (sequence mode), 500,000 wfms/s (normal mode)
  • Integrated 9-in-1 Instrument Functions: Digital Oscilloscope, Logic Analyzer, Function/Arbitrary Waveform Generator, Spectrum Analyzer, Digital Voltmeter, Frequency Counter, Protocol Analyzer, Bode Plot Analyzer, and Power Analyzer
  • Dual-Channel Arbitrary Waveform Generator: 50 MHz bandwidth, supports real-time arbitrary waveform output based on oscilloscope screen data and includes multiple built-in signals
  • Bode Plot Analysis: Facilitates control loop stability testing and frequency response visualization
  • Waveform Recording: Up to 125,000 continuous frames with hardware real-time recording and USB export support
  • Enhanced FFT: Up to 4M-point FFT with support for waterfall curve, frequency markers, and detection settings
  • Enhanced Resolution (ERES): Supports up to 4-bit enhancement for high-detail waveform display
  • Parameter Measurements: 56 automatic parameters, with bar chart and line chart display options
  • Display Modes: Multi-window view for channel comparison and analysis
  • Frequency Counter: 7-digit hardware counter with adjustable refresh time and resolution
  • Digital Voltmeter (DVM): RMS measurement for DC, AC, and DC+AC modes
  • Trigger Types: Edge, pulse width, video, ramp, runt, over-amplitude, delay, timeout, duration, setup & hold, Nth edge, code pattern
  • Protocol Trigger & Decode: Includes RS232/UART, I2C, SPI, CAN, CAN-FD, LIN, FlexRay, AUDIO, MIL-STD-1553B, Manchester, SENT, ARINC429
  • Zone Triggering: Efficiently captures complex or intermittent signals
  • Display: Ultra Phosphor 3.0 engine with 256-level grayscale rendering
  • Touchscreen: 10.1-inch HD (1280×800) capacitive multi-touch screen with gesture support (click, zoom, slide, drag)

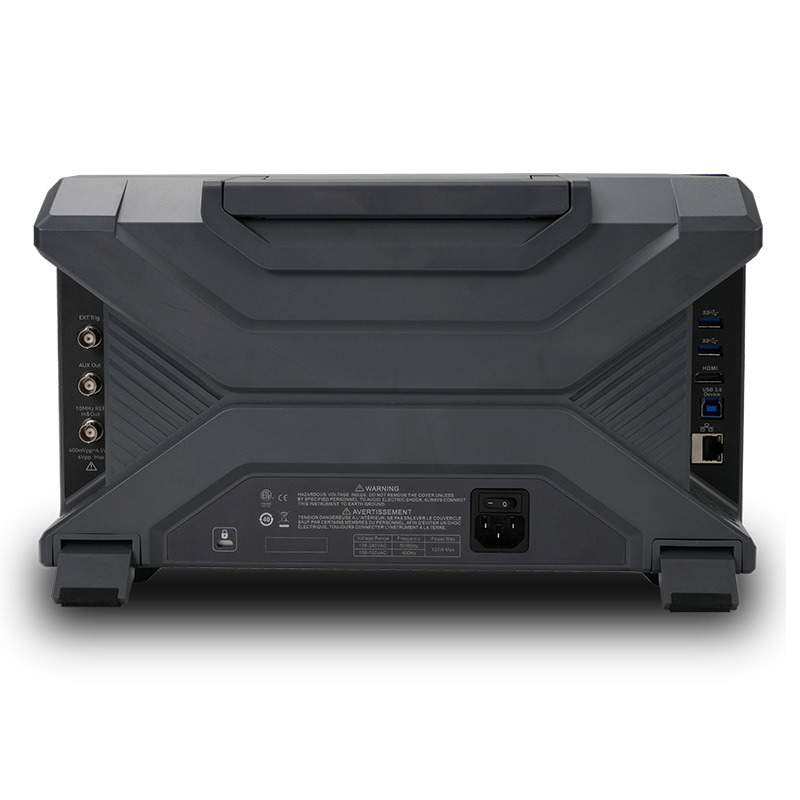

  • Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), Gen Out, HDMI
  • Programmability: SCPI (Standard Commands for Programmable Instruments) compliant
  • Remote Access: Built-in WebServer allows browser-based control from PC or mobile, cross-platform compatible
  • Firmware: Supports online updates for continuous functionality enhancements
