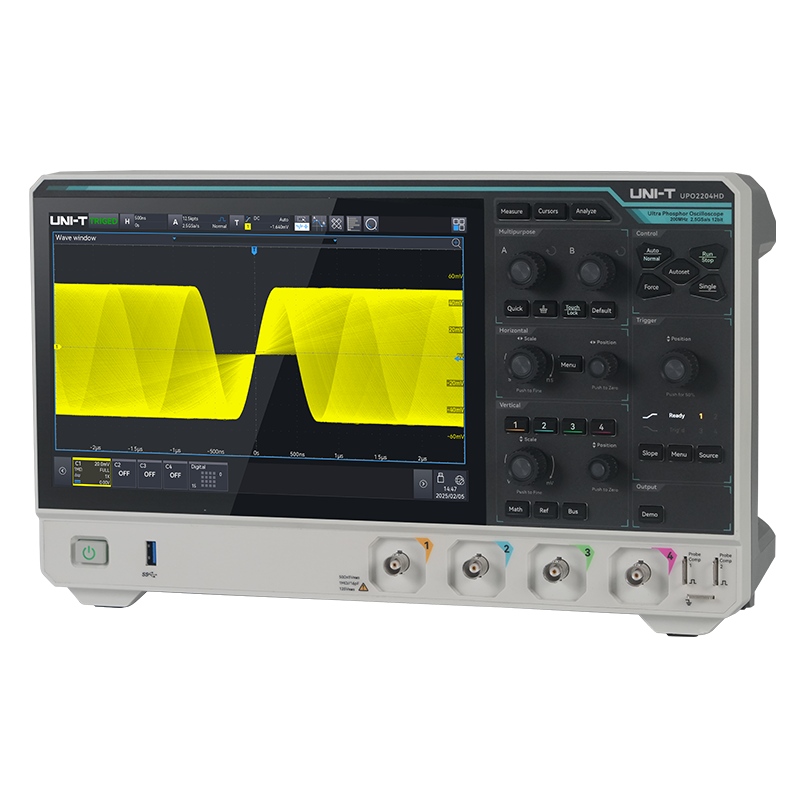

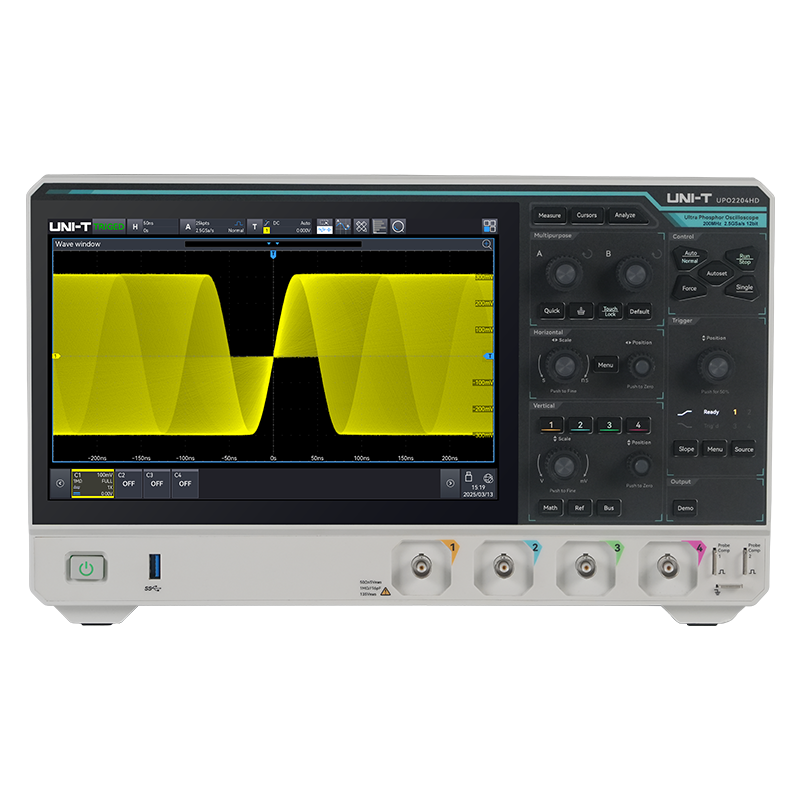

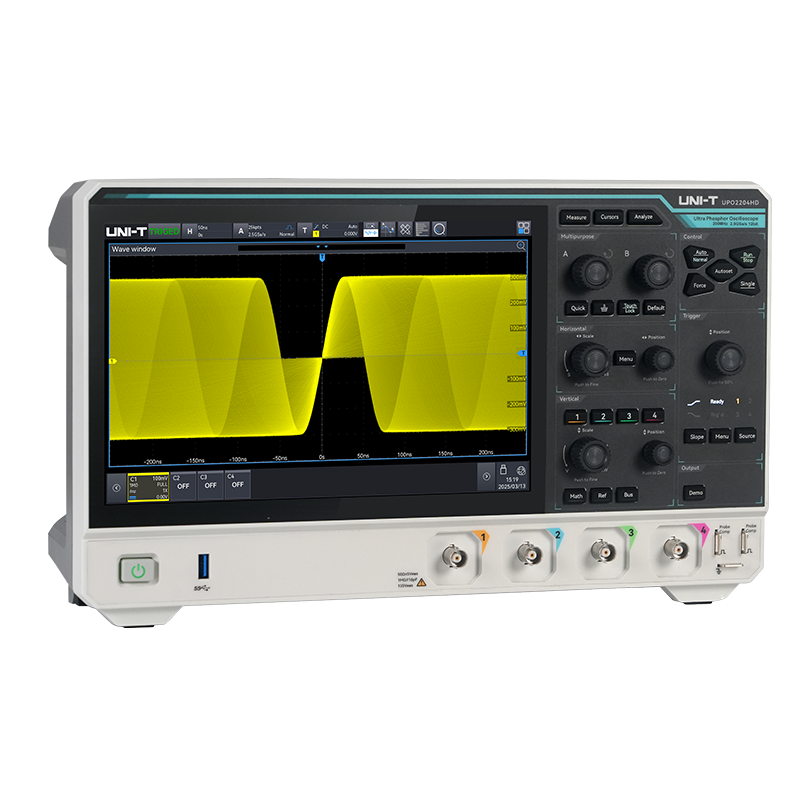

UNI-T UPO2074HD High-Resolution Oscilloscope
Key Features:
- Bandwidth: 70 MHz analog bandwidth
- Channels: 4 analog channels for multi-signal analysis
- Sampling Rate: Up to 2.5 GSa/s real-time sampling
- Memory Depth: 100 Mpts deep memory for detailed waveform capture
- Waveform Capture Rate: Up to 1,000,000 wfms/s for detecting rare signal events
- Resolution: 12-bit high-resolution for improved signal clarity
- Ideal For: Electronics debugging, embedded development, and laboratory applications.
Variants
Variants
Couldn't load pickup availability
5-Year Warranty Coverage
Enjoy peace of mind with a 3-Year Standard Warranty, plus receive an additional 2 years when you register your product on our website.
👉 Register now at: Product Registration
Specifications
Specifications
-
Bandwidth70 MHz
-
Channel4
-
Real-Time Sample Rate2.5 GSa/s
-
Waveform Capture Rate1,000,000 wfms/s
-
Max. Memory Depth100 Mpts
-
Waveform Generator-
Description
- 70 MHz analog bandwidth
- 4 analog channels for multi-signal analysis
- Up to 2.5 GSa/s real-time sampling rate
- 12-bit vertical resolution with up to 4096 quantization levels for clear waveform details
- Up to 100 Mpts memory depth for long-duration waveform capture
- Maximum waveform capture rate up to 1,000,000 wfms/s in sequence mode
- 6-in-1 instrument functions: high-resolution oscilloscope, spectrum analyzer, digital voltmeter, frequency meter, protocol analyzer, and power analysis
- Enhanced FFT up to 4M points with spectrum analyzer functions such as frequency setting, waterfall display, detection settings, and markers
- Supports ERES (Enhanced Resolution) up to 4-bit
- 56 types of automatic parameter measurements with histogram and line graph display
- Hardware real-time waveform recording up to 125,000 frames with USB export support
- Multi-window display for simultaneous waveform and analysis views
- Multi-channel 7-digit hardware frequency counter with adjustable refresh time
- DVM multi-channel RMS measurement: DC, AC RMS, and DC+AC RMS
- Advanced trigger modes including edge, pulse width, video, ramp, runt pulse, delay, timeout, setup & hold, Nth edge, and code pattern
- Protocol triggering and decoding: RS232/UART, I²C, SPI, CAN, CAN-FD, LIN, FlexRay, AUDIO, and SENT
- Zone trigger for capturing sporadic signals and complex waveform events
- Ultra Phosphor 3.0 display technology with up to 256 levels of gray
- 10.1-inch 1280×800 HD capacitive multi-touch screen with gesture control
- Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out / Pass-Fail), HDMI
- Supports SCPI remote commands for automation and integration
- Built-in WebServer for browser-based remote access from PC or mobile devices
- Supports online firmware updates
