Specifications
Specifications
-
Bandwidth100MHz
-
Channel2
-
Real-Time Sample Rate2 GSa/s
-
Waveform Capture Rate80,000 wfms/s
-
Max. Memory Depth56 Mpts
-
Waveform Generator-
Description
- Analog Bandwidth: 100 MHz
- Analog Channels: 2
- Real-Time Sampling Rate: 2 GSa/s
- Memory Depth: 56 Mpts per channel
- Waveform Capture Rate: Up to 1,000,000 wfms/s
- Function Generator: Not included (AWG available only in MSO-S models)
- Waveform Recording: Real-time uninterrupted recording and analysis up to 120,000 frames
- Math Functions: Supports addition, subtraction, multiplication, division, digital filtering, logic, and advanced operations
- FFT Analysis: 4Mpts enhanced FFT with spectrum view, frequency setting, waterfall diagram, and marker support
- Parameter Measurements: 36 automatic waveform parameters
- Scan Measurement: Supports parameter measurement during scanning
- Multi-Scopes Mode: Multi-channel independent triggering and fluorescent display
- Frequency Counter: Multi-channel 7-digit hardware frequency counter
- DVM Function: True RMS measurements for DC, AC, and DC+AC
- Trigger Types: Edge, Pulse, Video, Slope, Runt, Over Amplitude, Delay, Timeout, Duration, Setup/Hold, Nth Edge, Pattern
- Zone Triggering: Captures infrequent or complex signals efficiently
- Protocol Decoding (Optional): RS232, I2C, SPI, CAN, CAN-FD, LIN, FlexRay

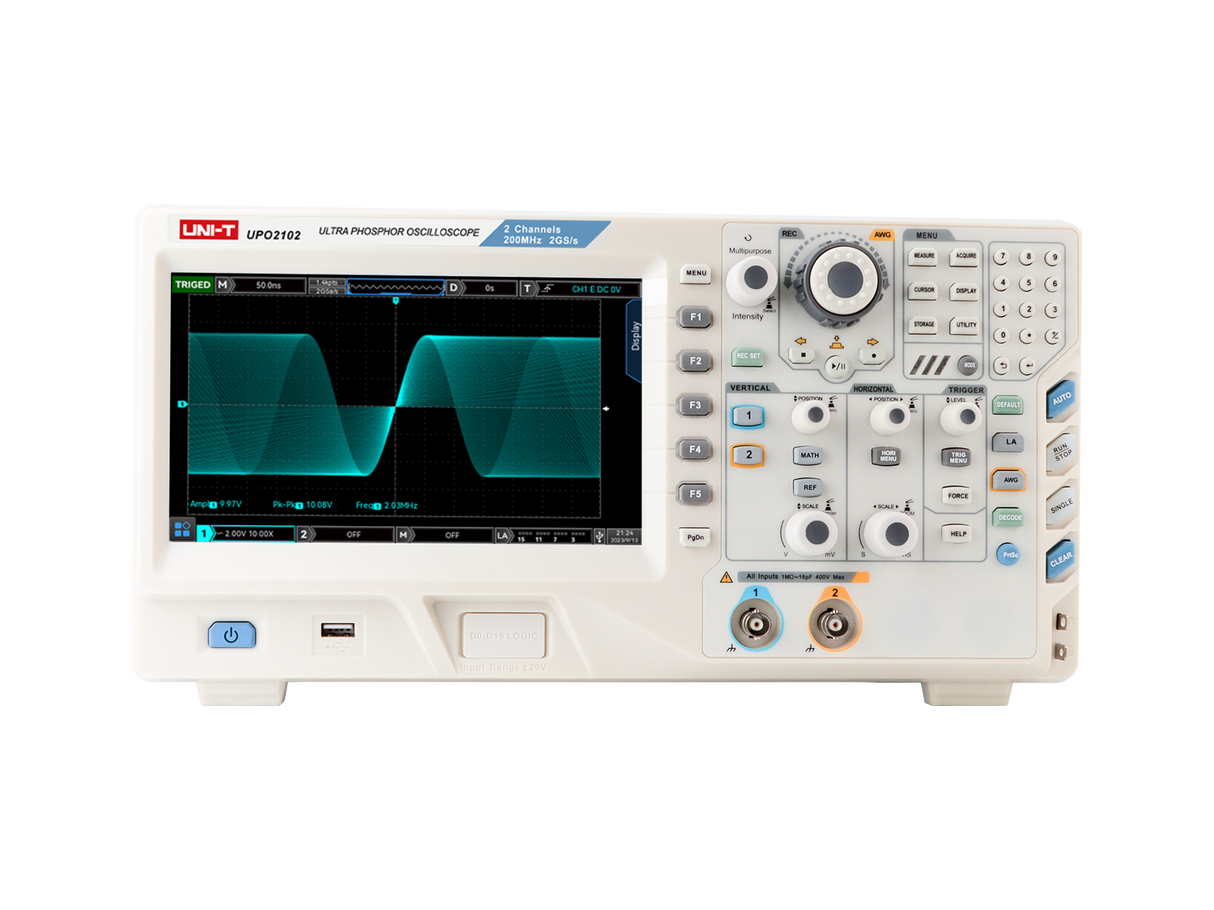

- Display: 8-inch capacitive touch screen (800×480) with gesture support (click, slide, zoom, edit, drag)
- Display Technology: Ultra Phosphor with up to 256 grayscale intensity levels

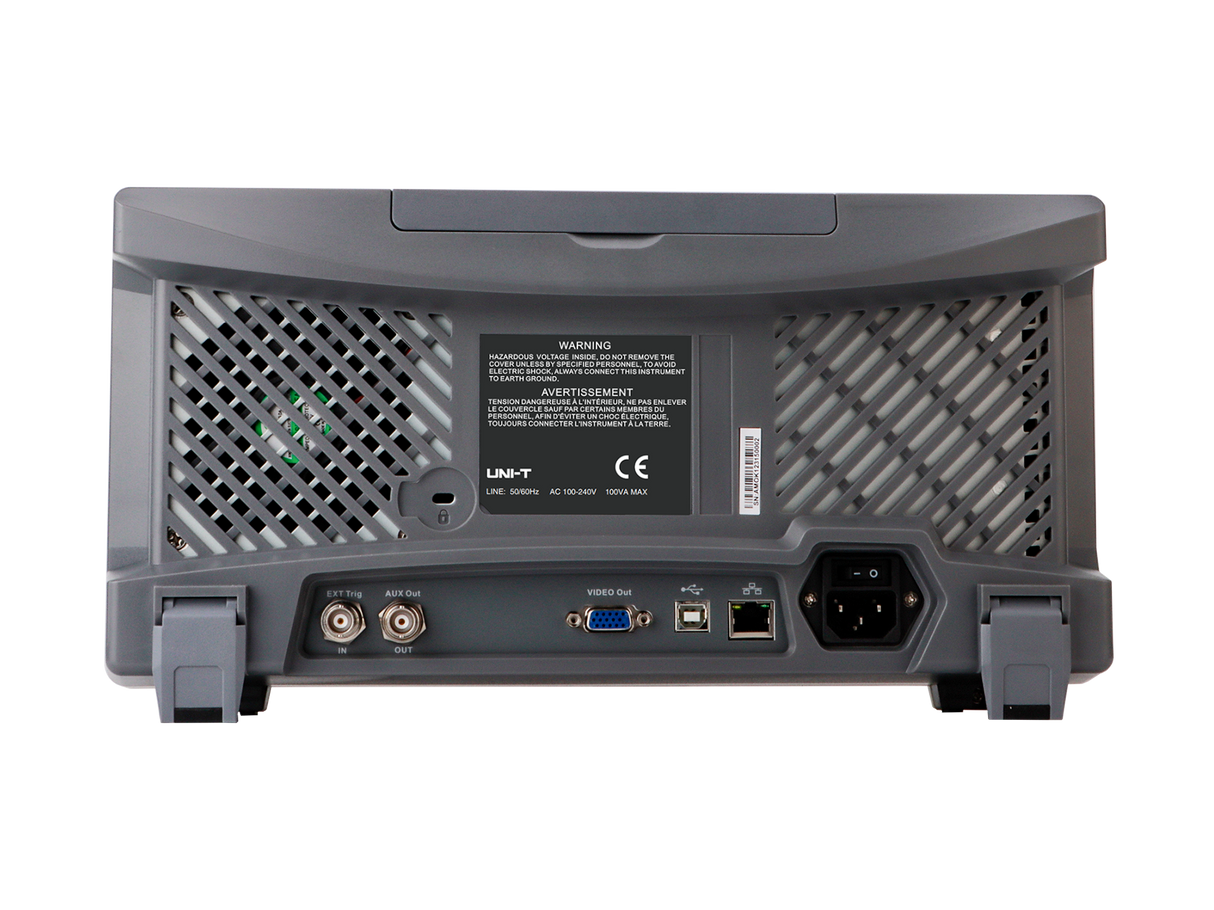

- Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail), VGA
- SCPI Support: Compatible with standard SCPI command sets for automation
- Remote Control: Supports web-based remote access and control
Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£551.00
excl. VAT
Unit price
/
Unavailable
£661.20
Incl. VAT
|
£636.00
excl. VAT
Unit price
/
Unavailable
£763.20
Incl. VAT
|
£594.00
excl. VAT
Unit price
/
Unavailable
£712.80
Incl. VAT
|
£679.00
excl. VAT
Unit price
/
Unavailable
£814.80
Incl. VAT
|
| Bandwidth | ||||
| Bandwidth | 100MHz
| 100MHz
| 200MHz
| 200MHz
|
| Channel | ||||
| Channel | 2
| 4
| 2
| 4
|
| Max. Memory Depth | ||||
| Max. Memory Depth | 56 Mpts
| 56Mpts
| 56Mpts
| 56Mpts
|
| Real-Time Sample Rate | ||||
| Real-Time Sample Rate | 2 GSa/s
| 2GSa/s
| 2GSa/s
| 2GSa/s
|
| Waveform Capture Rate | ||||
| Waveform Capture Rate | 80,000 wfms/s
| 1.000,000wfms/s
| 1.000,000wfms/s
| 1.000,000wfms/s
|
| Waveform Generator | ||||
| Waveform Generator | - | - | - | - |
