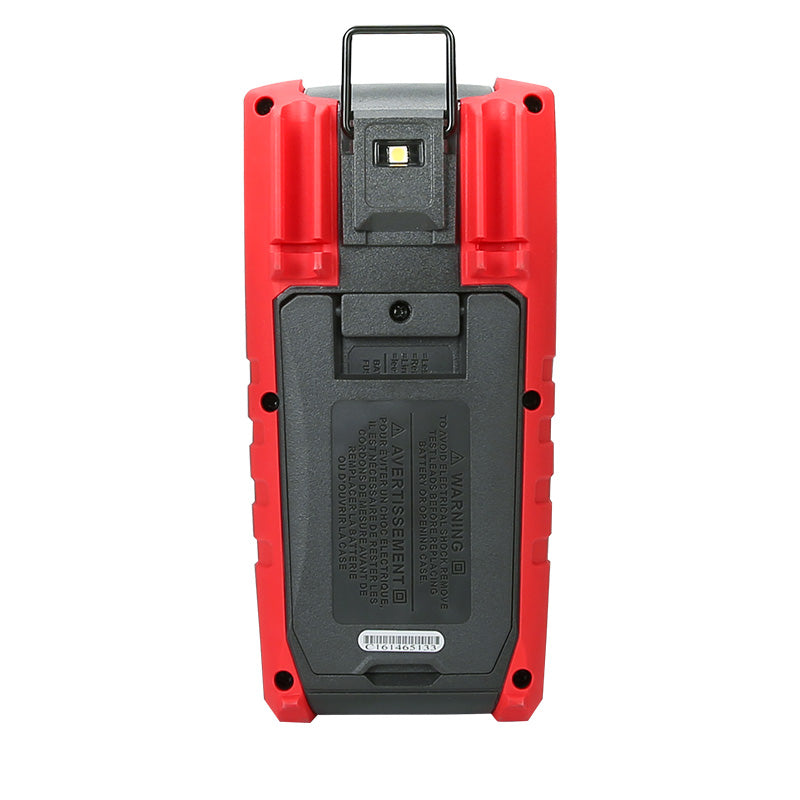

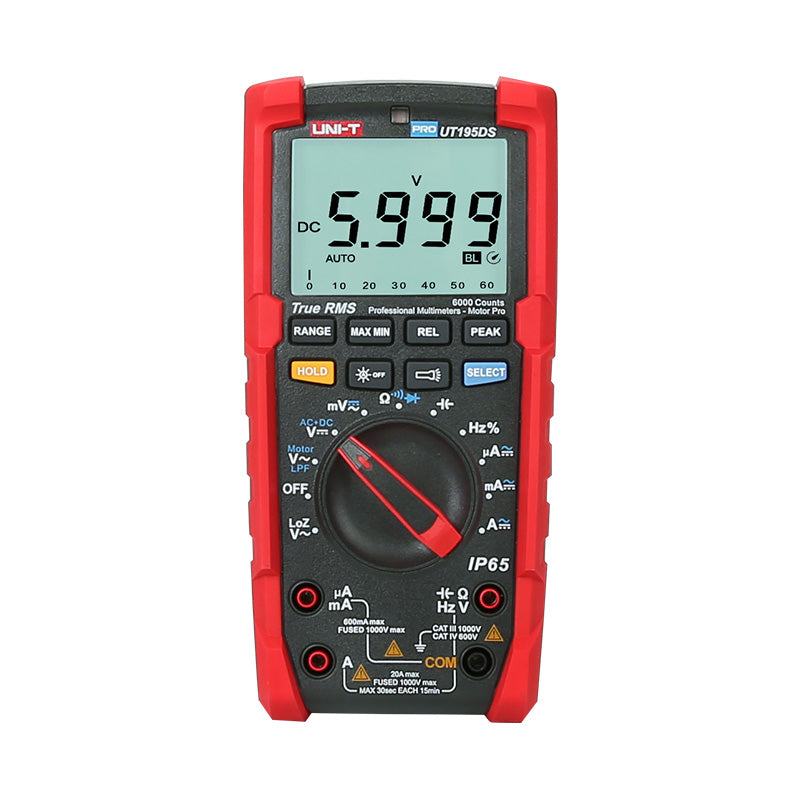

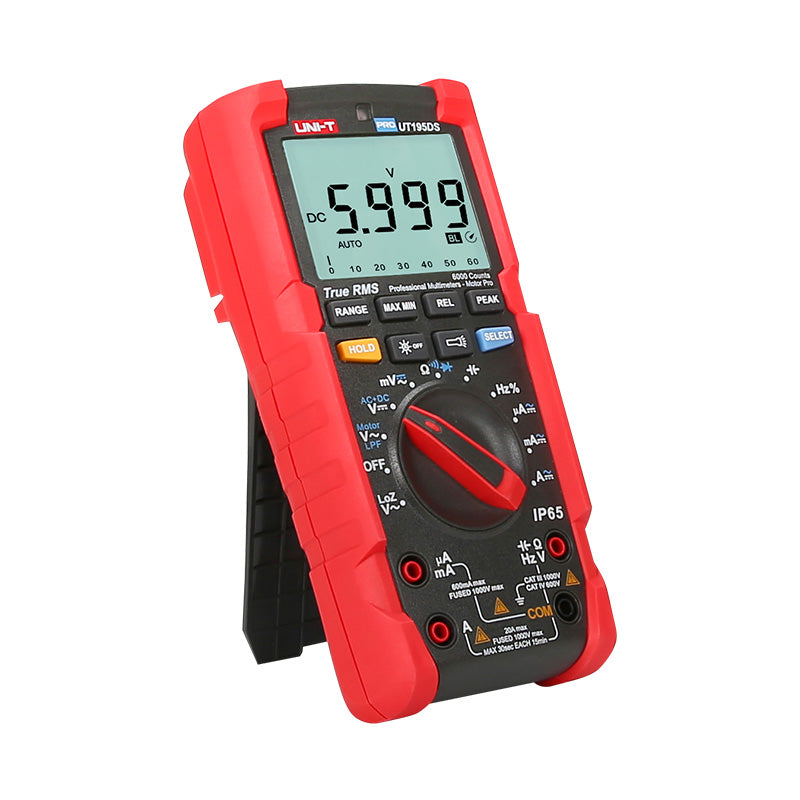

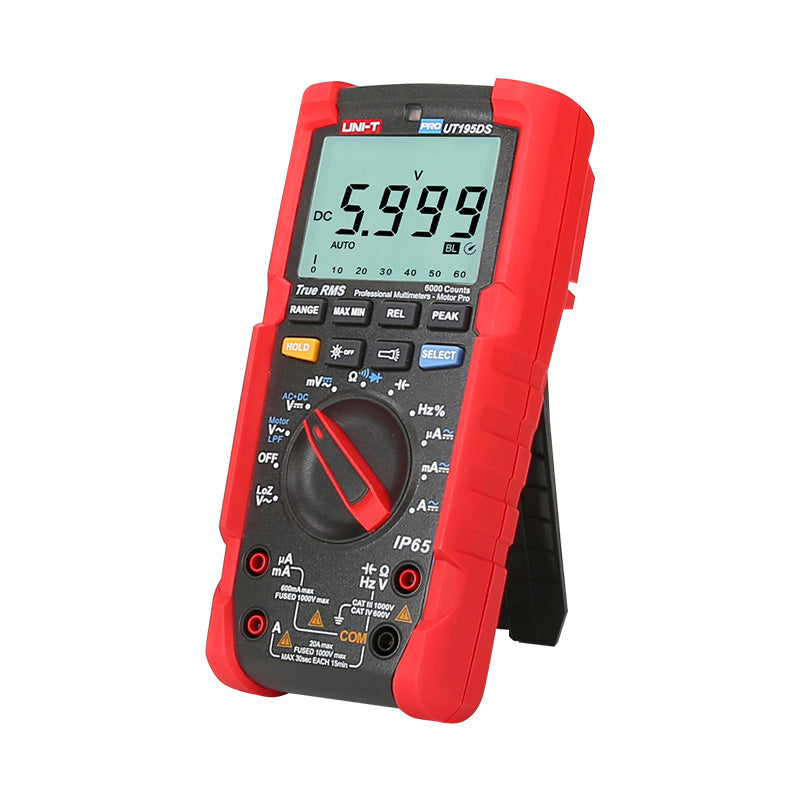

UNI-T UT195DS Professional Digital Multimeter

UNI-T UT195DS Professional Digital Multimeter

The IP65 and 2 meter drop resistant portable industrial digital multimeters of the UT195 series. The UT195 has better troubleshooting capabilities, resolution, and precision than standard multimeters, making it easier to identify problems with motor drive, manufacturing equipment maintenance, electrical distribution, and repair, among other things. It is simple to use and beautifully designed.
Regular price £109.99
Regular price Sale price £109.99
Sale Sold out

Price with tax: £131.99

Shipping calculated at checkout.

Next Day Delivery & Free Shipping in the United Kingdom

Order Before 3:00 PM and we'll ship your package the next business day.

View full details

Collapsible content

Details

Features of UT195 Series Professional Multimeters

  • IP65 rating, 2m drop proof, CAT III 1000V, CAT IV 600V
  • Large 6000-count LCD screen
  • True RMS
  • ACV 750V 5kHz bandwidth
  • Flashlight
  • Auto LCD backlight controlled by light sensor (can be turned off)
  • LoZ voltage test, for ghost voltage measurement
  • 20A current measurement (max 30 seconds)
  • 31 analog bar
  • Certificates: CE, UKCA, GS, cTUVus

specification & comparison


Specifications Range UT195E UT195M UT195DS
DC voltage (V) 1000V ±(0.5%+3) ±(0.5%+3) ±(0.5%+3)
AC+DC 750V ±(0.7%+3) ±(0.7%+3) ±(0.7%+3)
AC voltage (V) 600V     ±(1.5%+4)
LoZ ACV 600V ±(2%+3) ±(2%+3) ±(2%+3)
DC current (A) 20A ±(0.8%+3) ±(0.8%+3) ±(0.8%+3)
AC current (A) 20A ±(1%+3) ±(1%+3) ±(1%+3)
Resistance (Ω) 60MΩ ±(0.8%+2) ±(0.8%+2) ±(0.8%+2)
Capacitance 60mF ±(3%+5) ±(3%+5) ±(3%+5)
Frequency 60Hz~10MHz ±(0.1%+4)
60Hz~40MHz   ±(0.1%+4) ±(0.1%+4)
Duty cycle 0.1%~99.9% ±(2%+5) N/A ±(2%+5)
Temperature (°C) -40°C~1000°C   ±(1.5%+4)
Temperature (°F) -40°F~1832°F   ±(2%+5)
Features
Display count   6000 6000 6000
Display interface (LCD)   Single Single Dual
Measurement sampling rate times/s 3 3 5
Analog bar sampling rate times/s 10   20
Analog bar 31 sections
True RMS
AC voltage frequency response   45~400Hz 45~1kHz 45~5kHz
AC current frequency response   45~400Hz 45~1kHz 45~5kHz
3-phase motor sequence test 600V
Low pass filter 1kHz 3dB attenuation
Diode/Continuity test   3.5V 3V 3V
Peak hold 250μs
Auto/Manual range
Continuity buzzer
Low battery indication
Data hold/Auto power off
MAX/MIN
Function selection
Flashlight/Auto backlight
General Characteristics
Power 9V battery
LCD size 66mm x 51mm
Product color Red and grey
Product net weight 437g
Product size 195mm x 95 mm x 58mm
Standard accessories Test probes, battery, carrying bag, point contact temperature probe (UT195M)
Standard individual packing Gift box, English manual
Standard quantity per carton 6pcs
Standard carton measurement 580mm x 375mm x 215mm
Standard carton gross weight 7.2kg
