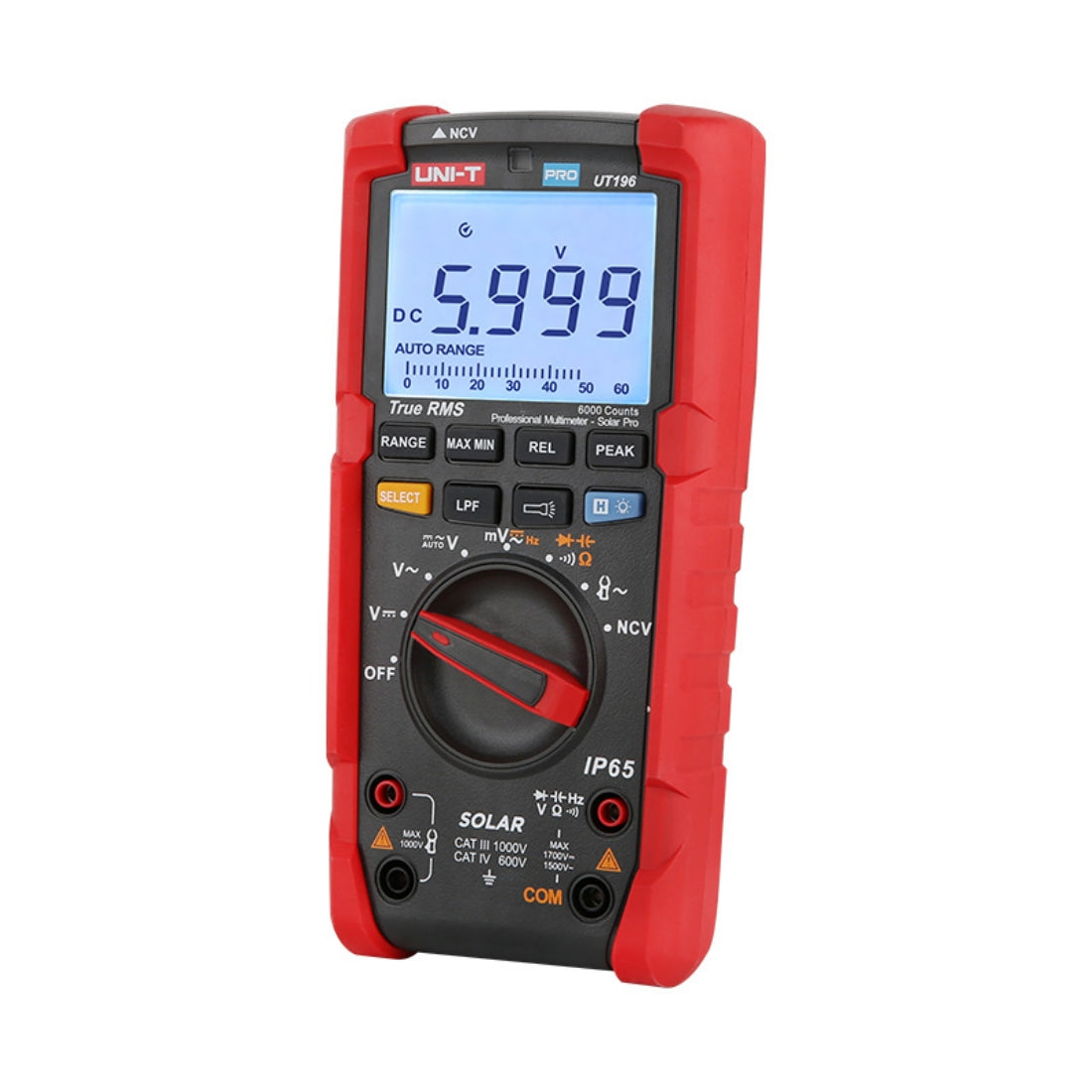

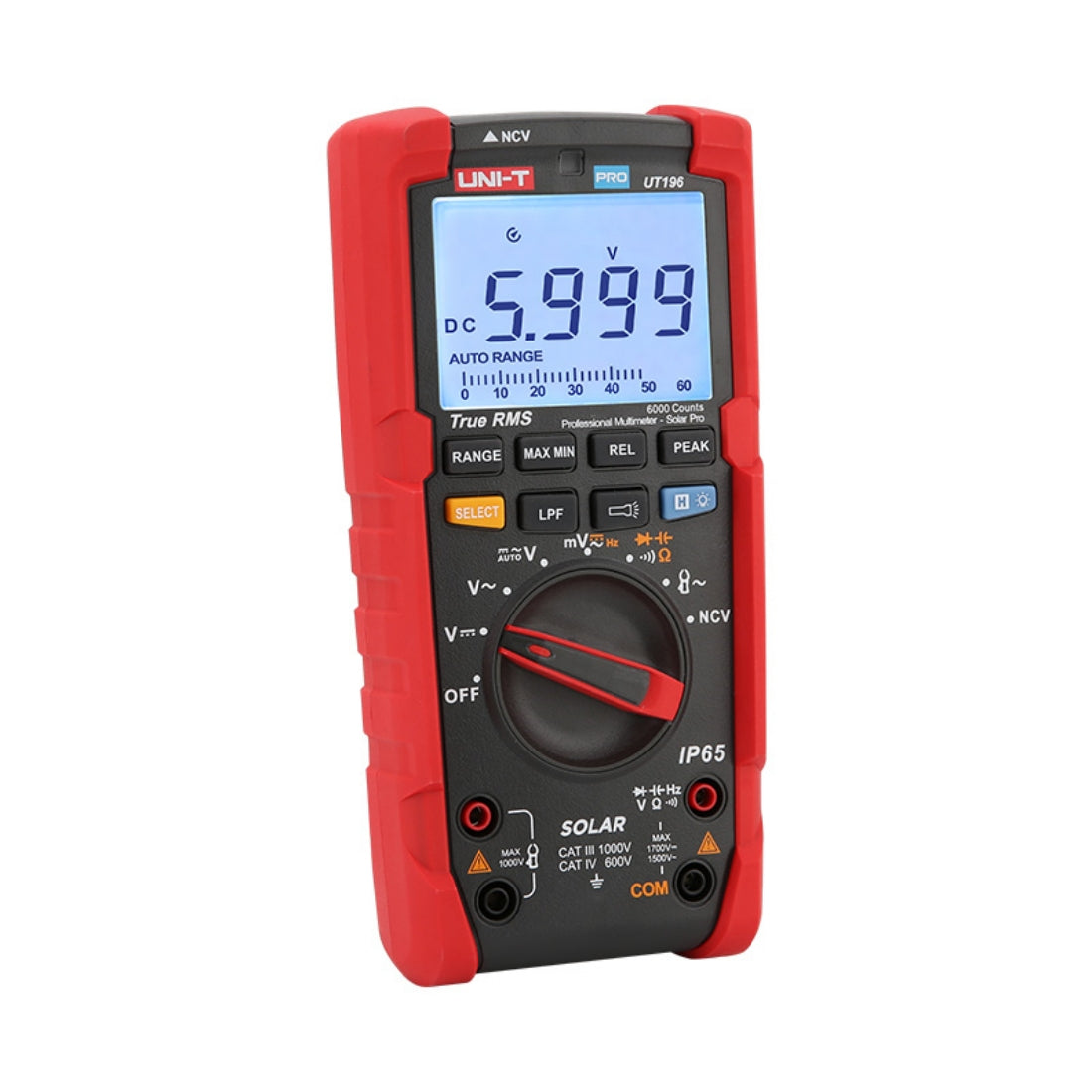

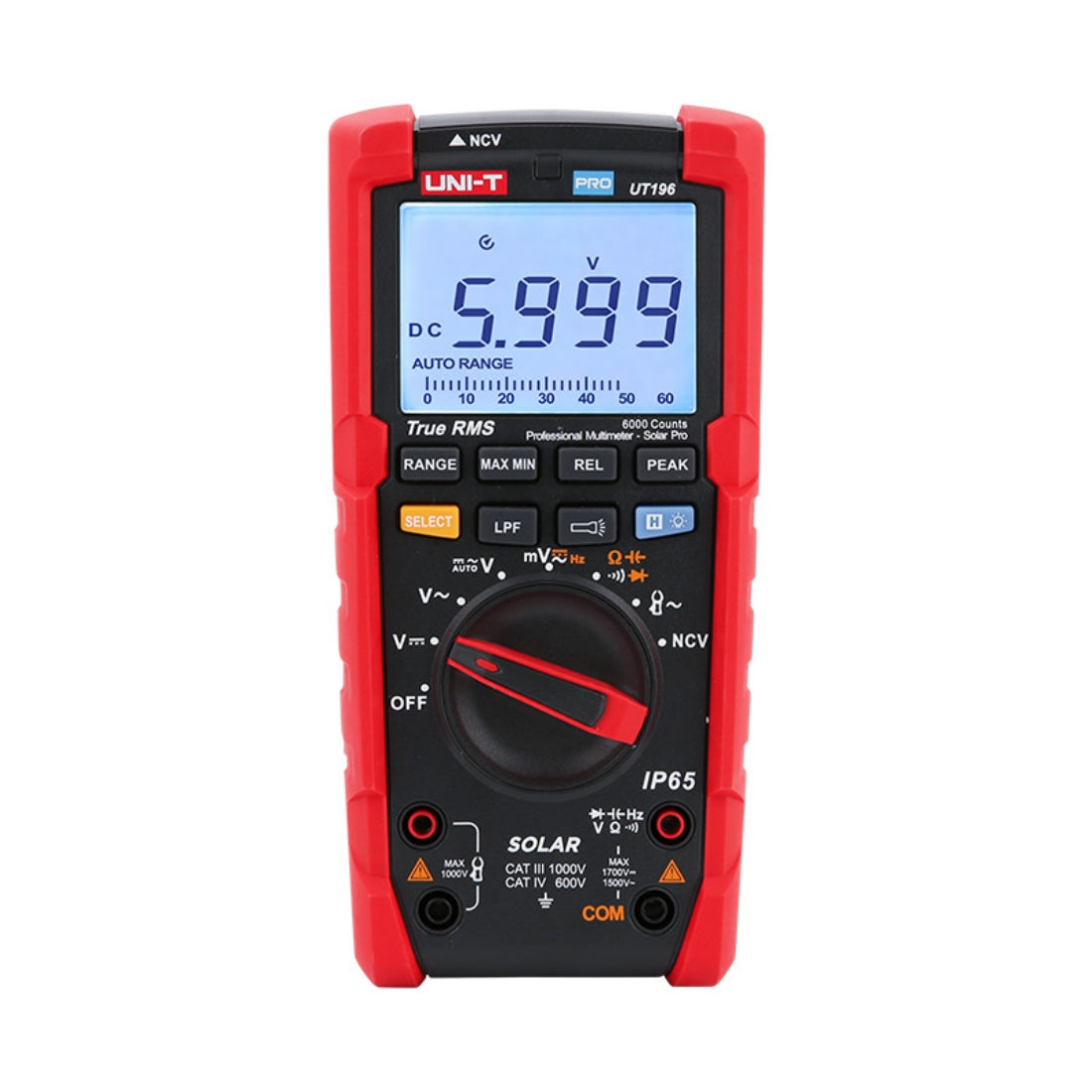

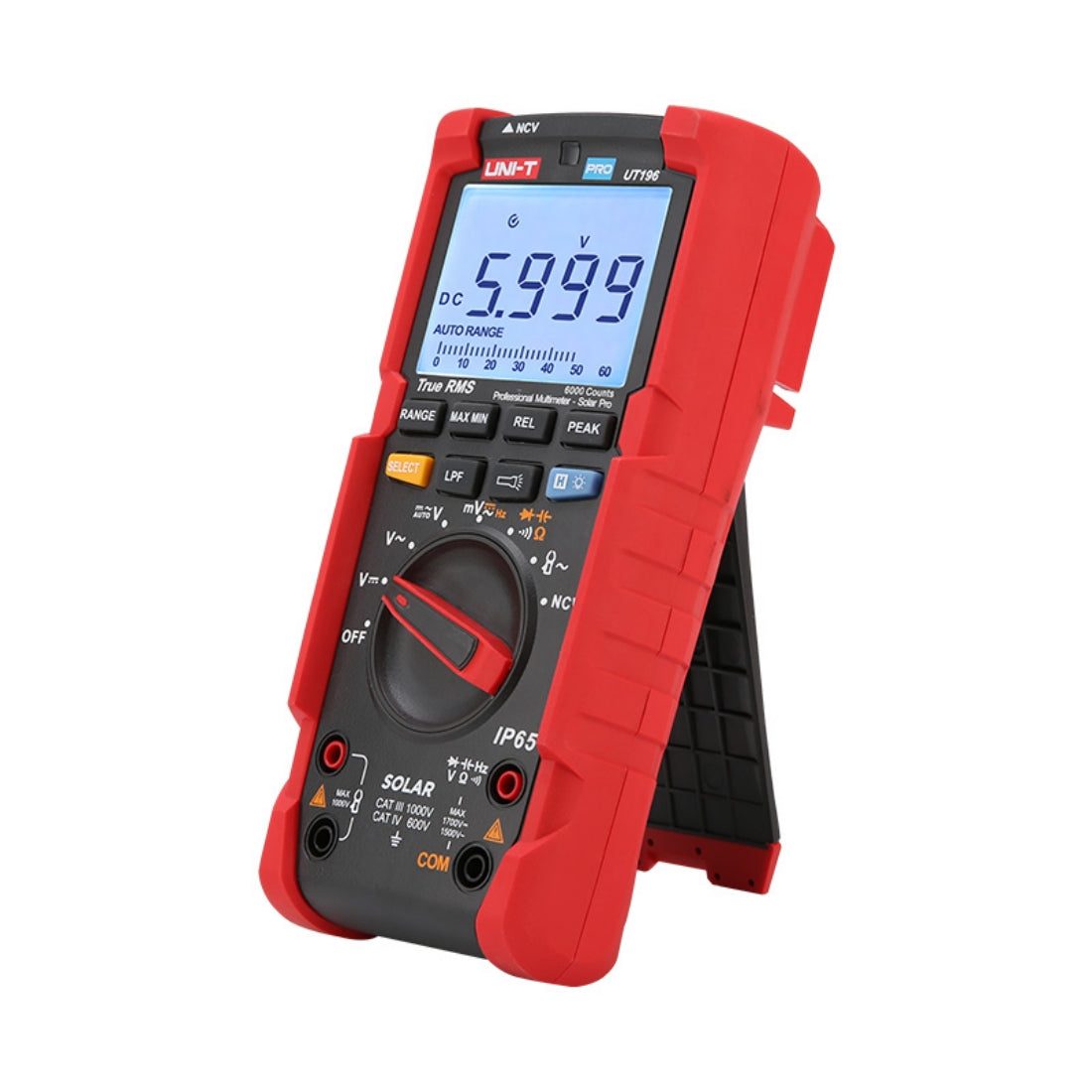

UNI-T UT196 True RMS Professional Multimeter – Solar Pro

Name: UNI-T UT196 True RMS Professional Multimeter – Solar Pro
Brand: UNI-T
Price: 99.99 GBP
Availability: OutOfStock

£99.99 excl. VAT

£119.99 Incl. VAT

Features

Certifications: CE, UKCA, cETLus, ensuring compliance with international safety and quality standards.
Voltage Measurement:
- True RMS: Ensures accurate measurements in varying conditions.

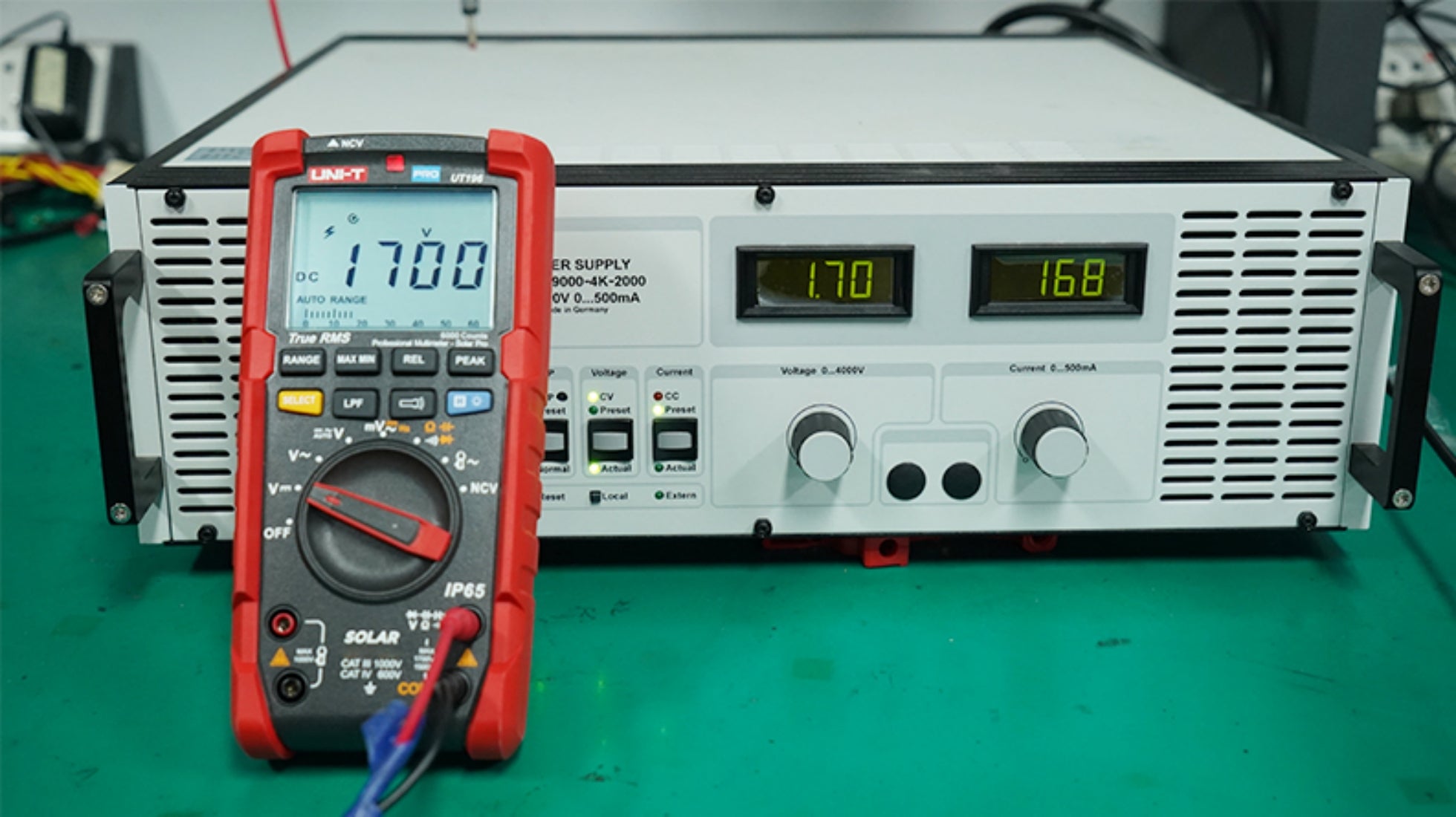

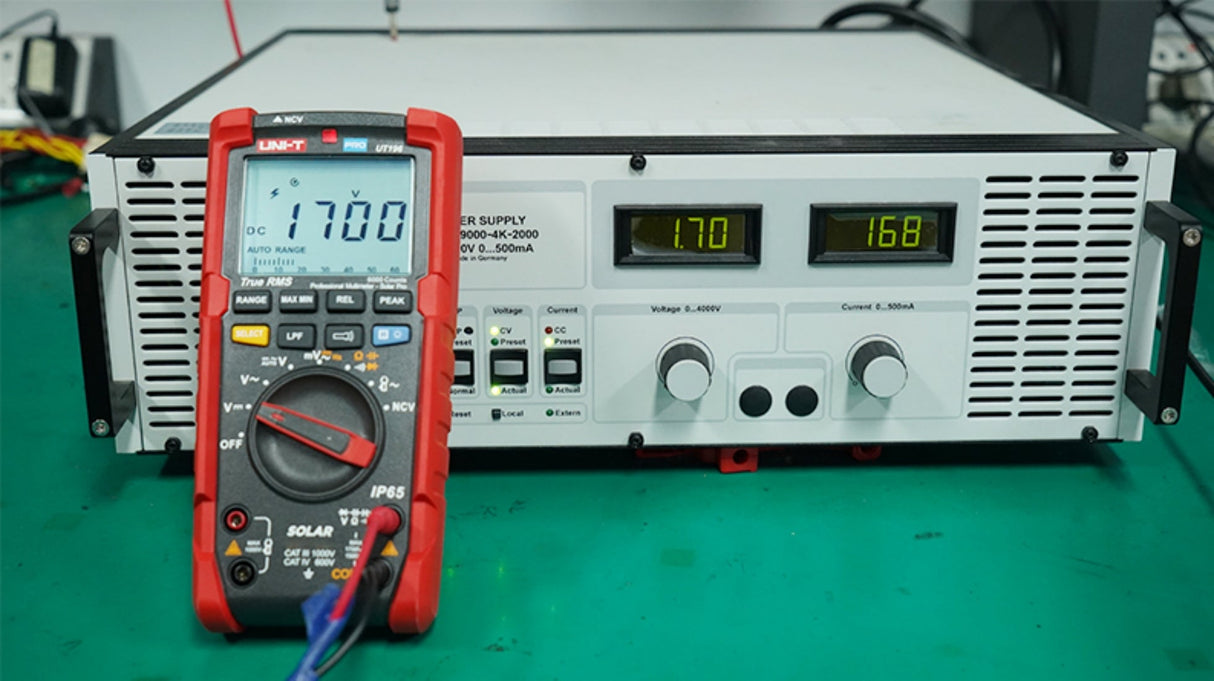

- High Voltage Capability: Measures up to 1700V DC and 1500V AC, suitable for high voltage applications like solar arrays and wind systems.
Robust Design:
- IP65 Protection: Resistant to dust and water for reliable performance.
- CAT III 1000V, CAT IV 600V: Suitable for various electrical environments.
Display and Visual Features:
- Analog Bar: Provides a visual representation of measurements for easy interpretation.

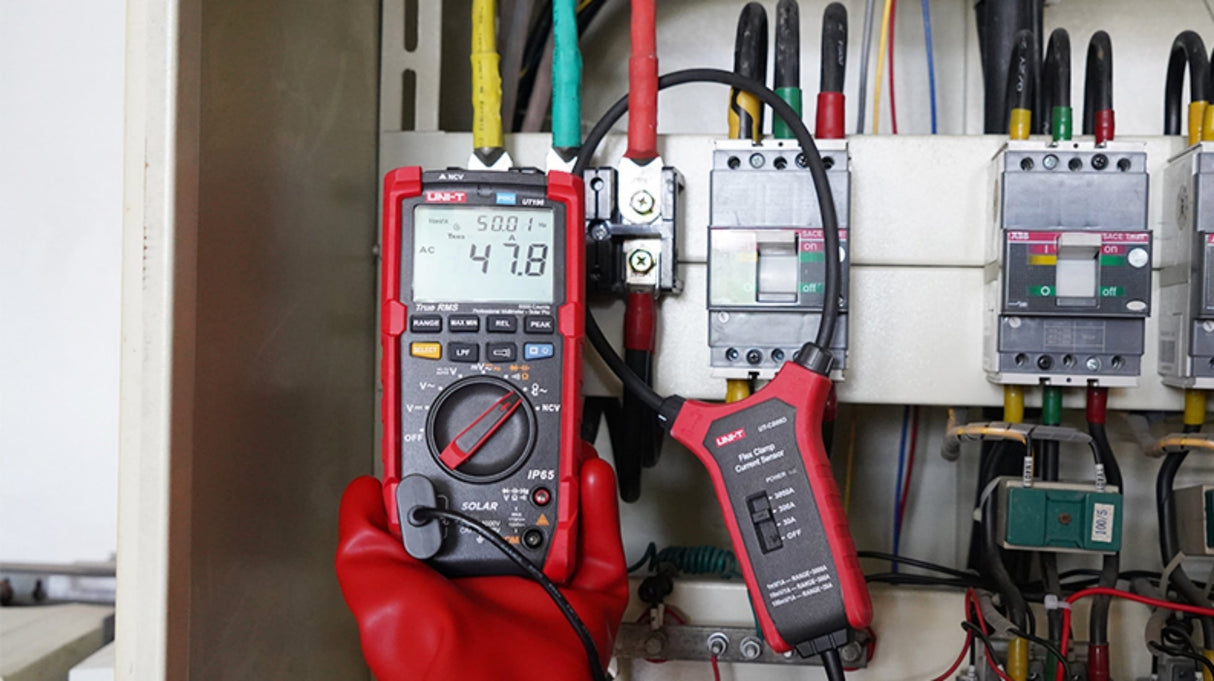

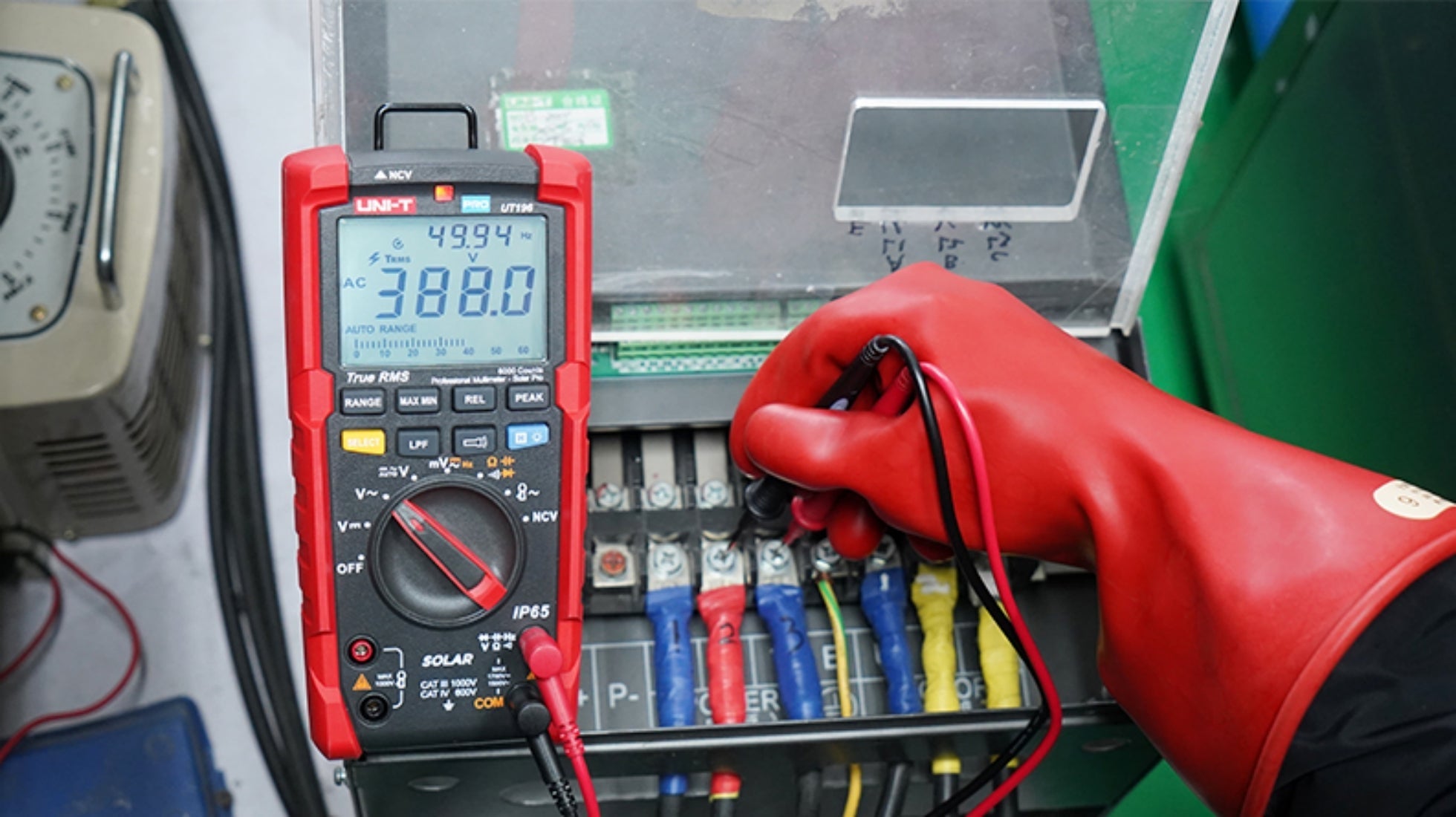

- Frequency Response: Covers a range from 45Hz to 1kHz for diverse applications.
- Low-Pass Filter Function: Enhances measurement accuracy by reducing high-frequency noise.
- Low Impedance Mode: Ensures accurate voltage measurements.
- Built-in Flashlight and Bright Backlight: Illumination for work in low-light conditions.
- Visual Alarm: Alerts users for quick attention to critical conditions.

Overview

Specifications	Range	UT196
DC voltage(V)	1700V	±(0.2%＋5)
AC voltage(V)	1500V	±(0.8%＋3)

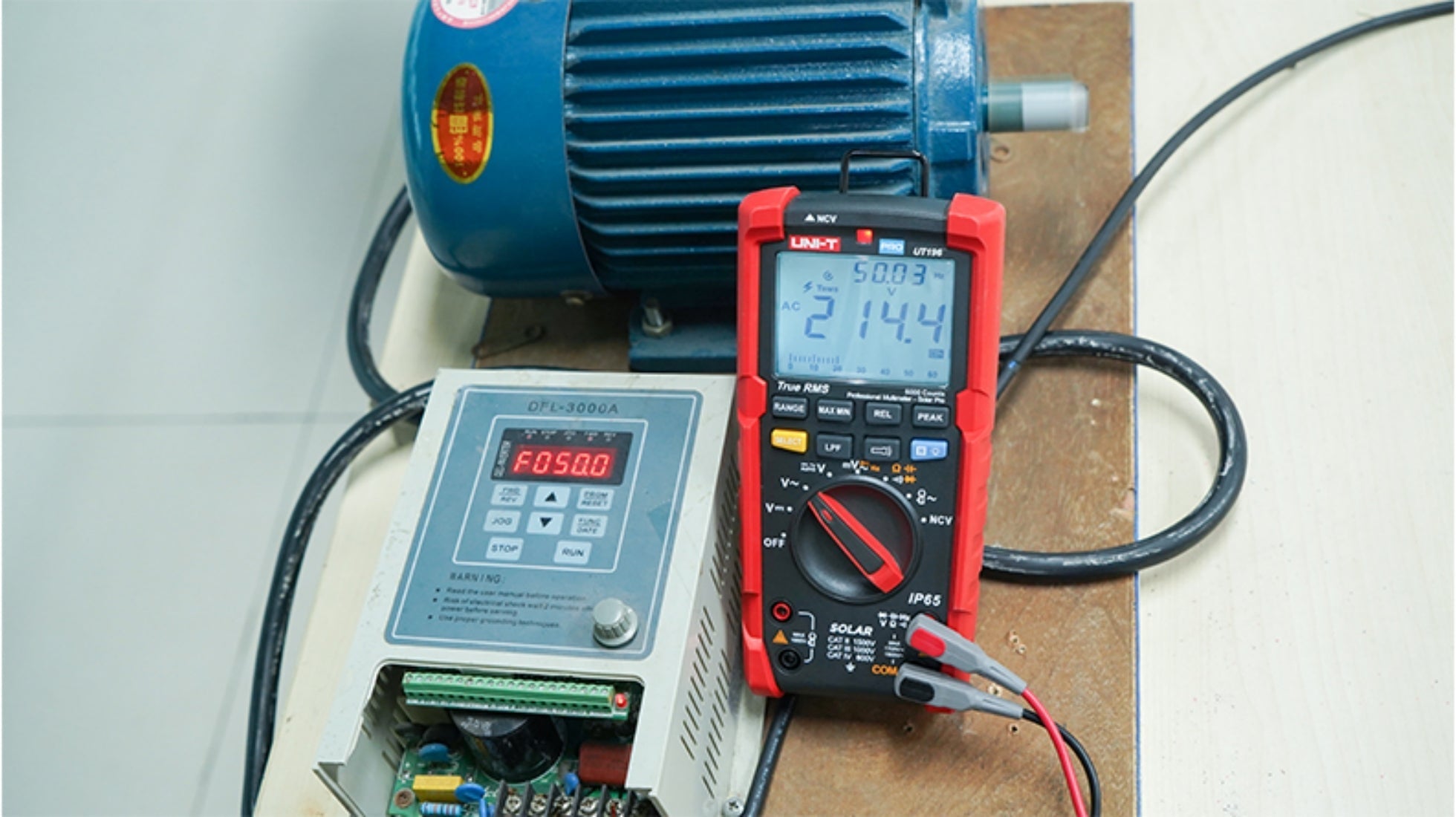

Frequency (Hz)	1MHz	±(0.08%+4)
Resistance(Ω)	60MΩ	±(0.8%＋2)
Capacitance (F)	60mF	±(1.9%+5)
Features
Display count		6000
True RMS		√
Dual display		√
Auto range		√
NCV		√
Diode test		√
Continuity		√
Relative mode		√
Max/Min		√
Peak hold		√
Low pass filter(LPF)		√
Audible visual indication		√
Low battery indication	＜7.5V approximately	√
Data hold		√
Analog bar graph		√
Auto power off	Approximately 15 minutes	√
Flashlight		√
IP rating		IP65
Drop test		2m
Safety rating	CAT III 1000V, CAT IV 600V
General Characteristics

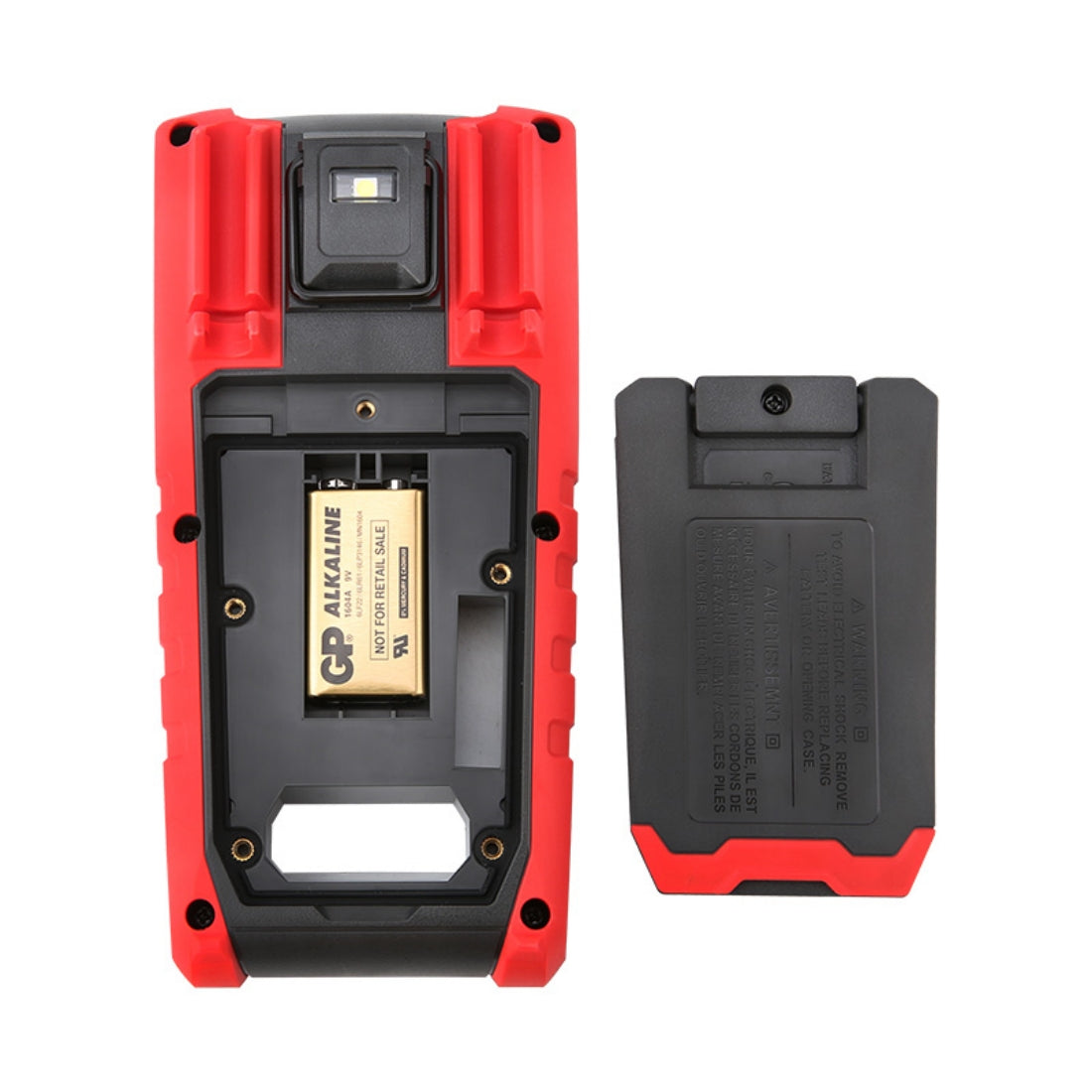

Power	9V battery
Product color	Red+Gray
Product net weight	485g
Product size	195 x 95 x 58mm
Standard accessories	English manual, test leads, battery.
Standard individual packing	Gift box,carrying bag.
