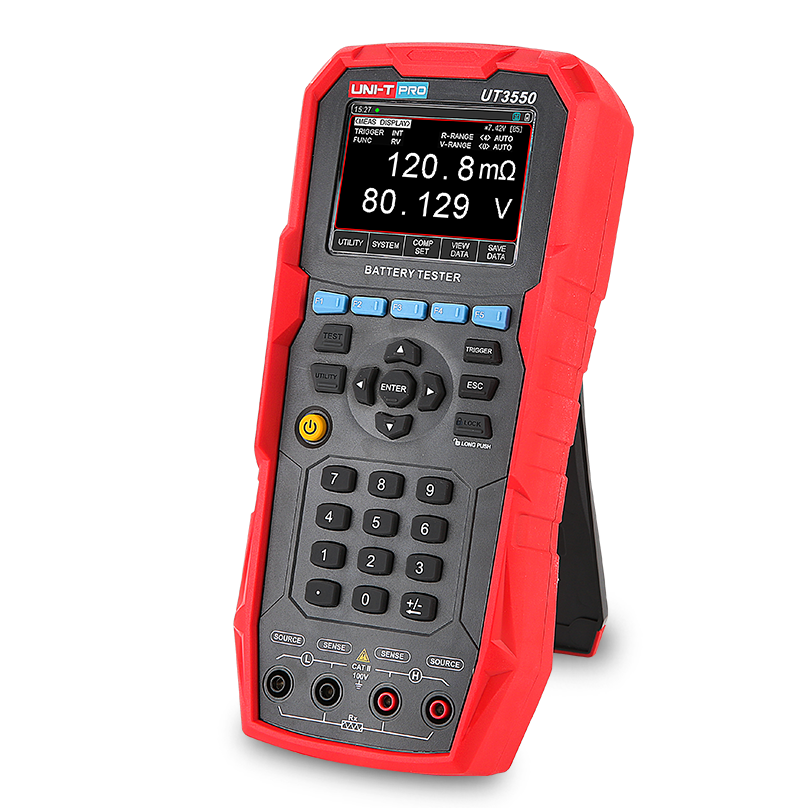

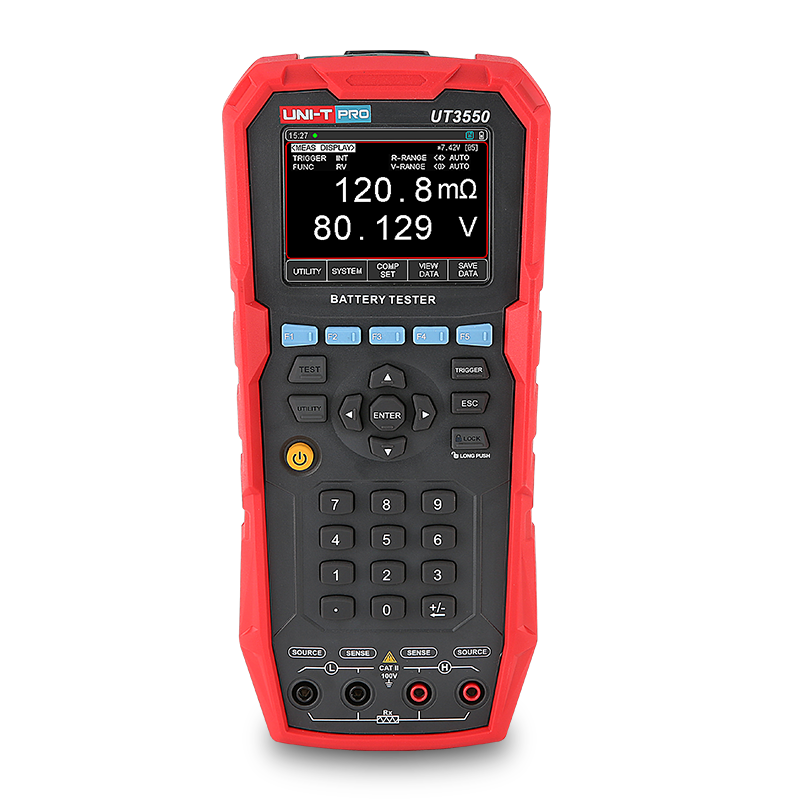

UNI-T UT3550 handheld battery tester

£1,399.00 excl. VAT
£1,678.80 Incl. VAT

For measuring voltage and resistance, the UT3550 is a flexible tool. With a 0.05% voltage precision and a 0.5% resistance accuracy, it spans a broad voltage range of 0.0001V to 100.00V and resistance of 0.001mΩ to 30.00Ω. With a 0.96" OLED and 3.5" TFT LCD screen, it is incredibly user-friendly and portable thanks to Type-C and USB DEVICE connection. It's appropriate for a range of measuring jobs.

Willing to Talk About the Price? Please Contact us.

Overview

Feature Specification
Model Number UT3550
Voltage Range 0.0001V~100.00V
Resistance Range 0.001mΩ~30.00Ω
Accuracy Voltage:0.05% ,Resistance:0.5%

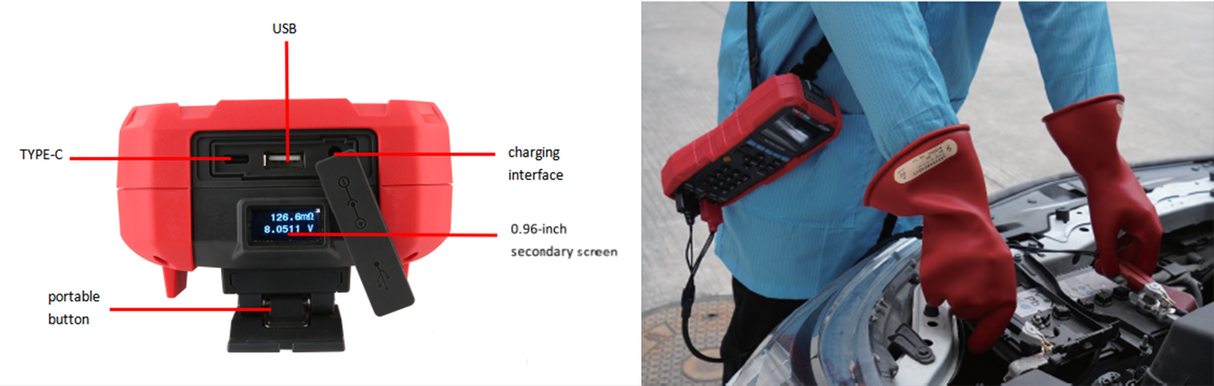

Connectivity Type-C, USB DEVICE
Size Portable
Testing Speed 1/s (manual range)

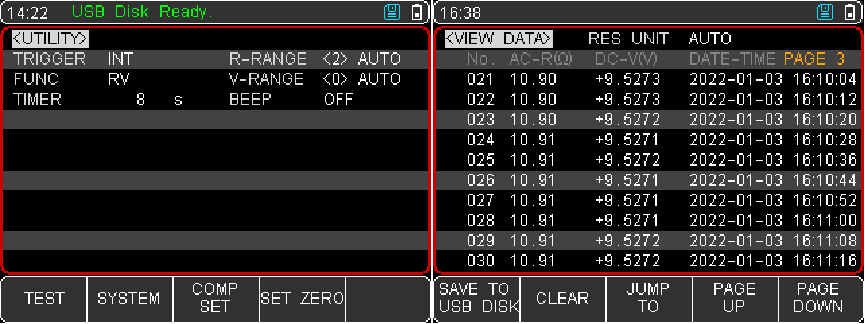

Storage Internal 500 groups, exportable CSV files
Charging Time <5 Hour
Display 3.5'' TFT LCD & 0.96'' OLED
Touchscreen  No
Warranty 3 years
Shipping Dimensions (W x H x L) 306mmx 138mmx 124mm
Shipping Weight 1.5 kg
For additional product specifications, please refer to the attached PDF.



Related Documents

Document Links

Delivery Content

Features

📹 Related Videos

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Maestro
  • Mastercard
  • PayPal
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

UNI-T UT3550 handheld battery tester

£1,399.00 excl. VAT
£1,678.80 Incl. VAT

Bandwidth

N/A

Channel

N/A

IR Resolution

N/A

Max. Memory Depth

N/A

Real-Time Sample Rate

N/A

Waveform Capture Rate

N/A

Waveform Generator

N/A

Max. Output Freq-uency

N/A

Vertical Resolution (VR)

N/A

Voltage Range

0.0001V~100.00V

Frequency Range

N/A

Max. Test Frequency

N/A

Accuracy

Voltage:0.05% ,Resistance:0.5%

Max. Test Rate

N/A

Connectivity

Type-C , USB DEVICE

Display

3.5'' TFTLCD & 0.96'' OLED

RBW

N/A

Phase Noise

N/A

DANL

N/A

Trace Source

N/A

Output Current

N/A

Output Voltage

N/A

Resolution

N/A

Temperature measurement range

N/A

Current Range

N/A

Resistance Range

0.001mΩ~30.00Ω
