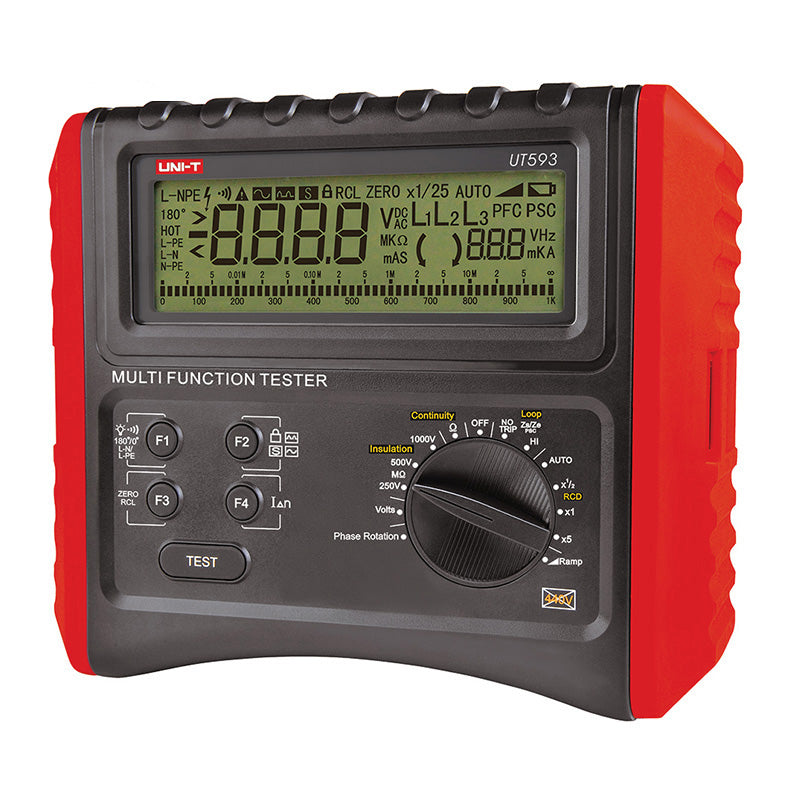

UNI-T UT593 Multifunction Installation Testers
£279.99
excl. VAT
Unit price
/
Unavailable
£335.99
Incl. VAT
Features
- Certifications: CE, ensuring compliance with safety standards.
- LCD Display: 9999-count with an analog bar for detailed readings.
- Insulation Resistance Test: 250V~1000V DC test for insulation resistance.
- Earth-Resistance Continuity Test: 200mA test for continuity in earth resistance.
- Loop Impedance/PFC/PSC Test: Comprehensive testing for loop impedance and prospective fault/current.
- Lock Test: Functionality to lock in specific test parameters.
- RCD Trip Time Test: Measures the Residual Current Device trip time with one-key data storage.
- Test Modes: Full/Half wave and countdown (30s) modes for flexibility.
- Phase Angle Option: 0°/180° option to detect the fastest trigger time.
- Trip Current Test: Measures RCD trip time X2 and RCD trip trigger current.
- Phase Sequence and Missing Test: Ensures correct phase connections.
- AC/DC Voltage Auto Check: Automatic checking and testing of AC/DC voltages.
- Connection Check: Real-time display of connection status.
- Backlight: White backlight for improved visibility.
- Auto Power Off: Conserves battery with automatic power-off feature.
Overview
Overview
| Specifications | Range | UT593 | UT595 | |
| Insulation resistance (Ω) | Output voltage | 250V/500V/1000V | ±10% | |
| 250V | 0.05MΩ～250MΩ | ±(5%+5) | ||
| 500V | 0.05MΩ～500MΩ | |||
| 1000V | 0.05MΩ～1000MΩ | |||
| Short-circuit current | <2mA | |||
| Low-resistance continuity test | Range | 0.00Ω～199Ω | ±(2%+5) | |
| Test current | 0.00～2Ω: >200mA | √ | ||
| Line impedance (Ω) | Range | 0.01Ω～2000Ω | ±(5%+5) | |
| Operating voltage (Frequency) | 230V (45Hz～65Hz) | √ | ||
| Test current | 20A | √ | ||
| PFC test | 0kA～26kA | √ | ||
| Loop impedance (Ω) | Range | 0.01Ω～2000Ω | ±(5%+5) | |
| Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | ||
| Test current | 20A | √ | ||
| PFC test | 0kA～26kA | √ | ||
| Non-trip loop impedance (Ω) | Range | 1.00Ω～2000Ω | ±(5%+5) | |
| Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | ||
| Test current | 15mA | √ | ||
| PFC test | 0kA～26kA | √ | ||
| RCD test | Operating voltage (Frequency) | 195V～253V (45Hz～65Hz) | √ | |
| Test current | 10mA/30mA/100mA/300mA/500mA | ±10% | ||
| Trip time | ×1/2 *I△n Range: 0ms～2000ms | ±(5%+5) | ||
| ×1 *I△n Range: 0ms～300ms | ||||
| ×1 *I△n Range: 0ms～500ms (Select count down) | ||||
| ×2 *I△n Range: 0ms～150ms | ±(5%+5) | |||
| ×2 *I△n Range: 0ms～200ms (Select count down) | ±(5%+5) | |||
| ×5 *I△n Range: 0ms～40ms | ±(5%+5) | |||
| Phase sequence test | Operating voltage (Frequency) | 100V～440V (45Hz～65Hz) | √ | √ |
| Display | Phase sequence: L1→ L2→ L3, forward rotation; L1→ L3→ L2 reverse rotation | √ | √ | |
| Ramp RCD test | Test current | 10mA/30mA/100mA/300mA/500mA | ±10% | |
| AC voltage (V) | Range | 0V～440V | ±(5%+2) | |
| Frequency response | 45Hz～60Hz | √ | ||
| Resolution | 1V | √ | ||
| Features | ||||
| Display count | 9999 | |||
| Auto power off | √ | |||
| Low battery indication | √ | |||
| Data storage | √ | |||
| LCD backlight | √ | |||
| Auto half-wave test | √ | |||
| RCD count down test | 30s | √ | ||
| RCD half-wave test | √ | |||
| Phase conversion (RCD) | 0° and 180° | √ | ||
| General Characteristics | ||||
| Power | 1.5V battery (5#) × 6 | |||
| LCD size | 125mm × 37mm | |||
| Product color | Red and grey | |||
| Product net weight | 1000g | |||
| Product size | 210mm × 175mm × 90 mm | |||
| Standard accessories | Battery, test leads (red×1, green×1, black×1), special power test lead, remote-control test lead | |||
| Standard individual packing | Gift box, manual, tool box | |||
| Standard quantity per carton | 4pcs | |||
| Standard carton measurement | 510mm×330mm×300mm | |||
| Standard carton gross weight | 15kg | |||
