Features of UT683KIT Wire Tracker

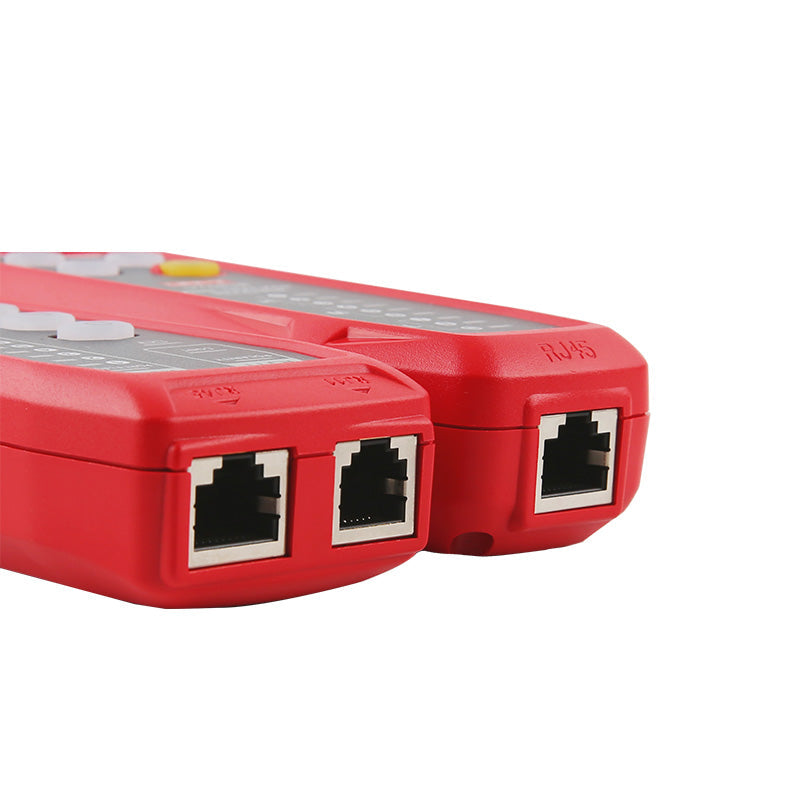

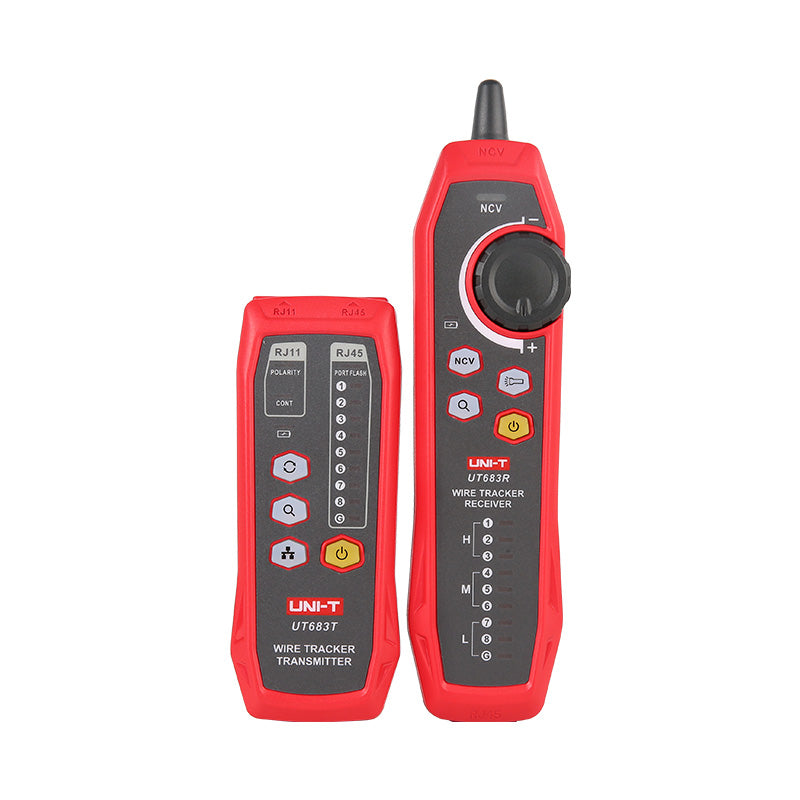

UNI-T UT683KIT Wire Tracker
The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
Certifications: CE, UKCA
● Line function
● NCV function
● Withstand voltage DC 60V
● Port flashes
Specifications of UT683KIT Wire Tracker
Specifications | Description |
Certificates | CE, RoHS |
Transmitter | |
Port flashing | √ |
Wire tracking | √ |
Line alignment | √ |
Open-short test | 10kΩ |
Polarity test | √ |
Operating time | >8 hours |
Receiver | |
Wire tracking | RJ11>3000m; RJ45>100m |
NCV function | √ |
Headset jack | 3.5mm |
Low battery indication | √ |
Operating time | >5 hours |
General Characteristics | |
Power | 1050mAh rechargeable lithium battery |
Product net weight | Transmitter: around 95g; Receiver: around 127g |
Product size | Transmitter-130mm x 51mm x 28mm; Receiver-197mm x 48mm x 34mm |
Standard accessories | USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual |
Standard individual packing | Gift box, carrying bag |
Standard quantity per carton | 20pcs |
Standard carton measurement | 480mm x 370mm x 325mm |
Standard carton gross weight | About 10kg |
