UNI-T UTD1025DL Handheld Digital Oscilloscope

£295.00 excl. VAT
£354.00 Incl. VAT
The UTD1025DL is a versatile digital oscilloscope with a 25MHz bandwidth. It features two channels and a maximum sample rate of 250 Msa/s, with a memory depth of 12 kpts. This oscilloscope is suitable for measuring various parameters, including voltage, current, and resistance. It has a display count of 3 and is equipped with a user-friendly 3.5-inch TFL LCD screen for efficient operation.

Overview

  • Bandwidth: 25MHz
  • Channels: 2
  • Sampling rate: 250MSa/s
  • Rise time: <= 14ns
  • Memory depth: 12kpts
  • Display: 3.5 inches TFL LCD

    • Related Documents

    Document Links

    User Manual
    PDF Icon UNI-T UTD1000L User's Manual
    Download
    Datasheet
    PDF Icon UTD1000L Datasheet
    Download
    Software
    Download Icon UTD1000L Software
    Download

    Delivery Content

    Features

    Photo 1

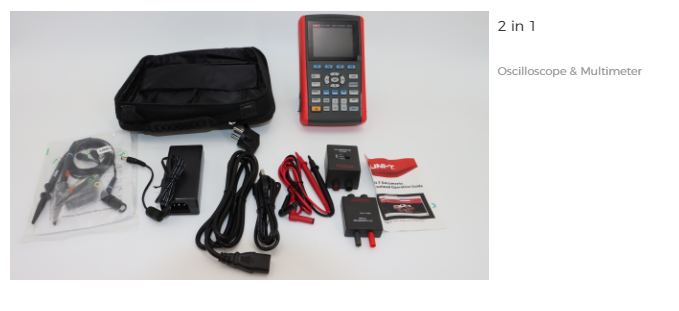

    2 in 1 Oscilloscope & Multimeter

    Photo 1



    More parameter measurement types

    Photo 1



    Monochrome display



    Photo 1

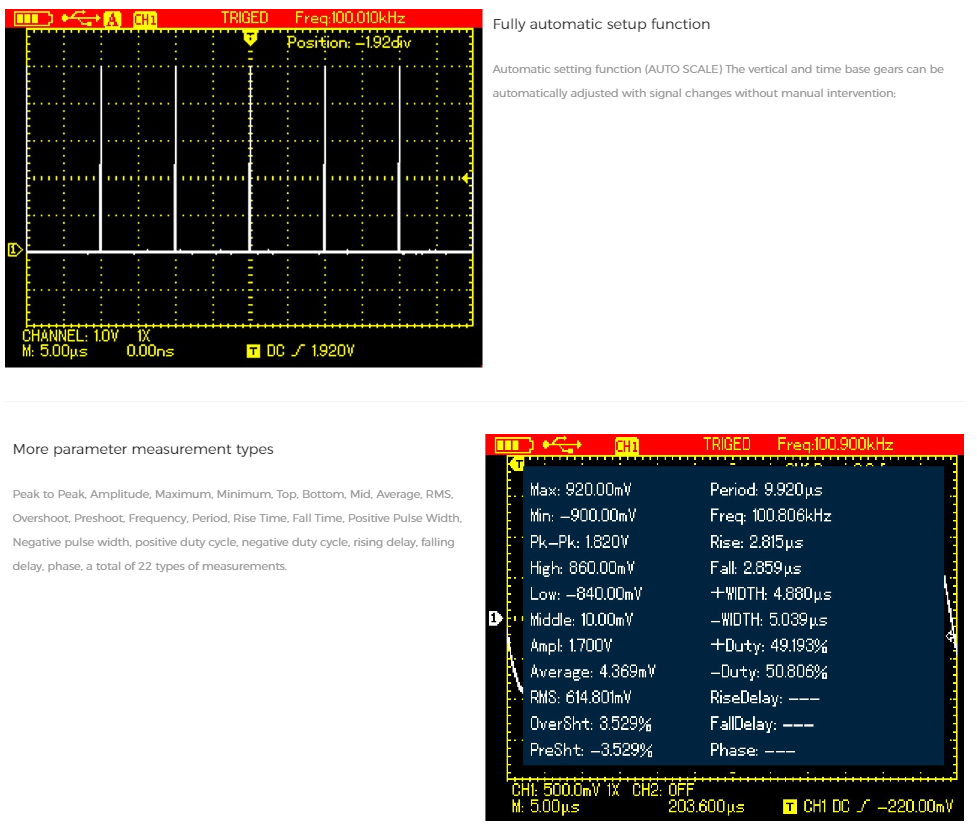

    Fully automatic setup function

    Photo 1

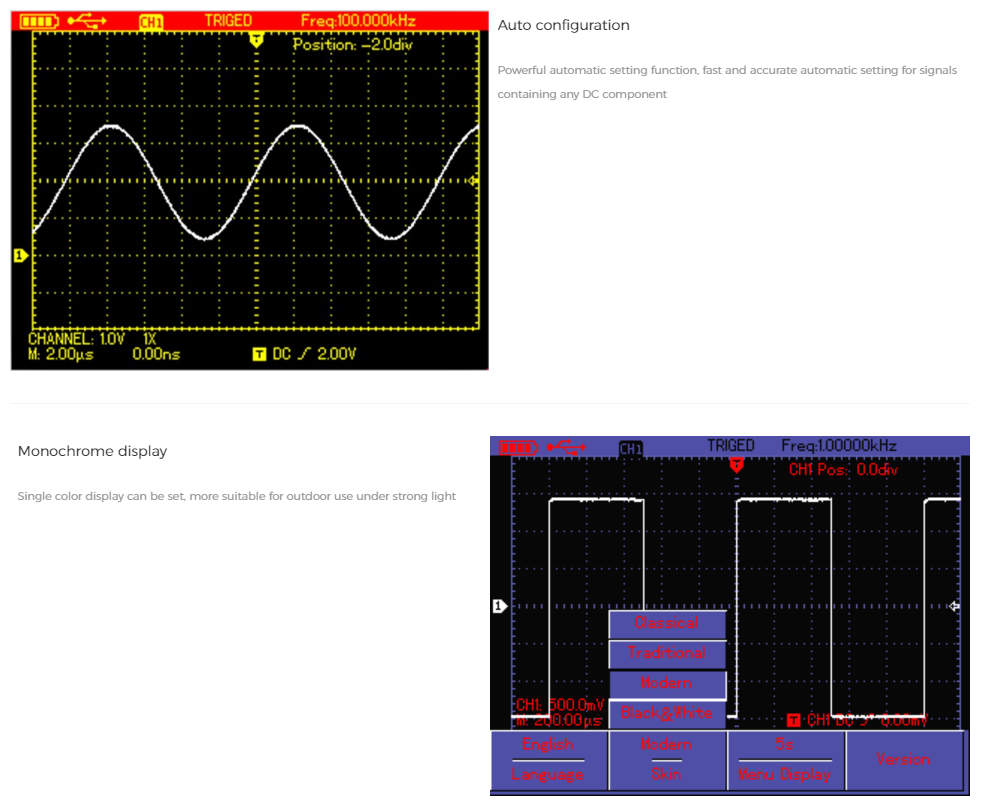

    Auto configuration



    📹 Related Videos

    Video Gallery

    Payment & Security

    Payment methods

    • American Express
    • Apple Pay
    • Diners Club
    • Discover
    • Google Pay
    • Maestro
    • Mastercard
    • PayPal
    • Union Pay
    • Visa

    Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

    UNI-T UTD1025DL Handheld Digital Oscilloscope

    £295.00 excl. VAT
    £354.00 Incl. VAT

    Bandwidth

    25 MHz

    Channel

    2

    IR Resolution

    N/A

    Max. Memory Depth

    12 kpts

    Real-Time Sample Rate

    250 Msa/s

    Waveform Capture Rate

    N/A

    Waveform Generator

    N/A

    Max. Output Freq-uency

    N/A

    Vertical Resolution (VR)

    N/A

    Voltage Range

    N/A

    Frequency Range

    N/A

    Max. Test Frequency

    N/A

    Accuracy

    N/A

    Max. Test Rate

    N/A

    Connectivity

    N/A

    Display

    3.5 inches TFL LCD

    RBW

    N/A

    Phase Noise

    N/A

    DANL

    N/A

    Trace Source

    N/A

    Output Current

    N/A

    Output Voltage

    N/A

    Resolution

    N/A

    Temperature measurement range

    N/A

    Current Range

    N/A

    Resistance Range

    N/A
