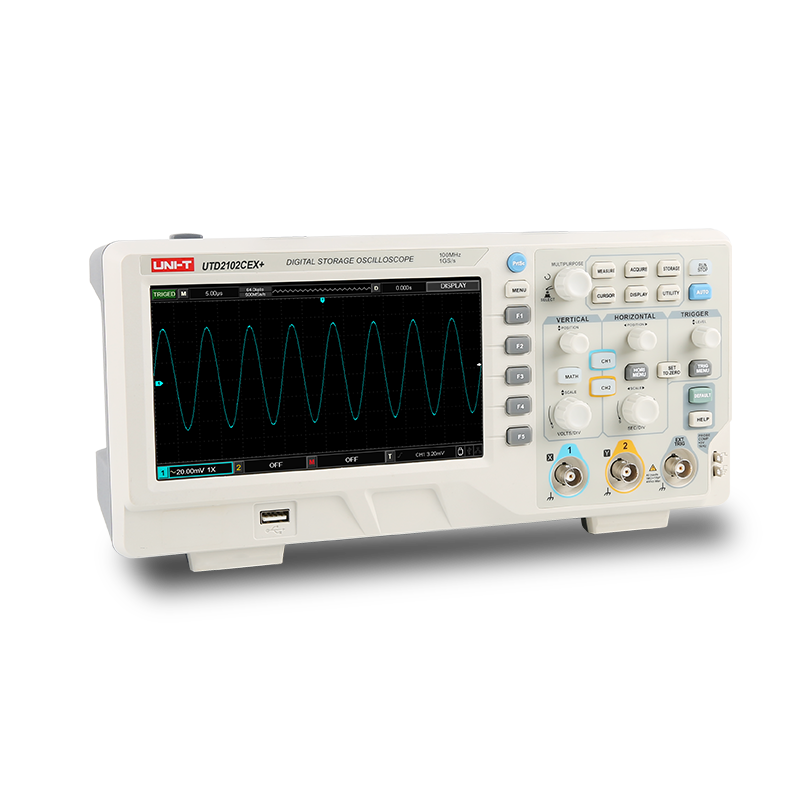

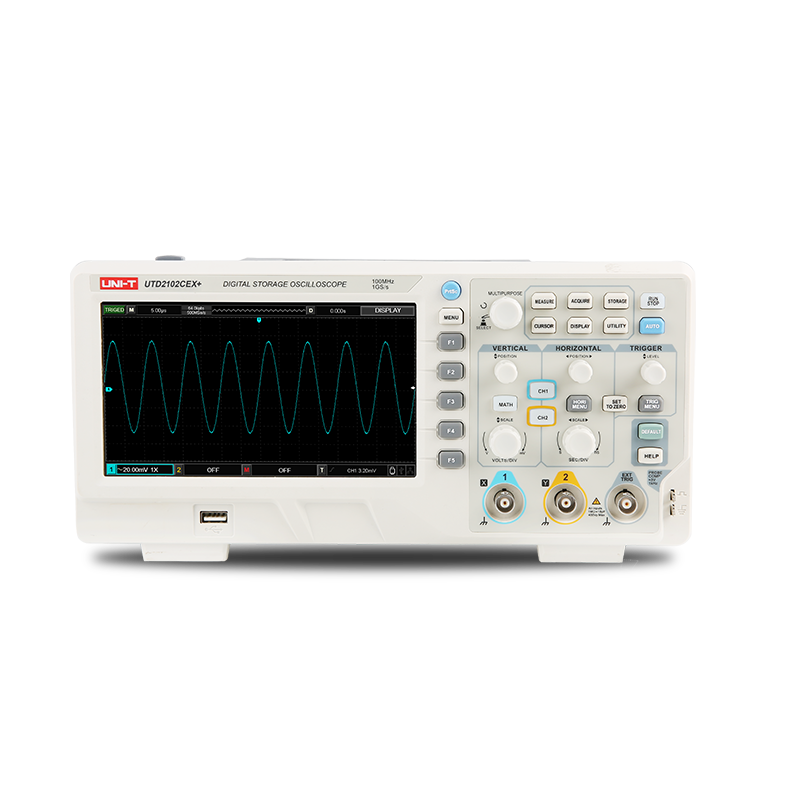

UNI-T UTD2102CEX+ Digital Oscilloscope
£194.00
excl. VAT
Unit price
/
Unavailable
£232.80
Incl. VAT
When you need an affordable way to analyze analog waveforms, the Uni-T UTD2102CEX+ is a great choice!
100MHz, 2CH, 1GSa/s, Memory Depth: 64kpts, ≥5000wfms/s, 7in display
Variants
Variants
Overview
Overview
| Feature | Specification |
|---|---|
| Model Number | UTD2102CEX+ |
| Scope Type | DSO |
| Bandwidth | 100MHz |
| Channels | 2 Analog |
| Real-Time Sample Rate | 1GSa/S |
| Rise Time | ≤3.5ns |
| Memory Depth | 64kpts |
| capture rate | 5, 000wfms/s |
| Input impedance | 1MΩ±2% ,18±3pF |
| Logic Pod Included | No |
| Waveform Generator | No |
| Display | 7-inch TFT LCD |
| Touchscreen | No |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 306mm×138mm×124mm |
| Shipping Weight | 2.5 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, UT-P04:Passive Probe x 2 (1 x , 10 x switchable,100MHz) |
| For additional product specifications, please refer to the attached PDF. |
|
Related Documents
Related Documents
User Manual
Datasheet
Programming Manual
Couldn't load pickup availability
