Specifications
Specifications
-
Bandwidth100MHz
-
Channel2
-
Real-Time Sample Rate500MSa/s
-
Waveform Capture Rate5000 wfms/s
-
Max. Memory Depth64 kpts
-
Waveform Generator-
Description
- Bandwidth: 100 MHz
- Analog Channels: 2
- Real-Time Sample Rate: 500 MSa/s
- Max. Memory Depth: 64 kpts
- Waveform Capture Rate: 5,000 wfms/s

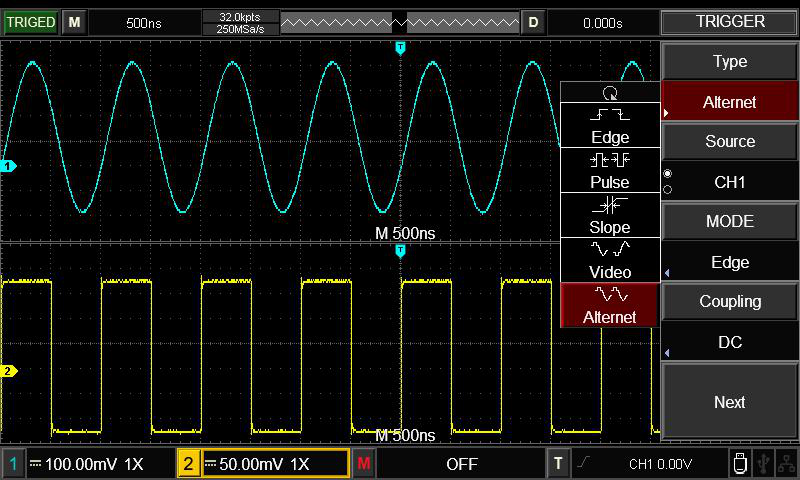

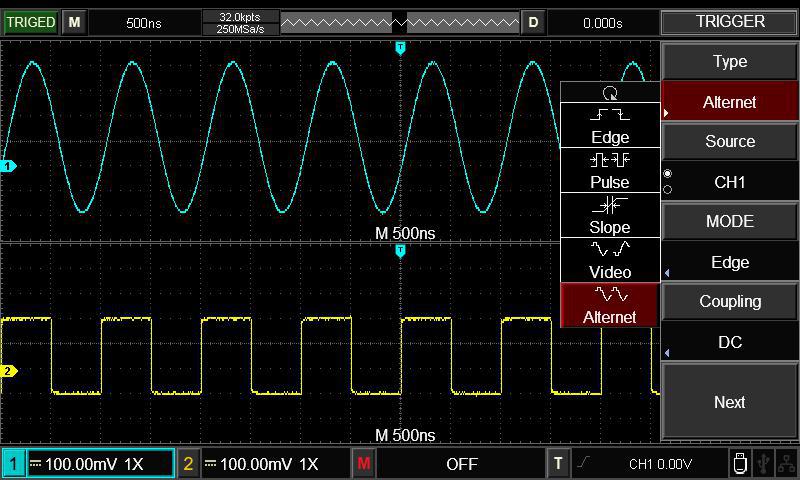

- Alternate Trigger: Effectively applies to signals without frequency correlation

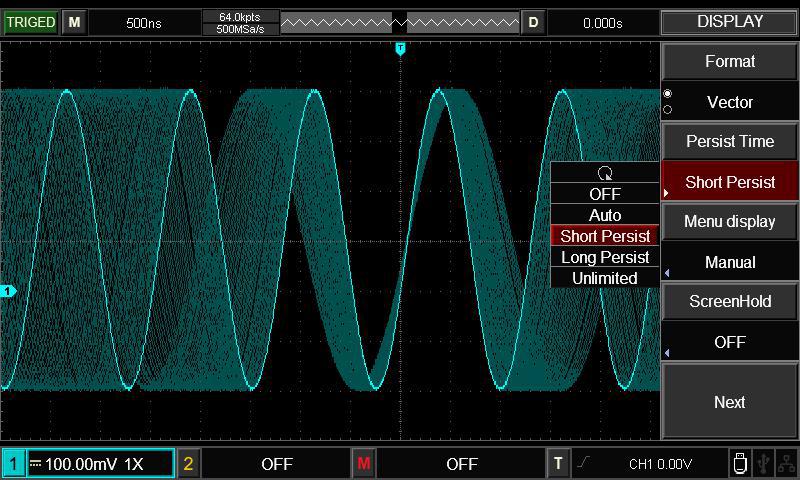

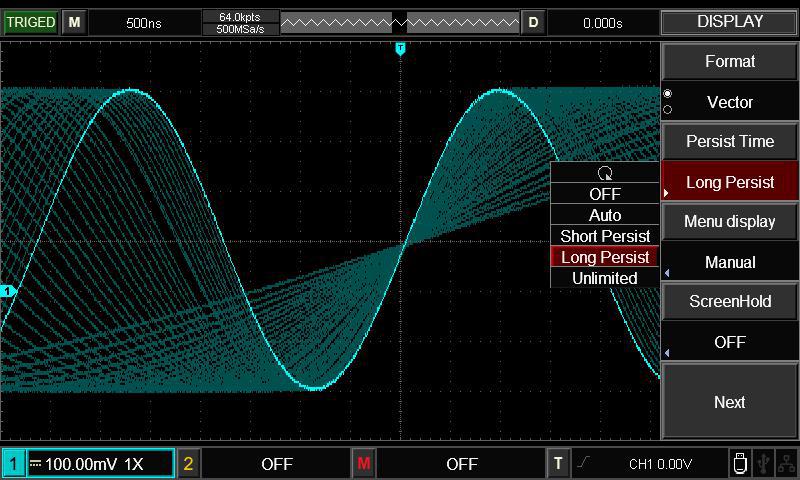

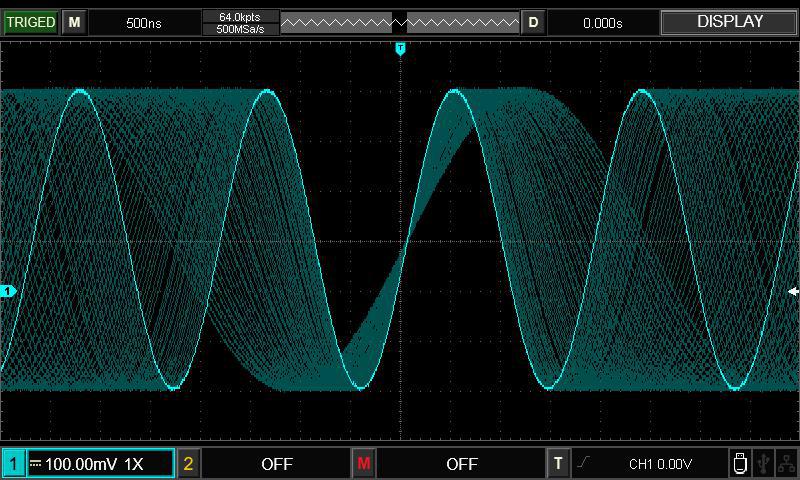

- Grade Display: Displays worst-case waveform behavior and captures rare or abnormal signals

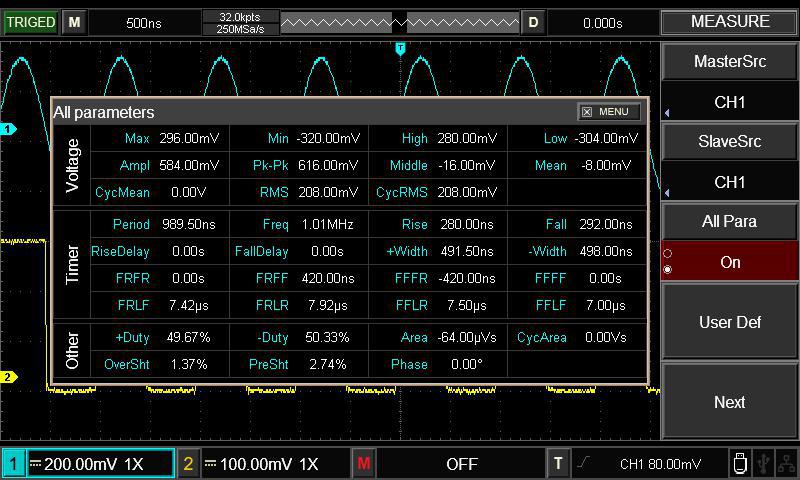

- Automatic Parameter Measurement: 34 automatic measurements with 5 customizable parameter groups

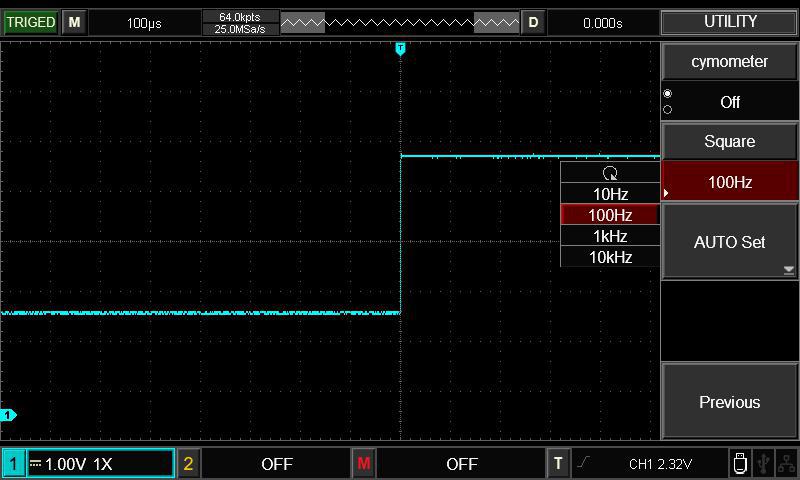

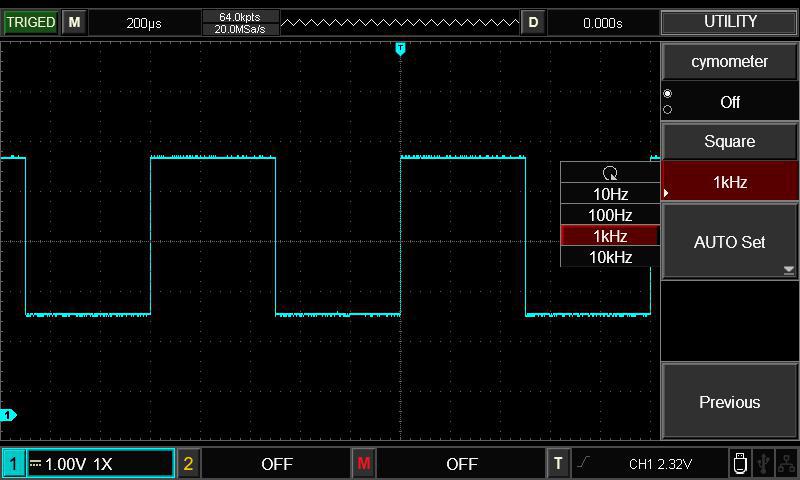

- Standard Square Wave Output: Built-in signal outputs at 10 Hz, 100 Hz, 1 kHz, and 10 kHz

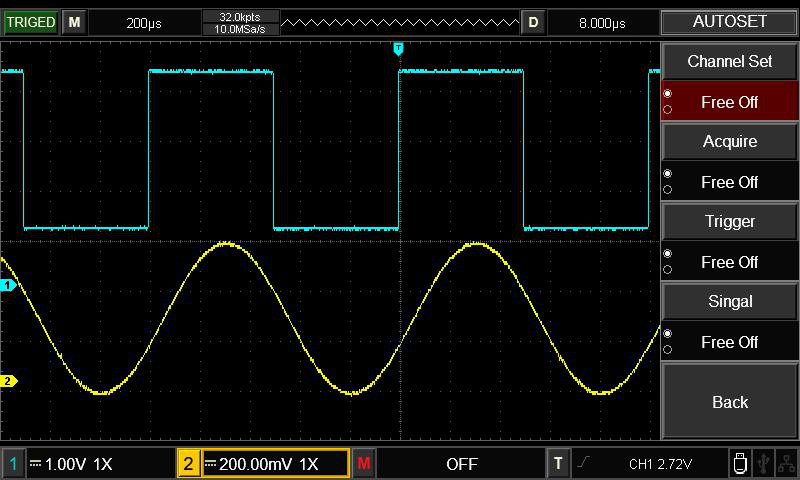

- Brand New AUTO Strategy: Allows user-defined post-AUTO state for better workflow control

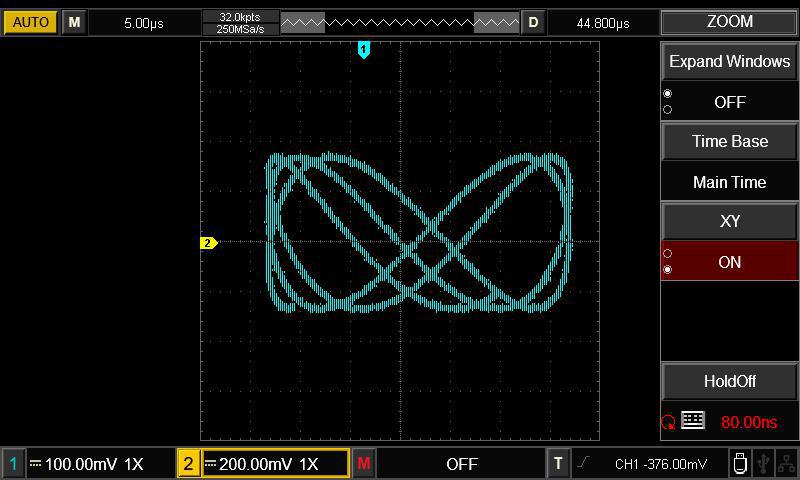

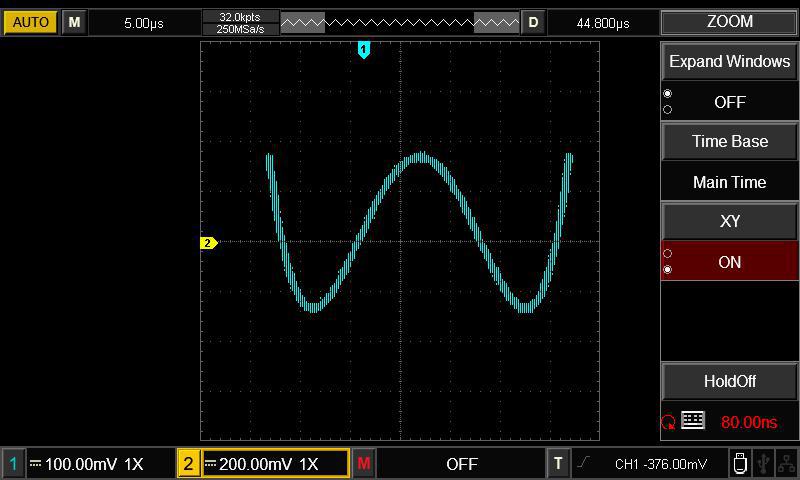

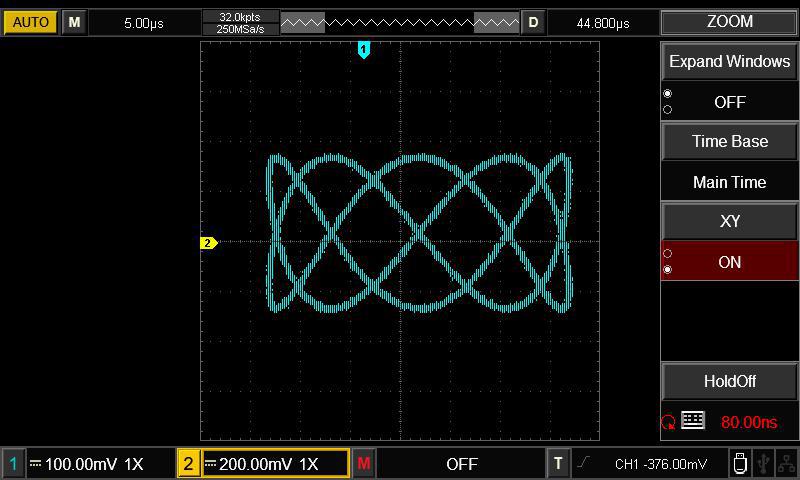

- XY Mode (Lissajous Graphics Mode): Measures phase difference between two signals of the same frequency

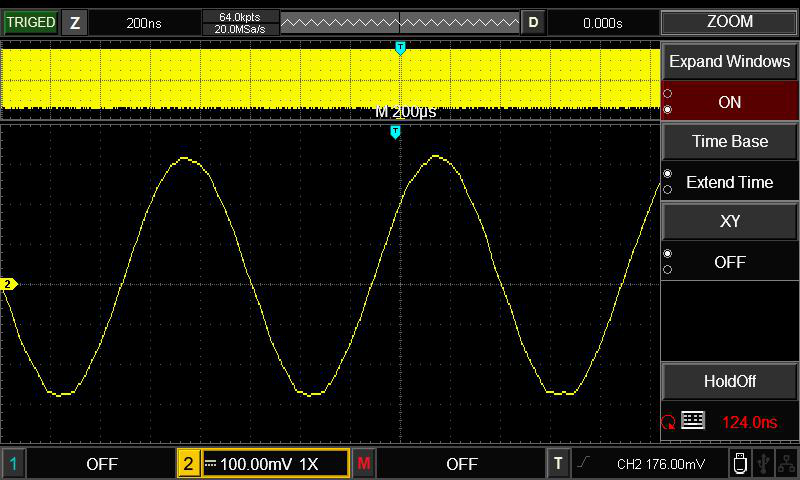

- ZOOM Function: Enables viewing both full waveform and fine details simultaneously
- Math Functions: Supports addition, subtraction, multiplication, division, and waveform calculations
Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£182.00
excl. VAT
Unit price
/
Unavailable
£218.40
Incl. VAT
|
£162.00
excl. VAT
Unit price
/
Unavailable
£194.40
Incl. VAT
|
£154.00
excl. VAT
Unit price
/
Unavailable
£184.80
Incl. VAT
|
£207.00
excl. VAT
Unit price
/
Unavailable
£248.40
Incl. VAT
|
| Bandwidth | ||||
| Bandwidth | 100MHz
| 50MHz
| 25 MHz
| 150 MHz
|
| Channel | ||||
| Channel | 2
| 2
| 2
| 2
|
| Max. Memory Depth | ||||
| Max. Memory Depth | 64 kpts
| 64 kpts
| 25 kpts
| 64 kpts
|
| Real-Time Sample Rate | ||||
| Real-Time Sample Rate | 500MSa/s
| 500MSa/s
| 250 MSa/s
| 500MSa/s
|
| Waveform Capture Rate | ||||
| Waveform Capture Rate | 5000 wfms/s
| 5000 wfms/s
| 2000 wfms/s
| 5000 wfms/s
|
| Waveform Generator | ||||
| Waveform Generator | - | - | - | - |
