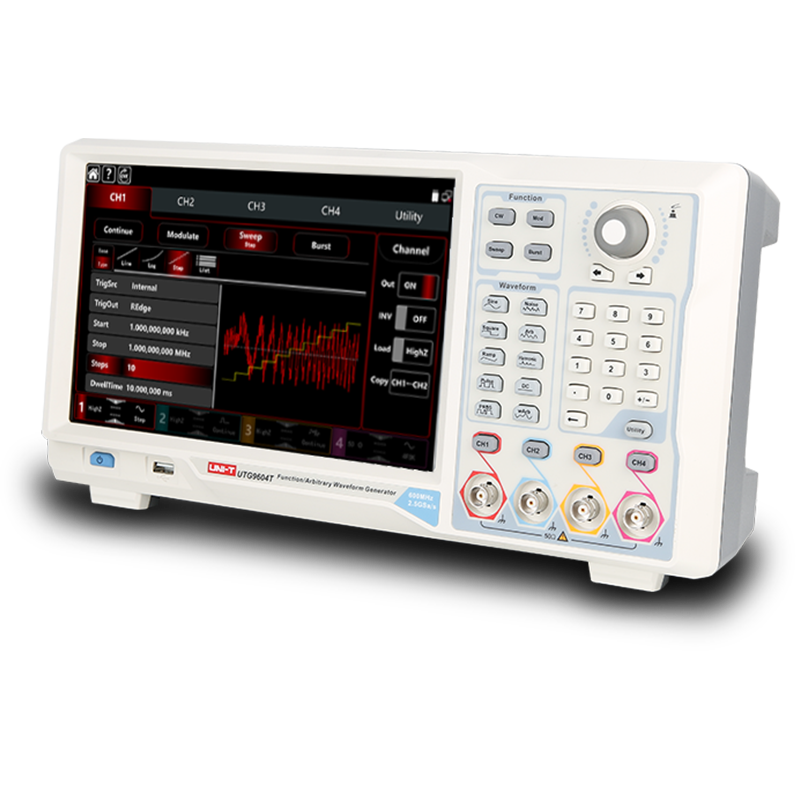

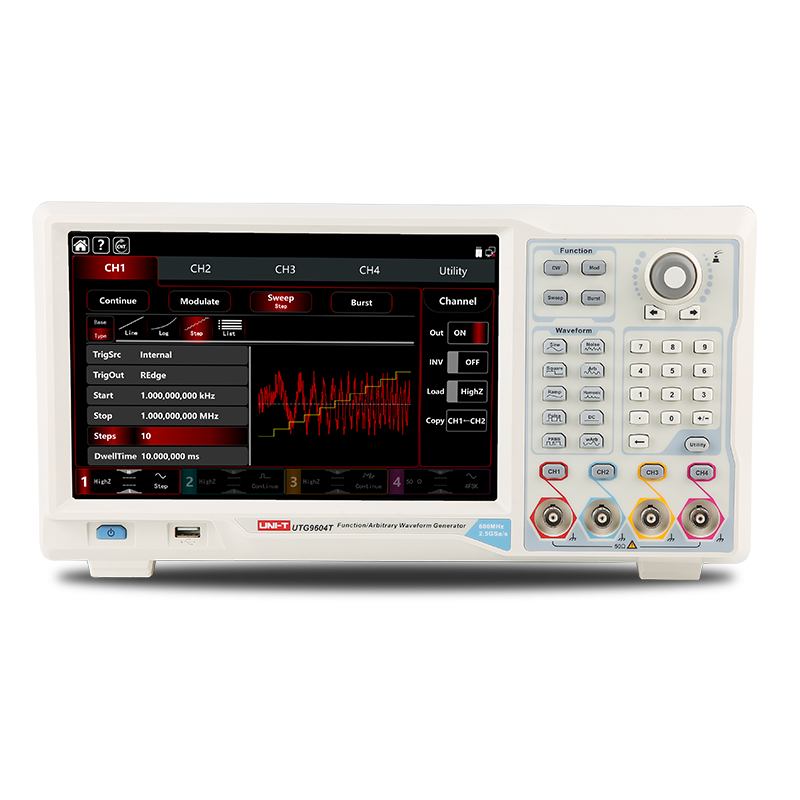

UNI-T UTG9504T Waveform Generator
- Bandwidth: Up to 500 MHz – supports ultra-high-frequency signal generation
- Sampling Rate: Up to 2.5 GSa/s – ensures detailed and accurate waveform output
- Vertical Resolution: 16-bit (interpolated) / 14-bit native – delivers high signal fidelity
- Channels: 4 independent output channels – ideal for complex multi-signal simulations
- Memory Depth: 64 Mpts per channel – enables generation of long and intricate waveforms
- Display: 10.1-inch TFT LCD touchscreen – intuitive interface with real-time waveform preview
New arrival
£4,481.00
excl. VAT
Unit price
/
Unavailable
£5,377.20
Incl. VAT
Variants
Variants
Couldn't load pickup availability
5-Year Warranty Coverage
Enjoy peace of mind with a 3-Year Standard Warranty, plus receive an additional 2 years when you register your product on our website.
👉 Register now at: Product Registration
Specifications
Specifications
-
Max. Output Frequency500 MHz
-
Channels4
-
Vertical Resolution (VR)16-bit/14bit
-
Sample Rate
-
Arbitrary Wave lenght
-
Display10.1 inch TFT LCD (touch screen)
Description
- Model: UTG9504T
- Waveform Output Channels: 4 independent outputs
- Maximum Sampling Rate: 2.5 GSa/s
- Vertical Resolution: 16-bit (interpolated) / 14-bit (native)
- Memory Depth: 64 Mpts per channel
- Display: 10.1-inch 1280×800 TFT LCD capacitive touchscreen
- Standard Waveforms: Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, and arbitrary waveforms
- Sine Wave Output Bandwidth: Up to 500 MHz (model dependent), with 1 μHz frequency resolution
- Square Wave Output Bandwidth: Up to 200 MHz, minimum edge time within 1.5 ns, adjustable duty cycle
- Pulse Wave Output: Up to 200 MHz with adjustable rise/fall time and duty ratio
- Harmonic Output: Adjustable phase and amplitude, supports 2 to 16 harmonics
- Arbitrary Waveform Support: From 8 pts to 64 Mpts; over 200 non-volatile waveform storage slots
- File Storage: 16 GB internal storage for waveform (.bsv, .csv) and instrument status files
- File Loading: Supports reading waveform files and instrument states from USB drive
- Maximum Output Amplitude: 20 Vpp
- Modulation Types: AM, FM, PM, DSB-AM, QAM, ASK, FSK, 3FSK, 4FSK, PSK, BPSK, QPSK, OSK, PWM, SUM
- Sweep Modes: Linear, logarithmic, list, and step sweep
- Burst Modes: Supports pulse string and frequency burst output
- Digital Protocol Simulation: SPI, I2C, UART
- SNR Testing: One-click signal-to-noise ratio output
- Dual Channel Modulation: Internal/external modulating, supports simultaneous trigger control
- Hardware Frequency Counter: Up to 800 MHz with AC/DC coupling
- Software Tools: Includes powerful PC software and arbitrary waveform editor

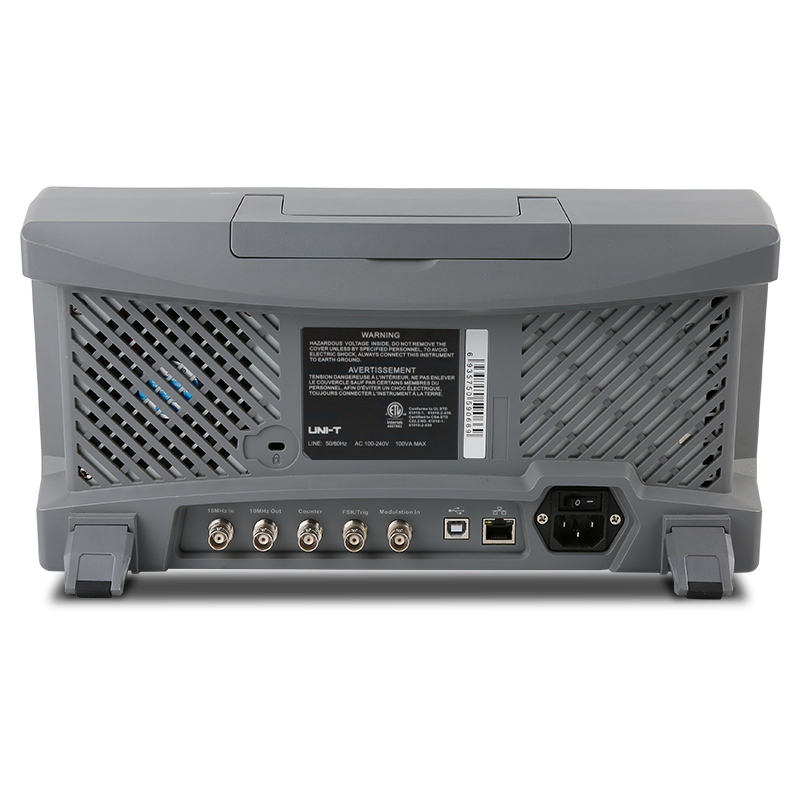

- Interfaces: USB Host, USB Device, LAN, 10 MHz clock input/output
- User Interface: Multi-purpose knob and numeric keypad for efficient operation
Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£4,481.00
excl. VAT
Unit price
/
Unavailable
£5,377.20
Incl. VAT
|
£2,155.00
excl. VAT
Unit price
/
Unavailable
£2,586.00
Incl. VAT
|
£786.00
excl. VAT
Unit price
/
Unavailable
£943.20
Incl. VAT
|
£698.00
excl. VAT
Unit price
/
Unavailable
£837.60
Incl. VAT
|
| Max. Output Frequency | ||||
| Max. Output Frequency | 500 MHz
| 350 MHz
| 160 MHz
| 120 MHz
|
| Channel | ||||
| Channel | 4
| 4
| 2
| 2
|
| Vertical Resolution (VR) | ||||
| Vertical Resolution (VR) | 16-bit/14bit
| 16-bit/14bit
| 16-bit
| 16-bit
|
| Sample Rate | ||||
| Sample Rate | ||||
| Arbitrary Wave lenght | ||||
| Arbitrary Wave lenght | ||||
| Display | ||||
| Display | 10.1 inch TFT LCD (touch screen)
| 10.1 inch TFT LCD (touch screen)
| 8 inches TFT LCD
| 8 inches TFT LCD
|
