Specifications
Specifications
-
Max. Output Frequency60 MHz
-
Channels2
-
Vertical Resolution (VR)14-bit
-
Sample Rate
-
Arbitrary Wave lenght
-
Display4.3 inches TFL LCD

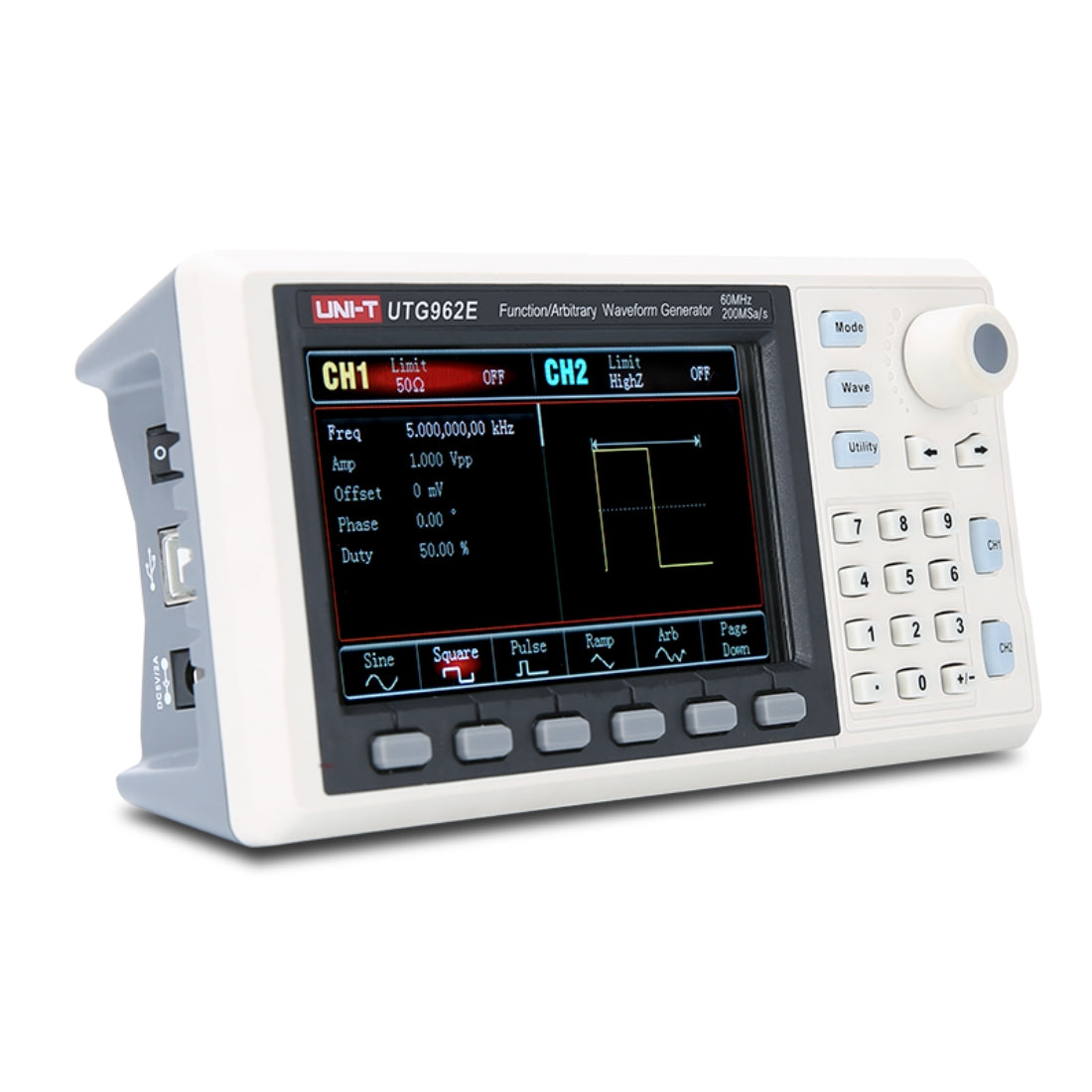

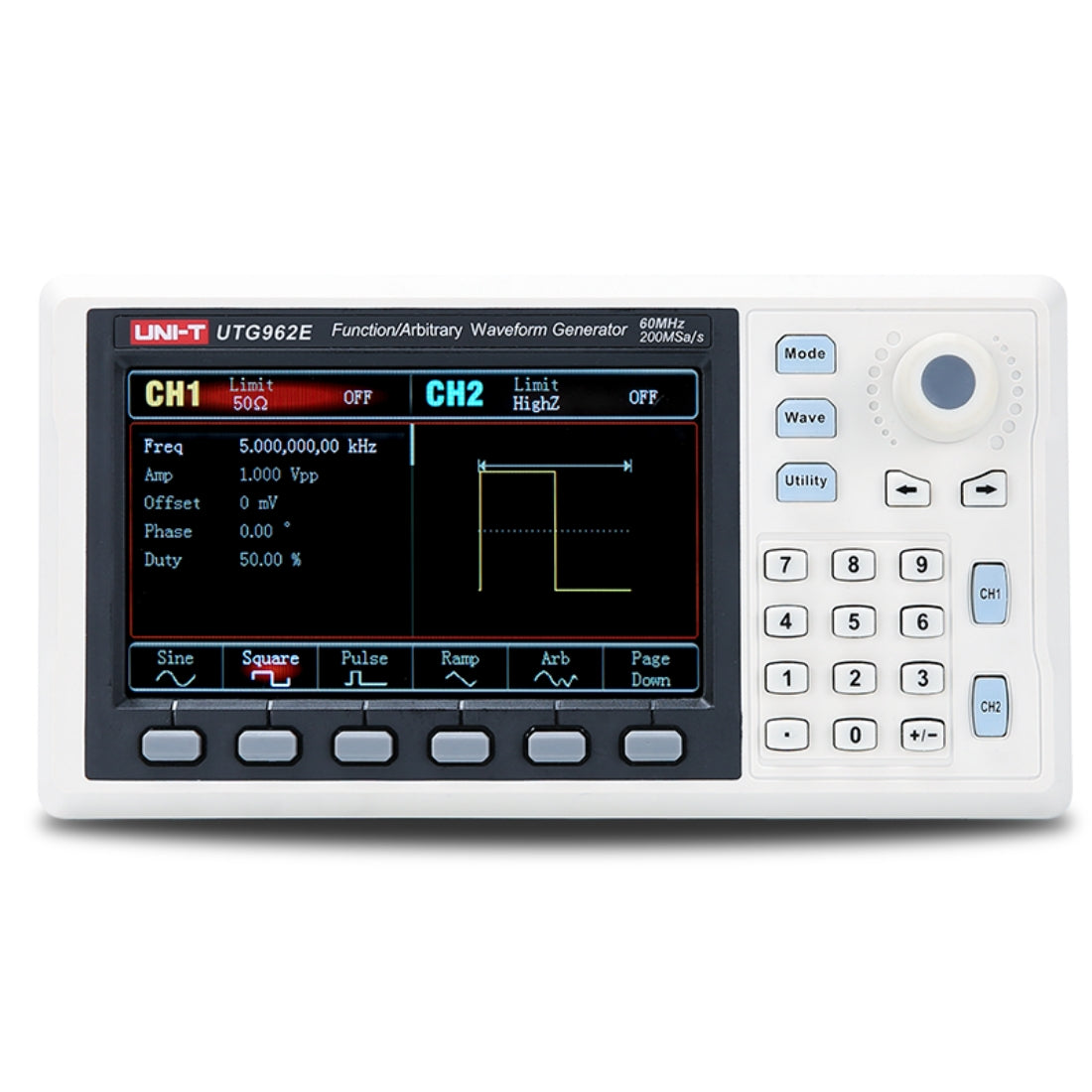

Description
- Model: UTG962E
- Channels: 2
- Max Frequency: 60 MHz (Sine wave)
- Sampling Rate: 200 MSa/s
- Vertical Resolution: 14-bit
- Waveforms: Sine, Square, Ramp, Pulse, Noise, DC, Arbitrary
- Modulation Types: AM, FM, PM, FSK, Line, Log
- Working Modes: Output gating, continuous, modulation, frequency sweep
- Sine Wave Output: 1 μHz – 60 MHz, 1 μHz resolution
- Square Wave Output: 1 μHz – 20 MHz, ≤16 ns rise/fall time, 0.01%–99.99% duty ratio
- Ramp Wave: 1 μHz – 400 kHz, 3%±2mV nonlinearity, 0.0%–100.0% symmetry
- Pulse Wave: 1 μHz – 20 MHz, 80 ns minimum width, 15 ns–8 s variable edge
- Noise: Bandwidth: 60 MHz (–3 dB typical), DC offset ±5V
- Arbitrary Wave: 1 μHz – 10 MHz, 4 kpts length, 14-bit resolution, 200 MSa/s
- Amplitude Range: ≤10 MHz: 1 mVpp – 10 Vpp (50Ω), 60 MHz: 1 mVpp – 5 Vpp (50Ω)
- Amplitude Flatness: 10 MHz: ±0.1 dB, 60 MHz: ±0.3 dB
- Modulation Support:
- AM: 2 mHz–200 kHz, 0%–100% depth
- FM/PM: 2 mHz–200 kHz, ±15 MHz deviation
- FSK: Internal/external source, square wave modulation

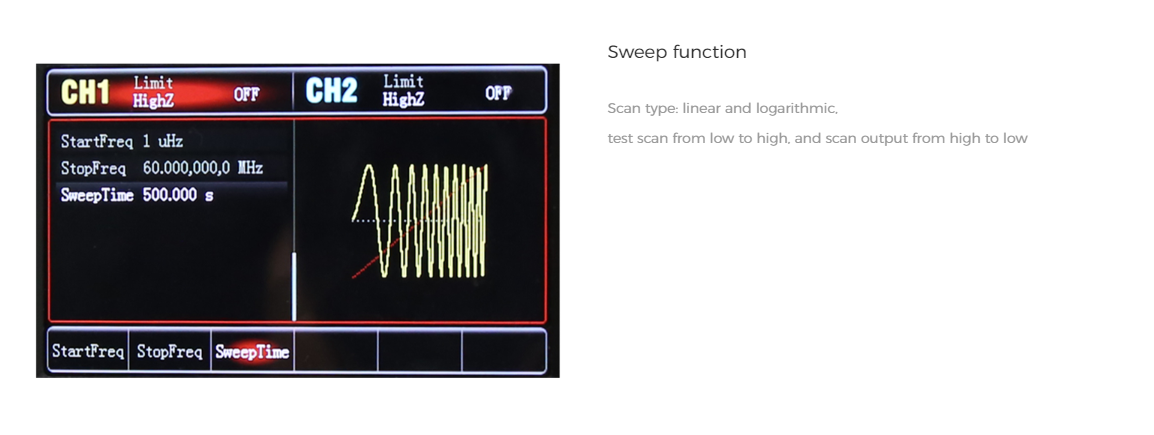

- Frequency Sweep: Linear/Log, 1 ms – 500 s, 0.1% resolution
- Sync Signal: TTL compatible, output frequency 1 μHz – 2 MHz
- Trigger Input: TTL compatible, 10 kΩ impedance
- Frequency Counter: 100 mHz – 100 MHz range, ±1 ppm accuracy, 1 Hz resolution
- Nonvolatile Storage: 24 waveforms
- Output Protection: Max 42 Vpk to ground
- Display: 3.5-inch TFT LCD (480 × 272 resolution)
- Power Supply: 100–240 V AC, <10 W consumption
- Temperature Range: Operating: 10°C – 40°C, Non-operating: –20°C – 60°C
