UNI-T UTS3021B Spectrum Analyser
£1,794.99
excl. VAT
Unit price
/
Unavailable
£2,153.99
Incl. VAT
The Uni-Trend UTS3021B Performance-Series Spectrum Analyzer is an affordable 2.1GHz signal analyzer for EMI pre-compliance testing and a variety of other applications.
Freq: 9kHz~2.1GHz, RBW: 1Hz~3MHz, DANL: -161dBm/Hz, Phase noise: -98dBc/Hz, Full Amplitude Accuracy: <0.7dB, Display: 10.1in touch screen, USB/LAN, SCPI
Variants
Variants
Overview
Overview
| Feature | Specification |
|---|---|
| Model Number | UTS3021B |
| Frequency Range | 9kHz ~ 2.1GHz |
| RBW | 1Hz ~ 3MHz |
| DANL | -161dBm/Hz |
| Tracking Generator Included | Optional |
| Phase Noise | -98dBc/Hz @10kHz |
| Display Size (in) | 10.1Inch TFT LCD |
| Touchscreen | true |
| Warranty | 3 years |
| Shipping Dimmensions (L x W x H) | 21 in x 12 in x 16 in |
| Shipping Weight | 4.55 Kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable |
| For additional product specifications, please refer to the attached PDF. |
|
Related Documents
Related Documents
User Manual
Datasheet
Programming Manual
Quick Guide
Service Manual
Software
Firmware
Programming Manual
Quick Guide
Service Manual
Software
Firmware
Service Manual
Software
Firmware
Firmware
Couldn't load pickup availability
📹 Related Videos
📹 Related Videos
Measurement of third-order intermodulation
Advanced measurement
Various detection modes
40001 scanning points
Peak list

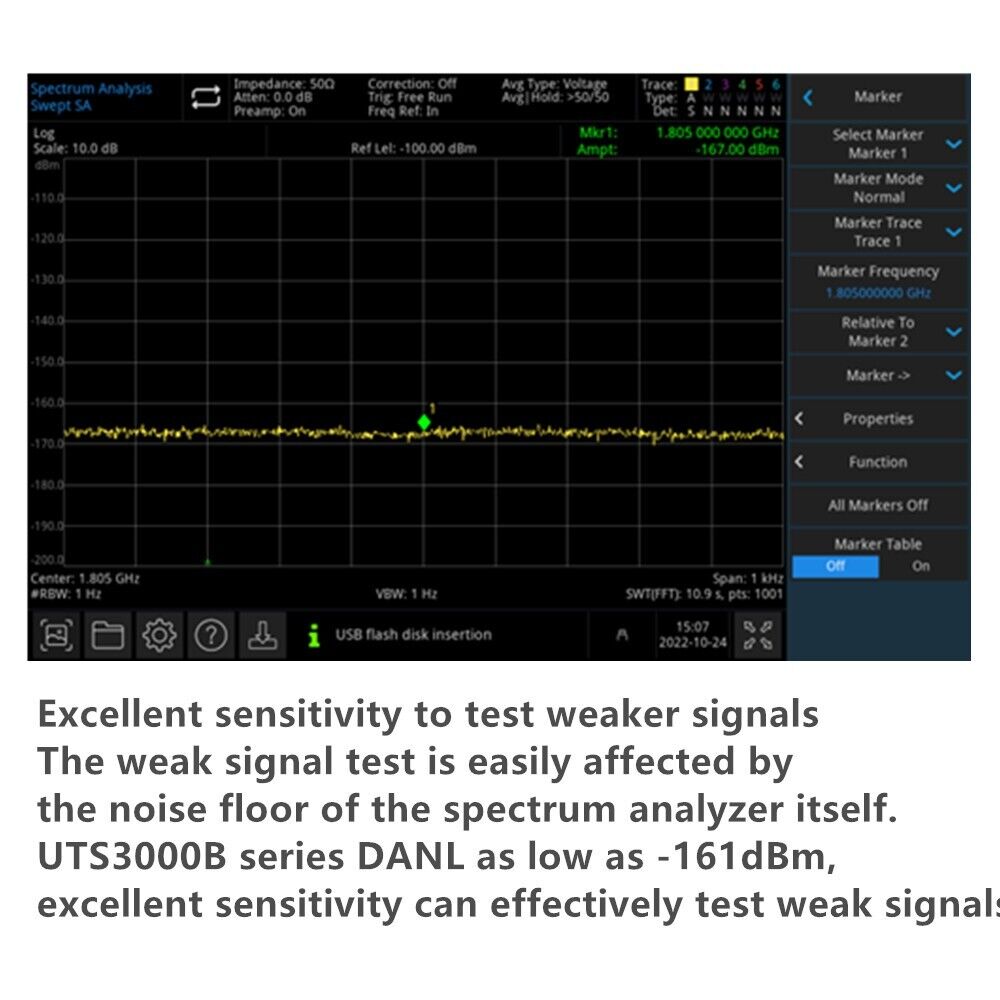

Ultra-low noise floor
Basic measurement
6 traces

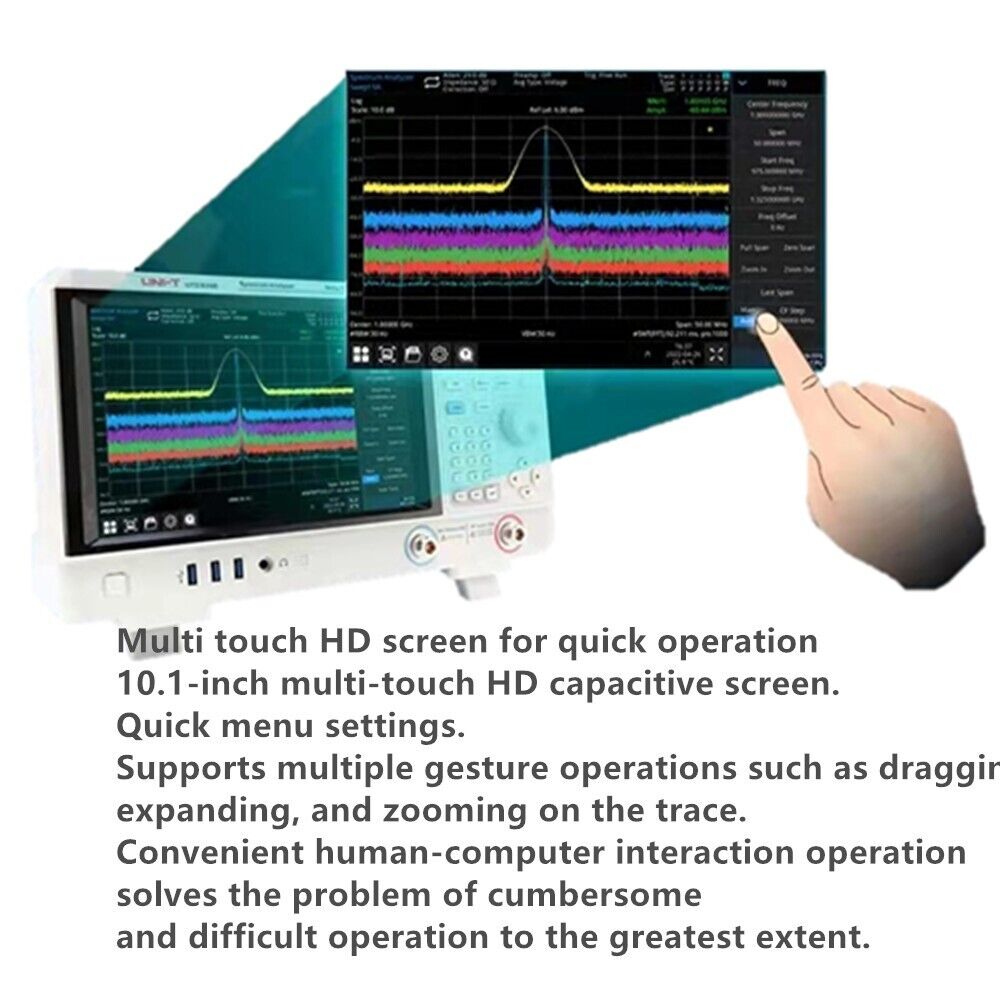

10.1inch high definition touch screen
EMI
