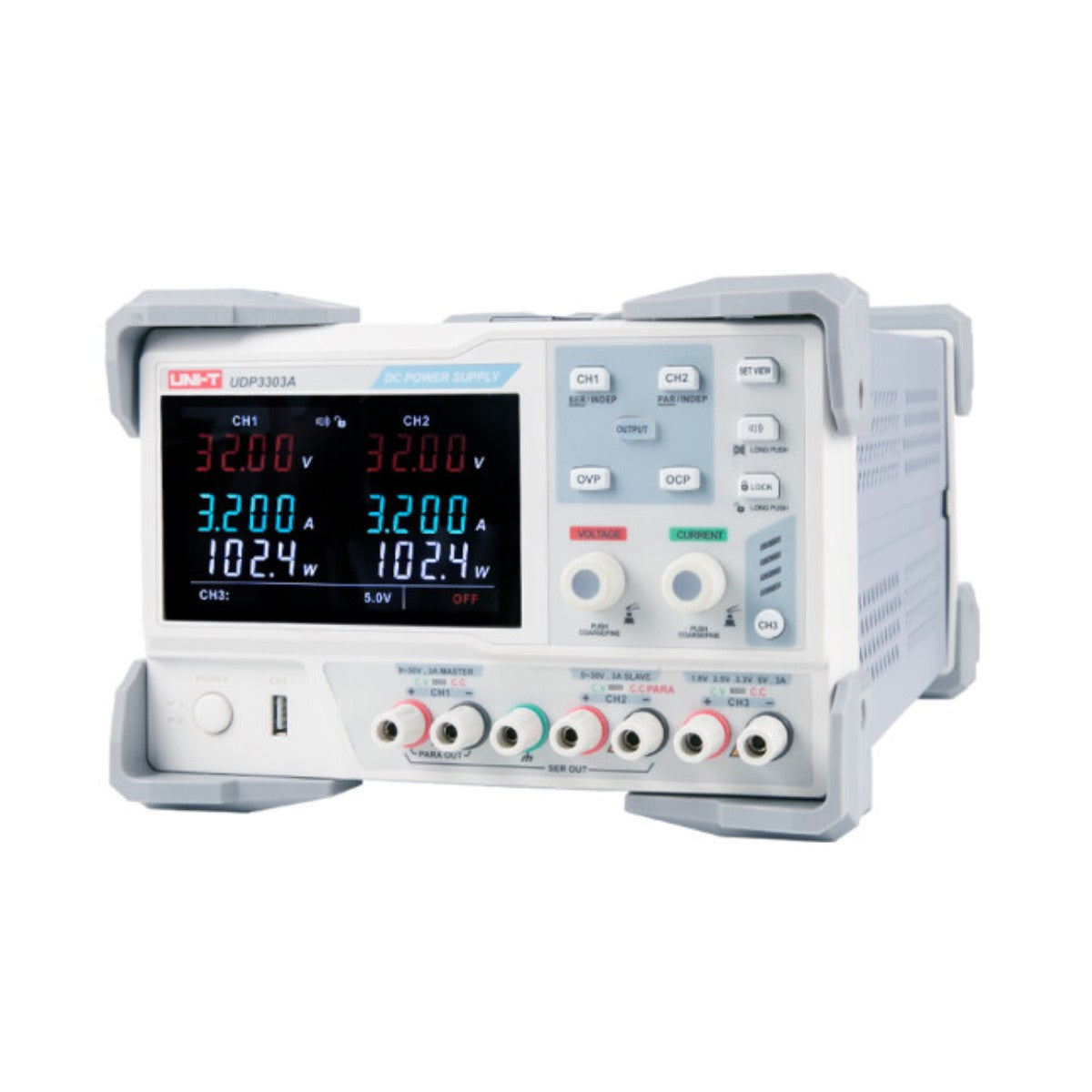

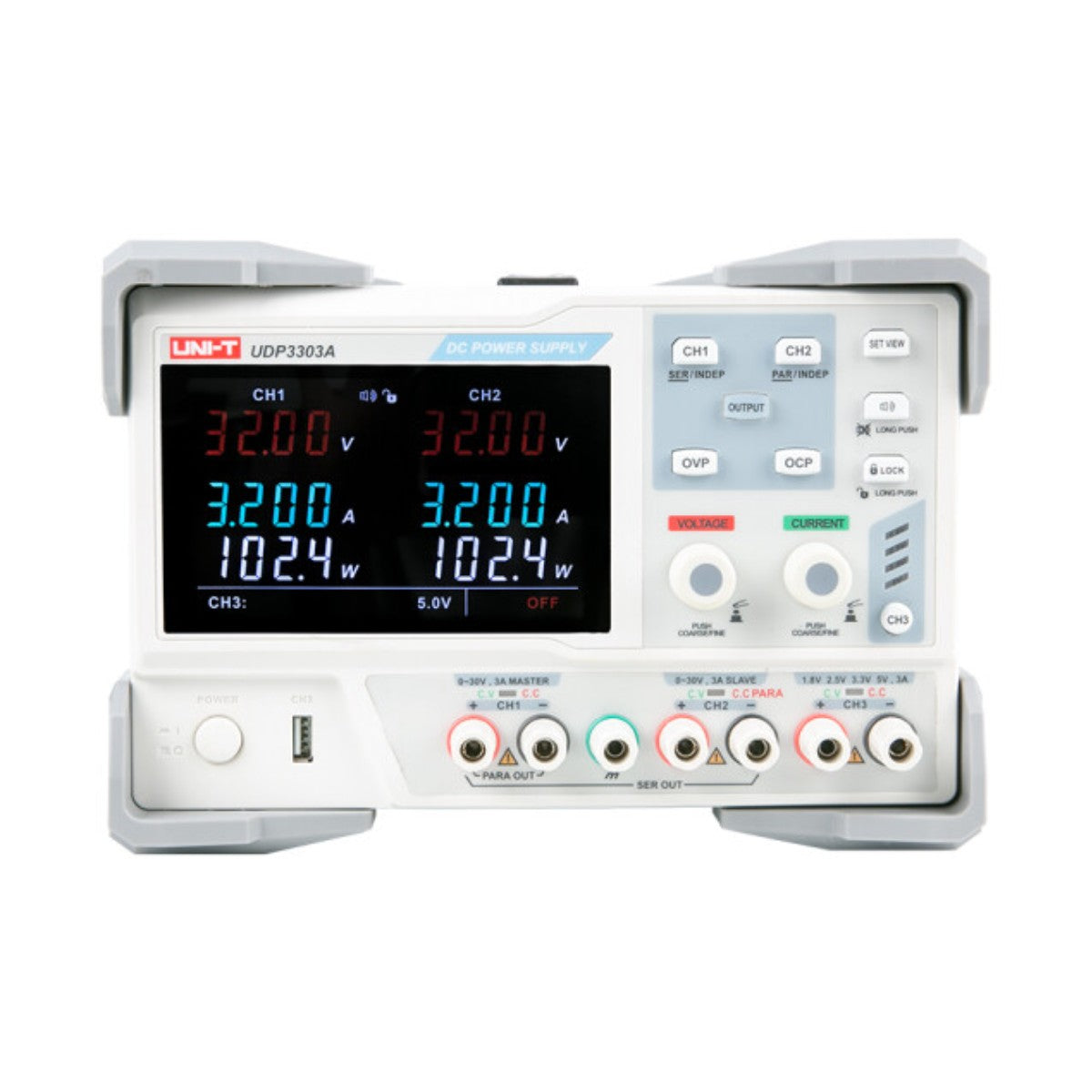

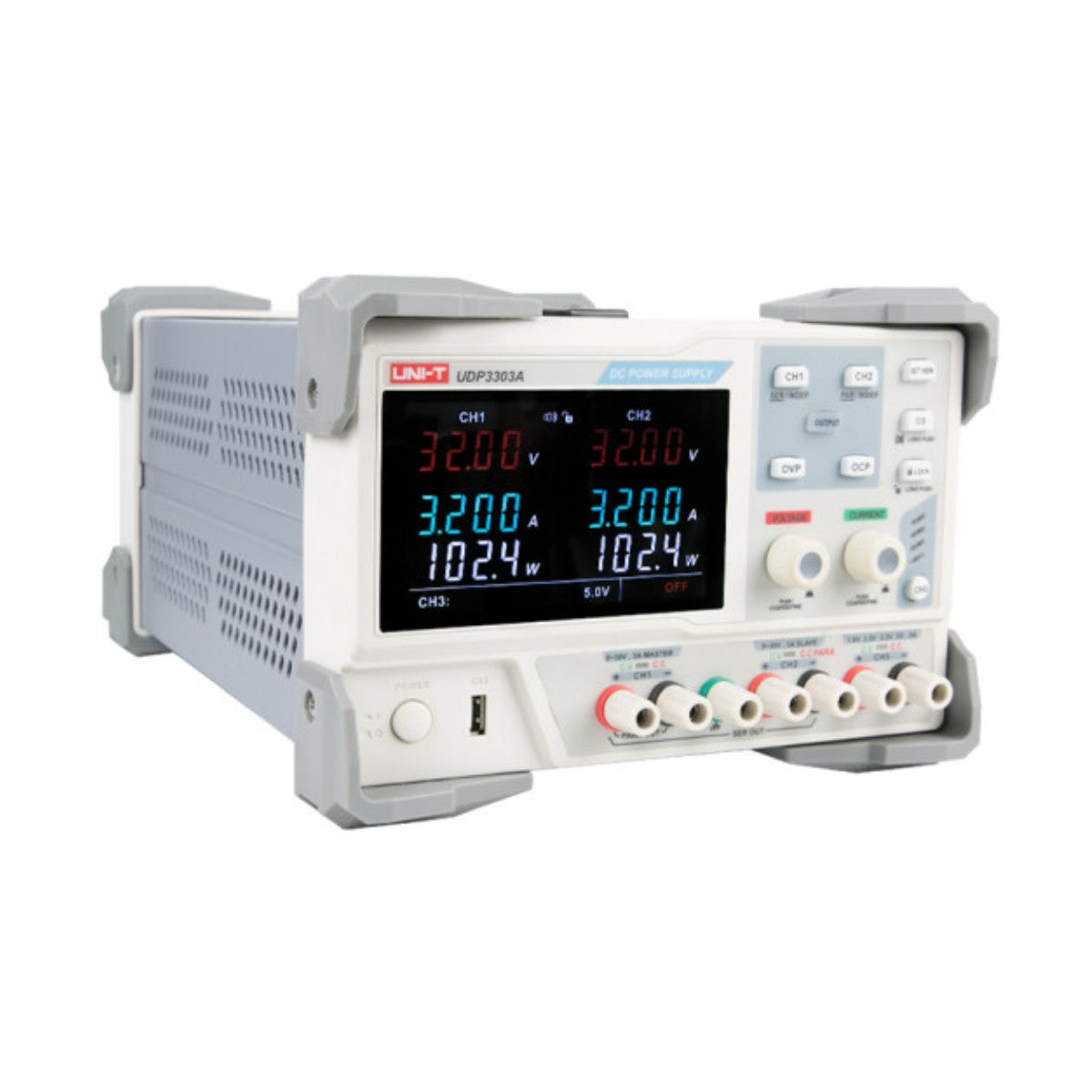

UNI-T UDP3303A Power Supply

£232.00 excl. VAT
£278.40 Incl. VAT

Variants

Buttons

A cost-effective program control DC supply with outstanding performance.

3CH, CH1/CH2: 0~30V/0~3A, CH3: 1.8V/2.5V/3.3V/5.0V/3.2A, Resolution: 10mV/1mA, Watts: 195W, Accuracy: <0.1%+30mV/<0.5%+2mA, Digital I/O



Overview

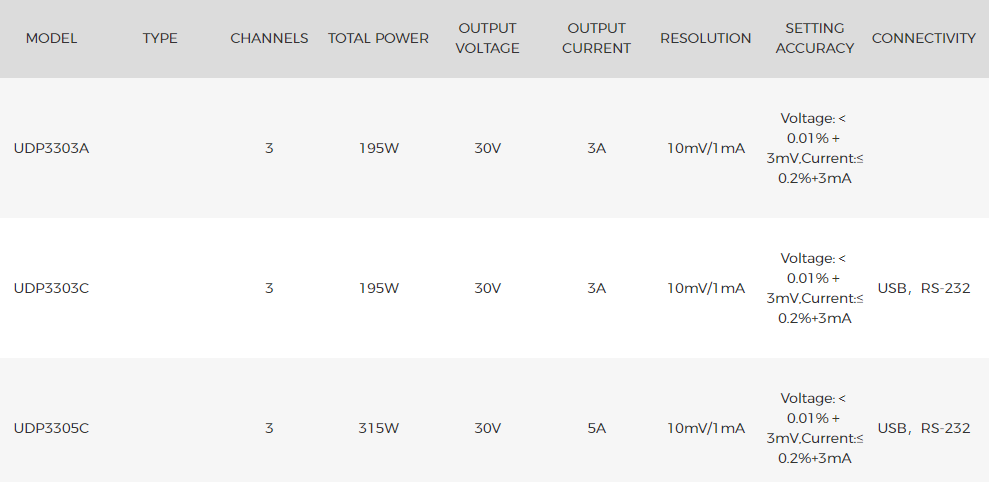

Feature Specification
Model Number UDP3303A
Channels 3Ch
Output Voltage 30V
Output Current 3A
Total Power 195W
Max V Resolution 10mV
Max A Resolution 1mA
Connectivity  -
Setting Accuracy
Voltage:<0.01%+3mV,Current:≤0.2%+3mA
Warranty 3 years
Shipping Dimensions (W×H×D) 445×365×300(mm)
Shipping Weight 10.2Kg
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines
For additional product specifications, please refer to the attached PDF.
