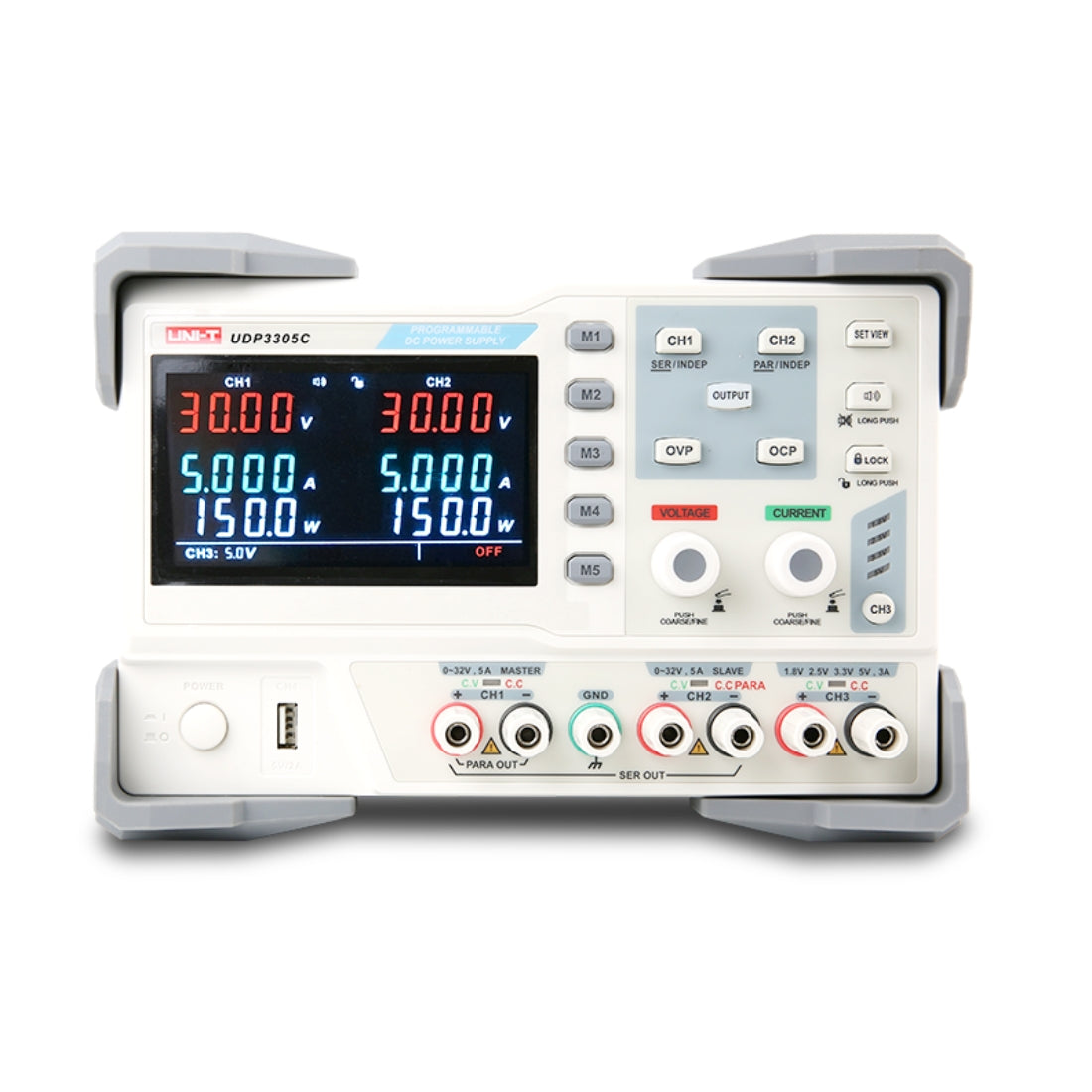

UNI-T UDP3305C Power Supply

Name: UNI-T UDP3305C Power Supply
Brand: UNI-T
Price: 281.00 GBP
Availability: InStock

£281.00 excl. VAT

£337.20 Incl. VAT

The Uni-Trend UDP3305c programmable linear DC power supply is a diverse and cost-effective unit for teaching, scientific research, and measuring in the industrial field.

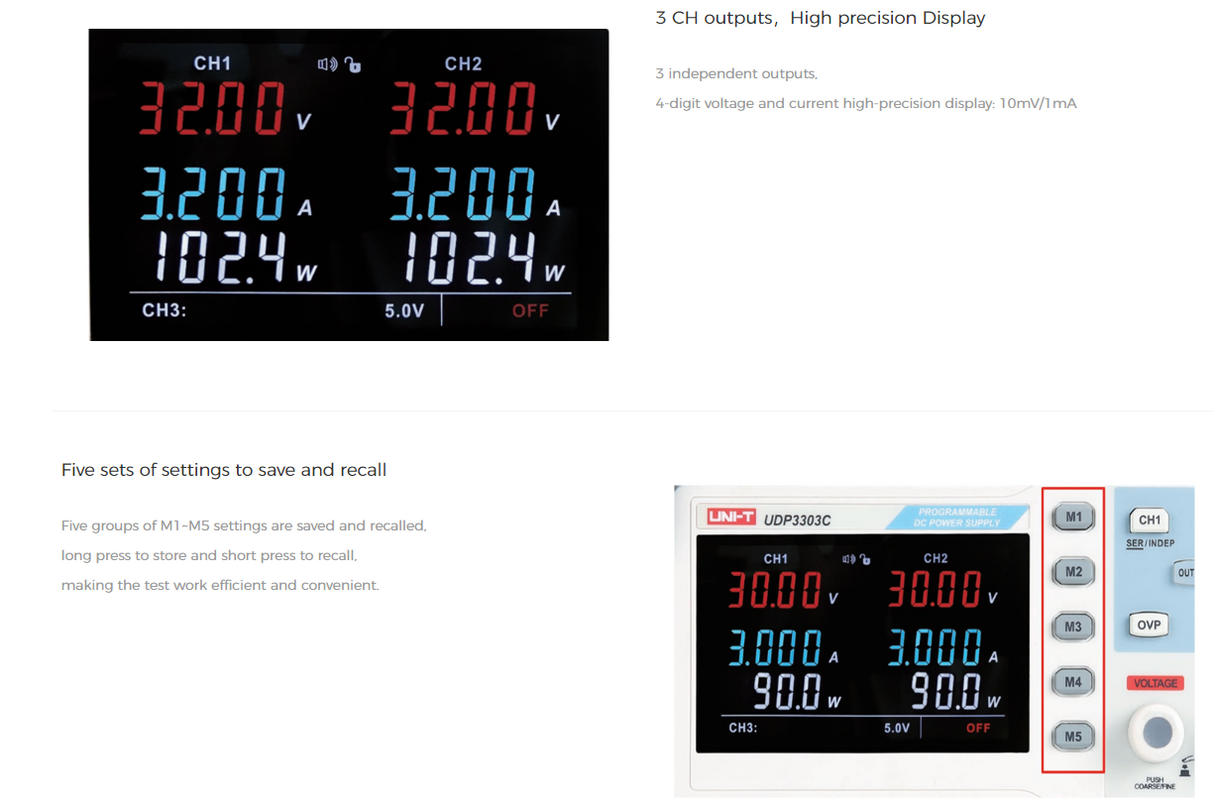

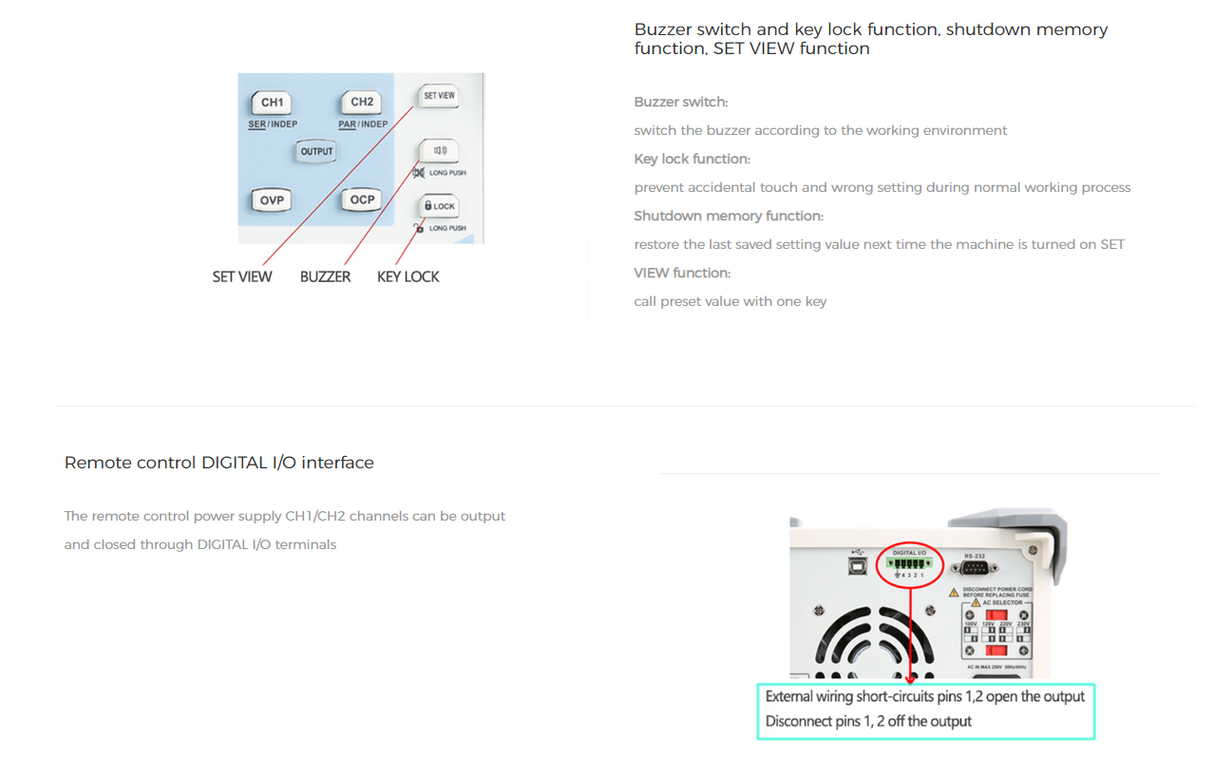

3CH, CH1/CH2: 0~30V/0~5A, CH3: 5V/3.2A, Resolution: 10mV/1mA, Watts: 315W, Accuracy: <0.1%+30mV/<0.5%+2mA, USB/RS232, Digital I/O

Variants

Buttons

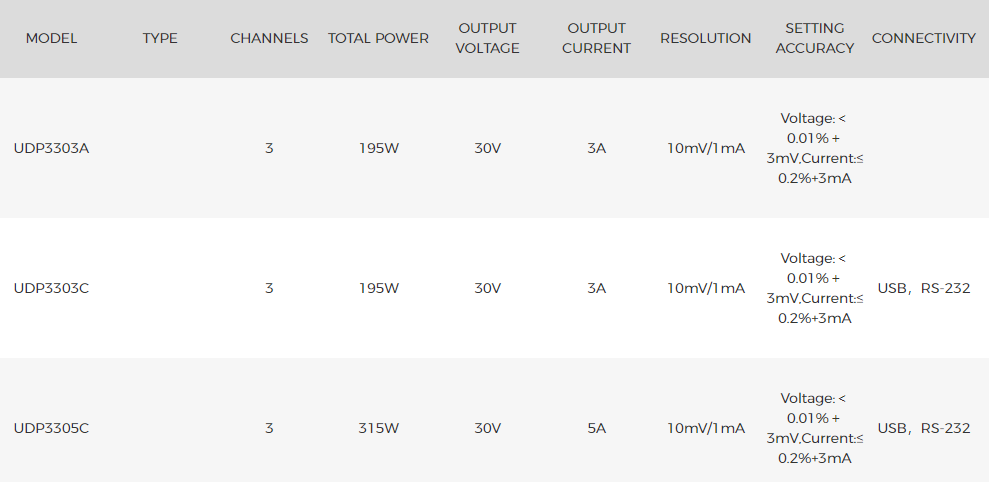

UDP3305C UDP3303C UDP3303A

Overview

Feature	Specification
Model Number	UDP3305C
Channels	3Ch
Output Voltage	30V
Output Current	3A
Total Power	195W
Max V Resolution	10mV
Max A Resolution	1mA
Connectivity	RS-232, USB
Setting Accuracy	Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
Warranty	3 years
Shipping Dimensions (W×H×D)	445×365×300(mm)
Shipping Weight	10.2Kg
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Power cord, USB2.0 printing cable, Aligator Clip Test Line, RS232 Communication lines
For additional product specifications, please refer to the attached PDF.
