Specifications
Specifications
-
Type
-
Channels4
-
Total Power
-
Output VoltageCH1/CH2:0~30V CH3:0~6V CH4:5V
-
Output CurrentCH1/CH2:0~5A CH3:0~3A CH4:2A
-
Resolution1mV,1mA
-
Accuracy<0.03%+10mV <0.2%+5mA
-
ConnectivityUSB Device,RS-232,LAN,USB host,Digital I/O
Description
- Maximum Power: Up to 328W
- Channels: Four channel independent output: CH1/CH2: 0~30V / 5A, CH3: 0~6V / 3A, CH4: 5V / 2A
- Multiple Protection: OCP, OVP, OTP
- Excellent Load Regulation and Line Regulation
- Ultra Low Output Ripple and Noise
- Support One Key Serial and Parallel Output Function

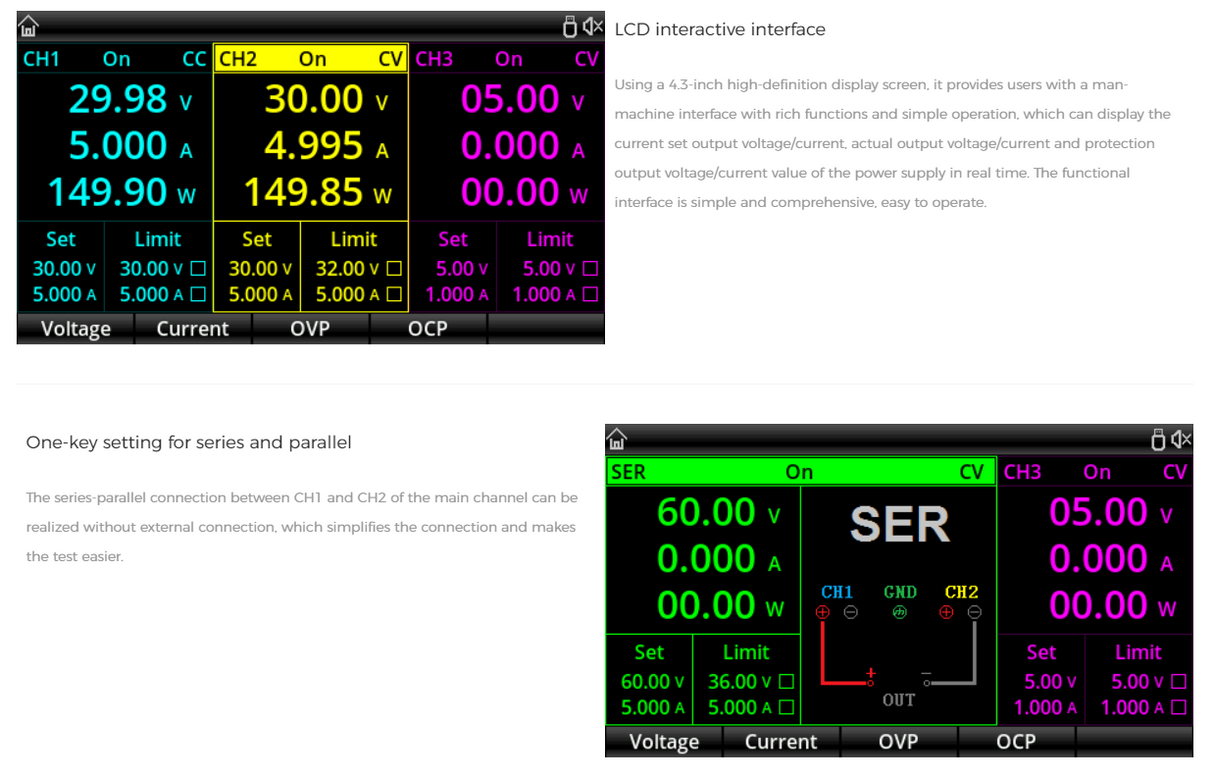

- Display: 4.3-inch TFT display can show three channels and multiple parameters at the same time

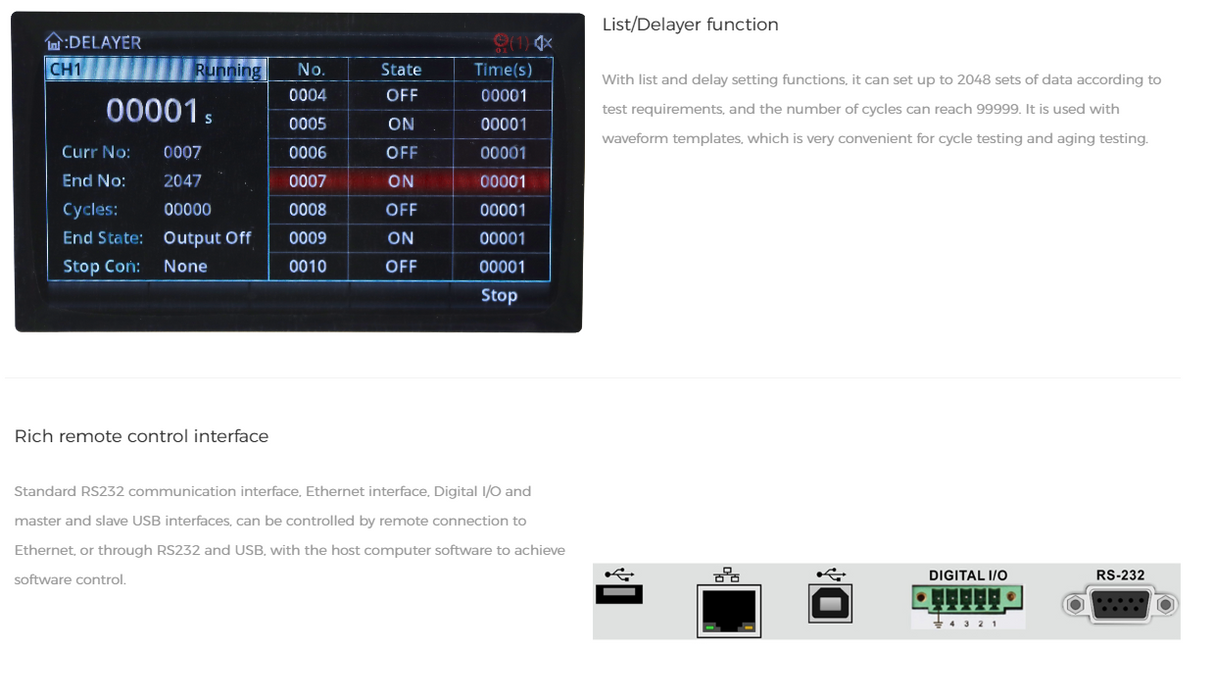

- List / Delayer Function: Controls voltage and current output as required
- External Trigger Function: Enables industrial automation control

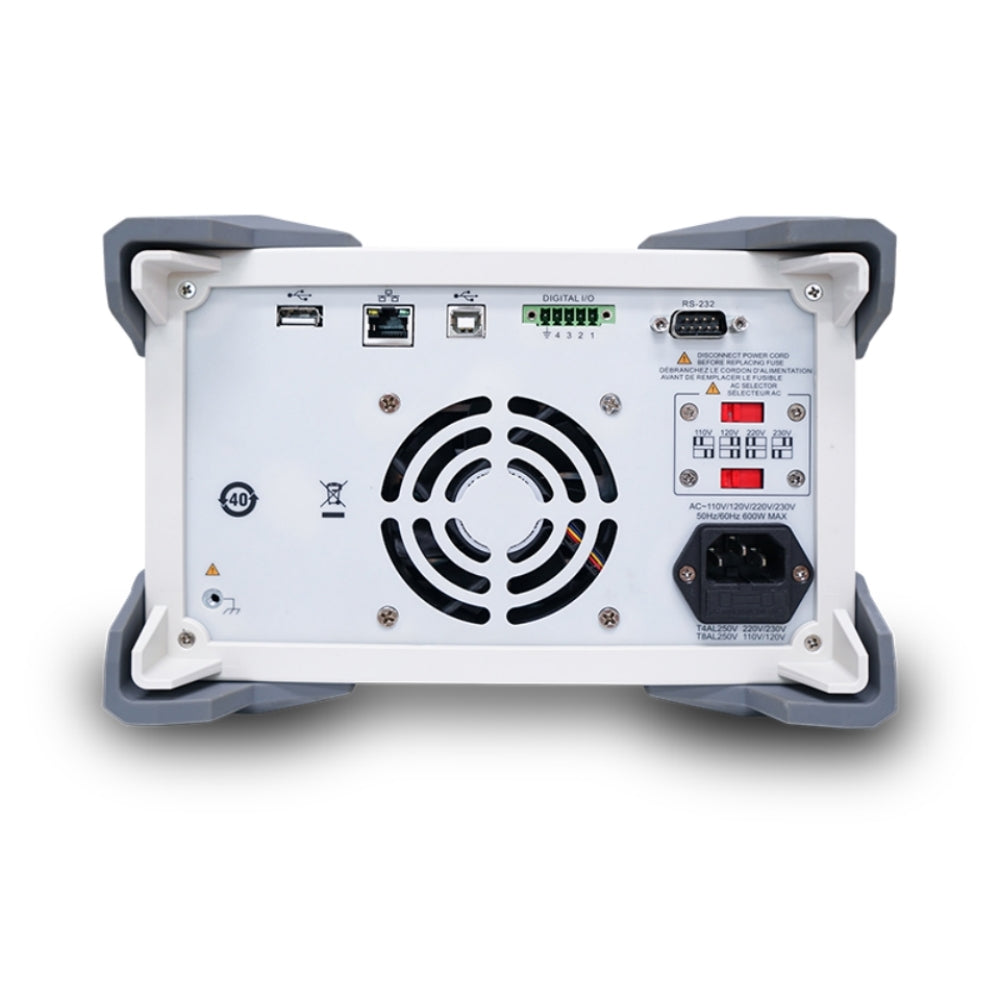

- Connectivity:USB Host, USB Device, LAN, RS232, Digital IO
- Waveform Display Function: Real-time and dynamic display of output voltage, current, and power waveform
- Intelligent Fan Speed Control: Effectively reduces fan noise during operation
- File Storage: Supports 10 groups of file storage and transfer out, supports USB flash disk reading and writing
- Display Accuracy: High precision display with five-digit voltage and four-digit current, with resolutions of 10mV / 1mA and 1mV / 1mA
- Keyboard Lock Function: Prevents misoperation
- Remote Control: Supports SCPI remote command control

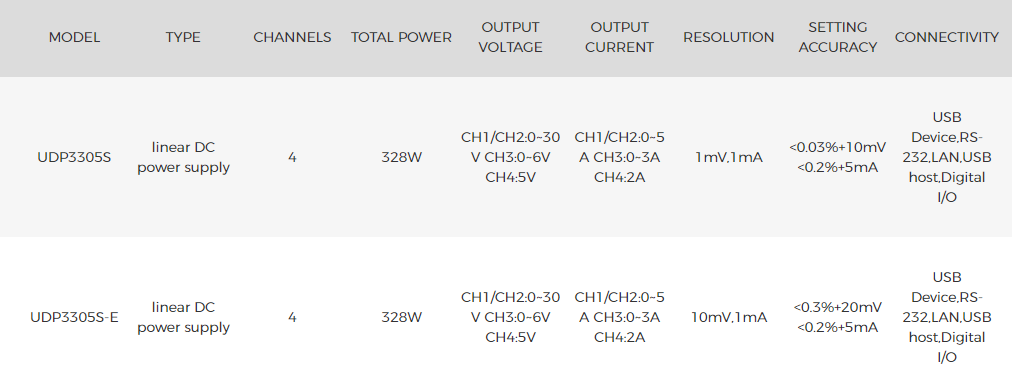

Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£415.00
excl. VAT
Unit price
/
Unavailable
£498.00
Incl. VAT
|
£307.00
excl. VAT
Unit price
/
Unavailable
£368.40
Incl. VAT
|
£249.00
excl. VAT
Unit price
/
Unavailable
£298.80
Incl. VAT
|
£281.00
excl. VAT
Unit price
/
Unavailable
£337.20
Incl. VAT
|
| Type | ||||
| Type | ||||
| Channel | ||||
| Channel | 4
| 4
| 3
| 3
|
| Total Power | ||||
| Total Power | ||||
| Output Voltage | ||||
| Output Voltage | CH1/CH2:0~30V CH3:0~6V CH4:5V
| CH1/CH2:0~30V CH3:0~6V CH4:5V
| 30V
| 30V
|
| Output Current | ||||
| Output Current | CH1/CH2:0~5A CH3:0~3A CH4:2A
| CH1/CH2:0~5A CH3:0~3A CH4:2A
| 3A
| 3A
|
| Resolution | ||||
| Resolution | 1mV,1mA
| 10mV,1mA
| 10mV/1mA
| 10mV/1mA
|
| Accuracy | ||||
| Accuracy | <0.03%+10mV <0.2%+5mA
| <0.3%+20mV <0.2%+5mA
| Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
| Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
|
| Connectivity | ||||
| Connectivity | USB Device,RS-232,LAN,USB host,Digital I/O
| USB Device,RS-232,LAN,USB host,Digital I/O
| USB, RS-232
| USB, RS-232
|
