UNI-T UDP6730 Power Supplies

Name: UNI-T UDP6730 Power Supplies
Brand: UNI-T
Price: 279.00 GBP
Availability: InStock

£279.00 excl. VAT

£334.80 Incl. VAT

The UDP6730 is a versatile programmable switching DC power supply with a single channel and a high power capacity of 360W. It offers an adjustable voltage range of 0-40V and current range of 0-30A, featuring fine 10mV voltage and 1mA current resolution for precise control. The device maintains high accuracy levels, with <0.1%+10mV for voltage and <0.3%+30mA for current. It also includes RS-232 connectivity for remote control and monitoring.

Variants

Buttons

UDP6731 UDP6730 UDP6721 UDP6720

Overview

Feature	Specification
Model Number	UDP6730
Channels	1Ch
Output Voltage	0~40V
Output Current	0~30A
Total Power	360W
Max V Resolution	10mV
Max A Resolution	1mA

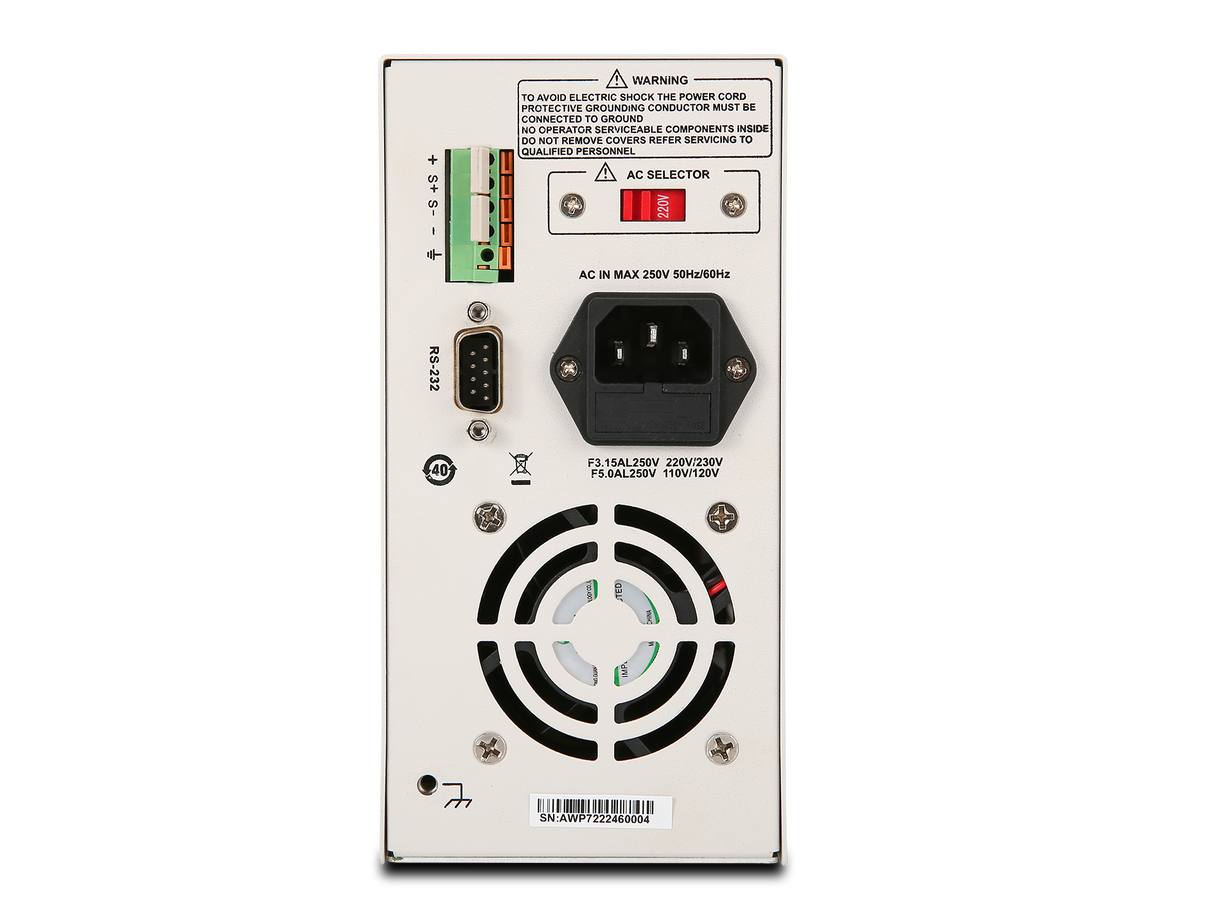

Connectivity	RS-232
Setting Accuracy	<0.1%+10mV <0.3%+30mA
Programmable	true
Warranty	3 years
Shipping Dimensions (W×H×D)	87×174×255(mm)
Shipping Weight	2.5Kg
Documents	English download guide, multi-language safety manual, calibration report (COC)
Included Accessories	Power cord
