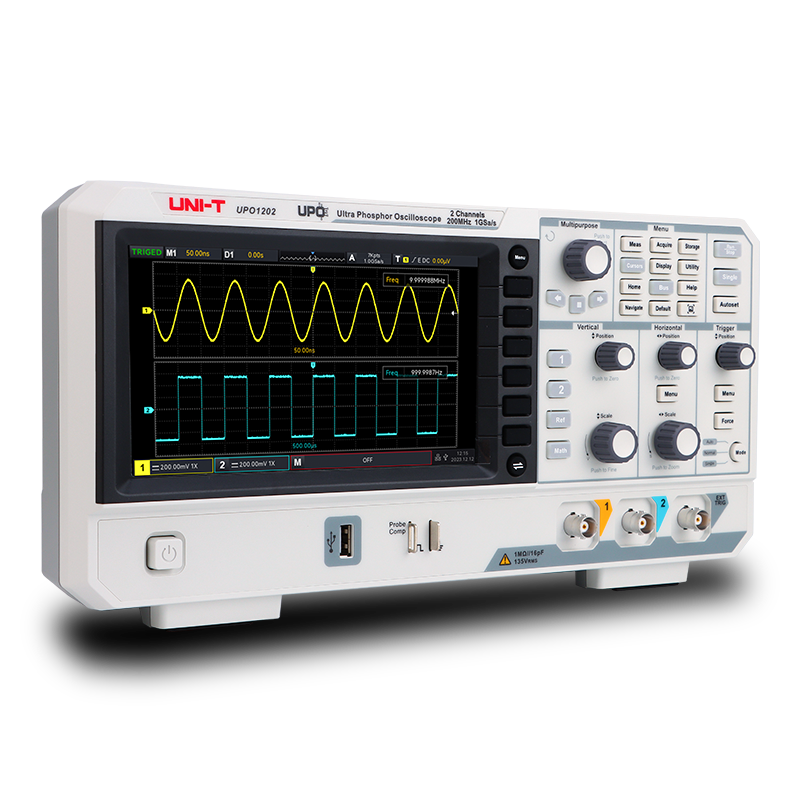

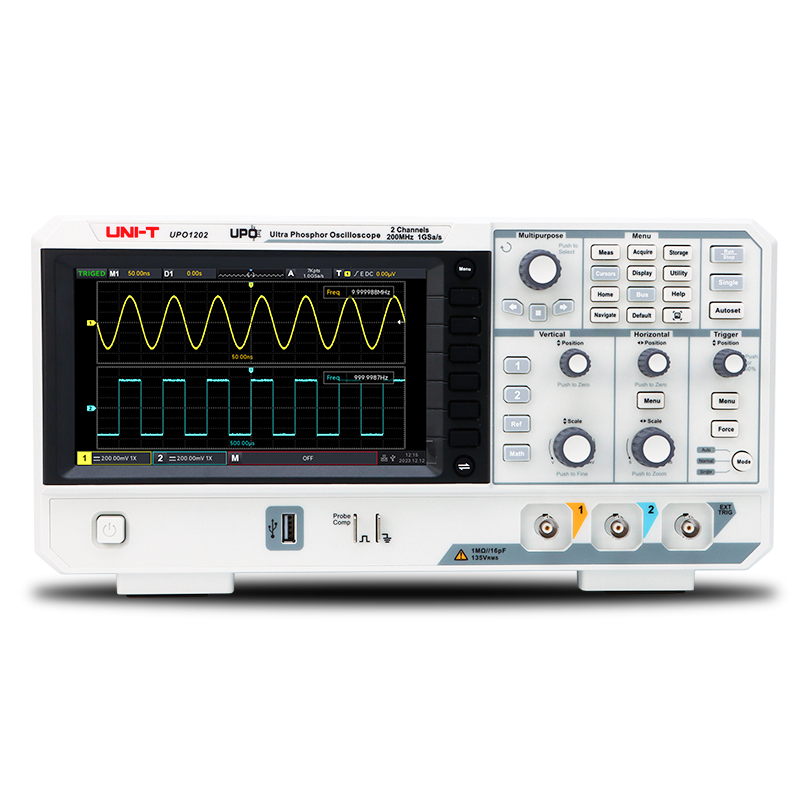

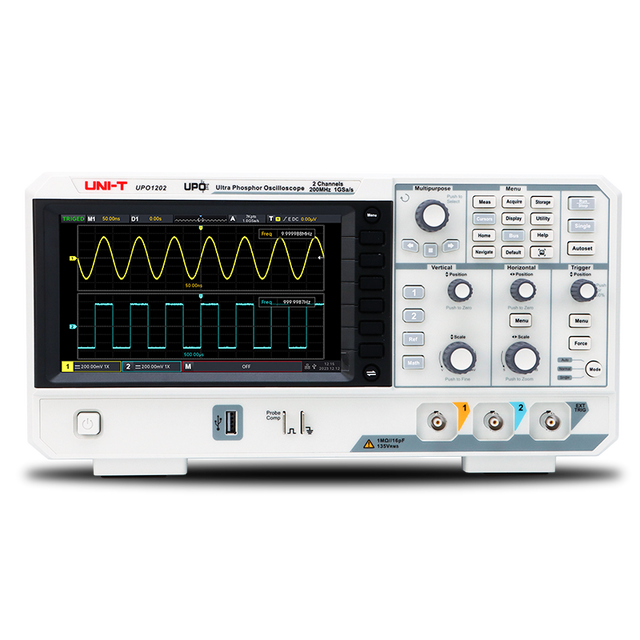

UNI-T UPO1102 Digital Oscilloscope
Key Features:
- Bandwidth: 100 MHz analog bandwidth
- Channels: 4 analog channels
- Sampling Rate: Up to 2 GSa/s real-time sampling
- Memory Depth: 56 Mpts for detailed waveform analysis
- Waveform Capture Rate: Up to 500,000 wfms/s for fast signal visualization
- Display: 7-inch high-resolution display for clear signal viewing
- Ideal For: Basic to intermediate debugging, education, and electronic design applications
Variants
Variants
Couldn't load pickup availability
5-Year Warranty Coverage
Enjoy peace of mind with a 3-Year Standard Warranty, plus receive an additional 2 years when you register your product on our website.
👉 Register now at: Product Registration
Specifications
Specifications
-
Bandwidth100 MHz
-
Channel2
-
Real-Time Sample Rate2 GSa/s
-
Waveform Capture Rate500,000 wfms/s
-
Max. Memory Depth56 Mpts
-
Waveform Generator-
Description
- Analog Channel Bandwidth: 100 MHz
- Analog Channels: 2
- Real-Time Sample Rate: 1 GSa/s (non-interleaved)
- Vertical Scale: 500 μV/div to 20 V/div
- Low Noise Floor: <60 μVrms for accurate signal observation
- Maximum Memory Depth: 56 Mpts per channel
- Waveform Capture Rate: Up to 500,000 wfms/s (Fast Acquire mode)
- Real-Time Waveform Recording: Up to 120,000 frames uninterrupted
- Automatic Measurements: 36 waveform parameters with screen and cursor area modes
- Frequency Counter: 6-digit hardware counter included
- Multi-Scopes 2.0: Dual-channel independent fluorescent waveform display
- DVM Function: AC/DC true RMS measurement with high accuracy
- Waveform Math: FFT, addition, subtraction, multiplication, division, digital filtering, logical operations, and advanced functions
- Enhanced FFT: 1M-point FFT with support for frequency domain settings, waterfall display, demodulation, and marker functions
- Trigger Modes: Edge, pulse width, video, slope, runt, window, delay, timeout, duration, setup & hold, Nth edge, and pattern
- Serial Bus Trigger & Decode: Supports RS232, I2C, and SPI
- Full Memory Hardware Decoding: Real-time protocol analysis for RS232, I2C, and SPI
- Display: 7-inch WVGA (800×480) TFT LCD with 256-level grayscale rendering
- Navigation & Markers: Includes waveform navigation, segmentation, and markers

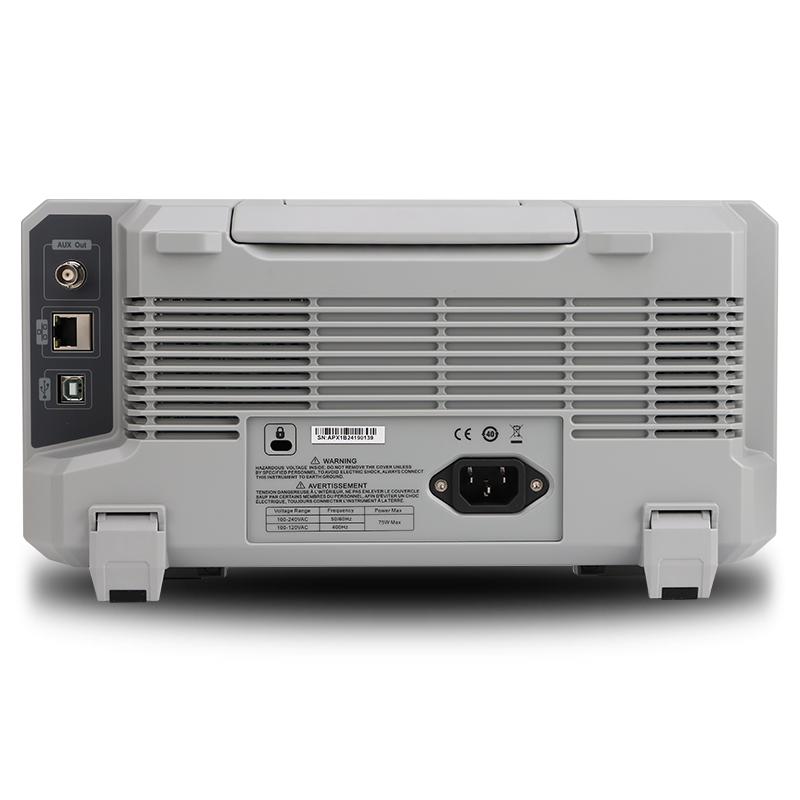

- Connectivity: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM)
- Programmability: SCPI command set supported
- Remote Access: Built-in web server for browser-based control and monitoring
