13% off

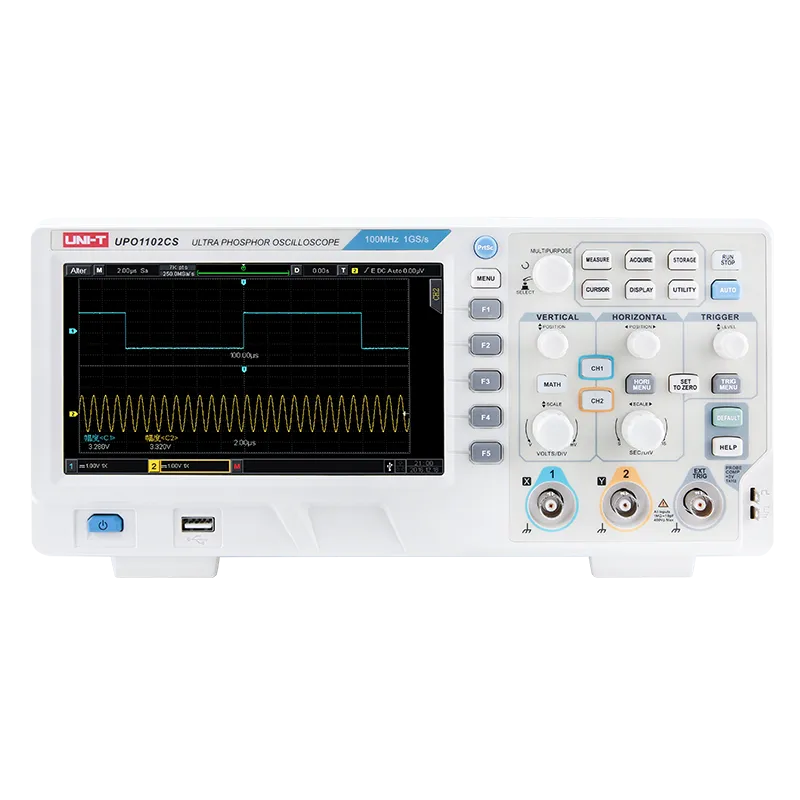

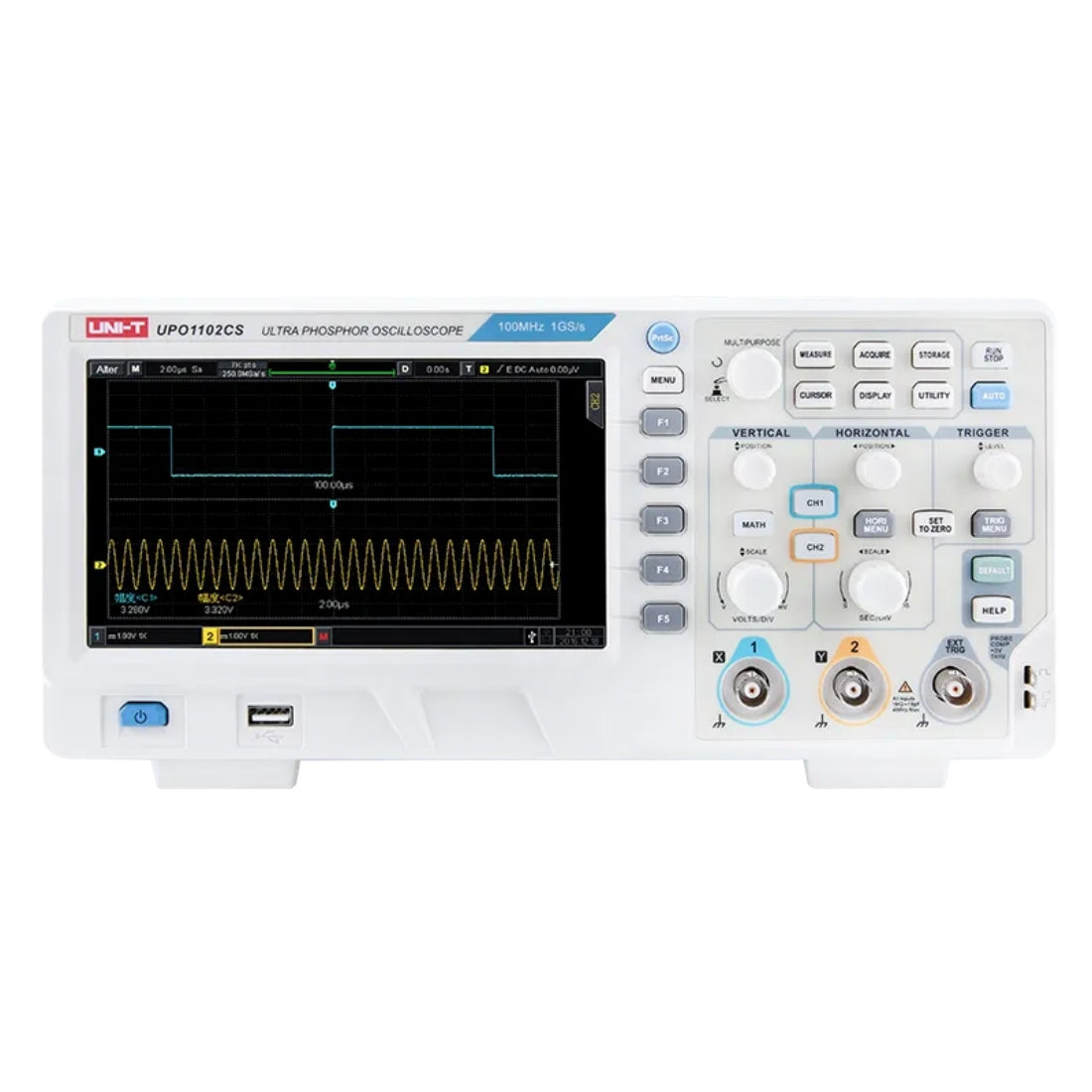

UNI-T UPO1102CS Digital Oscilloscope
£199.00
excl. VAT
£229.00
Unit price
/
Unavailable
£238.80
Incl. VAT
The UPO1102cs with it's high sampling rate is used in a variety of electronic and electrical applications.
100MHz, 1 GSa/s, 2 CH, Memory Depth: 56 Mpts, 500,000 wfm/s, 7in display
Variants
Variants
Overview
Overview
| Feature | Specification |
|---|---|
| Model Number | UPO1102CS |
| Scope Type | DSO |
| Bandwidth | 100MHz |
| Channels | 2 Analog |
| Real-Time Sample Rate | 1GSa/S |
| Rise Time | ≤1.8ns |
| Memory Depth | 56Mpts |
| capture rate | 150,000 wfms/s |
| Waveform Record | 100,000wfms/s |
| Input impedance | （1MΩ± 2%）||（16 pF± 3 pF） |
| Logic Pod Included | No |
| Waveform Generator | No |
| Display | 7-inch TFT |
| Touchscreen | No |
| Warranty | 3 years |
| Shipping Dimensions (L x W x H) | 16 in x 9 in x 11 in |
| Shipping Weight | 3.0 kg |
| Documents | English download guide, multi-language safety manual, calibration report (COC) |
| Included Accessories | Power cord, USB2.0 printing cable, Passive probe 100MHz * 2(UT-P04) |
| For additional product specifications, please refer to the attached PDF. |
|
Related Documents
Related Documents
User Manual
Datasheet
Programming Manual
Quick Guide
Software
Firmware
Couldn't load pickup availability
📹 Related Videos
📹 Related Videos
DVM
Multi-Scopes
Nedge triggers
Setup and hold time trigger
Frequency meter
Runt Trigger
Full hardware decoding function
