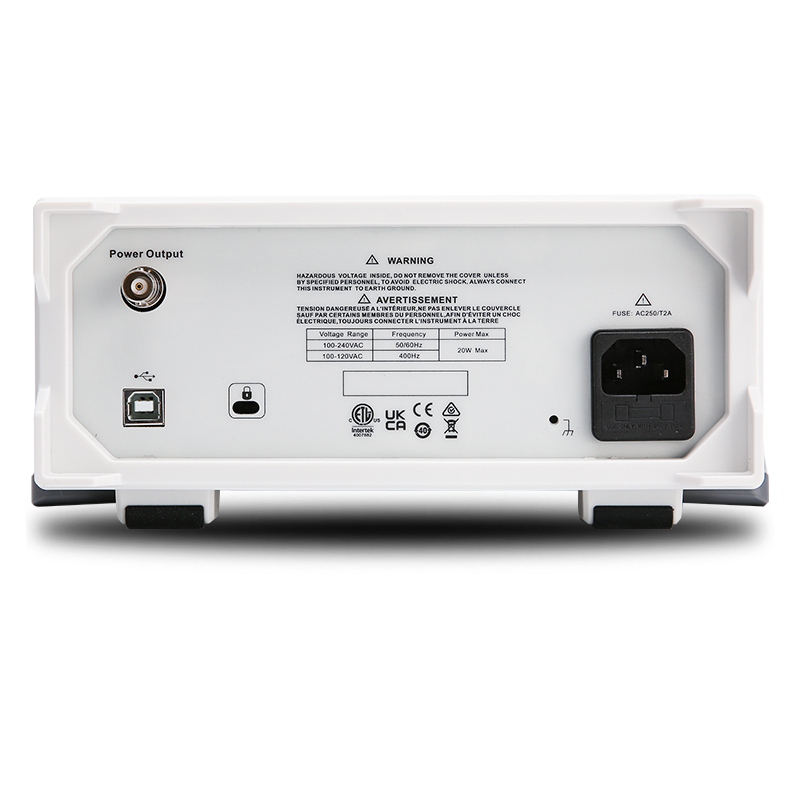

UNI-T UTG1022X-PA Waveform Generator

£257.00 excl. VAT
£308.40 Incl. VAT

The Uni-Trend UTG1022X-PA Essential-Series arbitrary waveform generator is an affordable and stable 20MHz source for your test bench.

20MHz, 2 channels, 4W Power Amplifier, 200MS/s, Memory Depth: 4Kpts, 4.3in display, USB. Modulations: AM, FM, PM, ASK, FSK, PSK, PWM, Sweep

Variants

Buttons

Overview

Feature Specification
Model Number UTG1022X-PA
Max Output Frequency 20 MHz
+4W PA
Channels Dual channel
Sample Rate 200MSa/s
Arbitrary Wave Length 4kpts
Vertical Resolution 16 Bits
Display 4.3inch TFT LCD
Power output 4 W
Warranty 3 years
Shipping Dimensions (L x W x H) 17 in x 14 in x 5 in
Shipping Weight 2.2Kg
Documents English download guide, multi-language safety manual, calibration report (COC)
Included Accessories Power cord, USB2.0 printing cable, BNC straight-through cable, BNC to alligator clip cable
For additional product specifications, please refer to the attached PDF.
