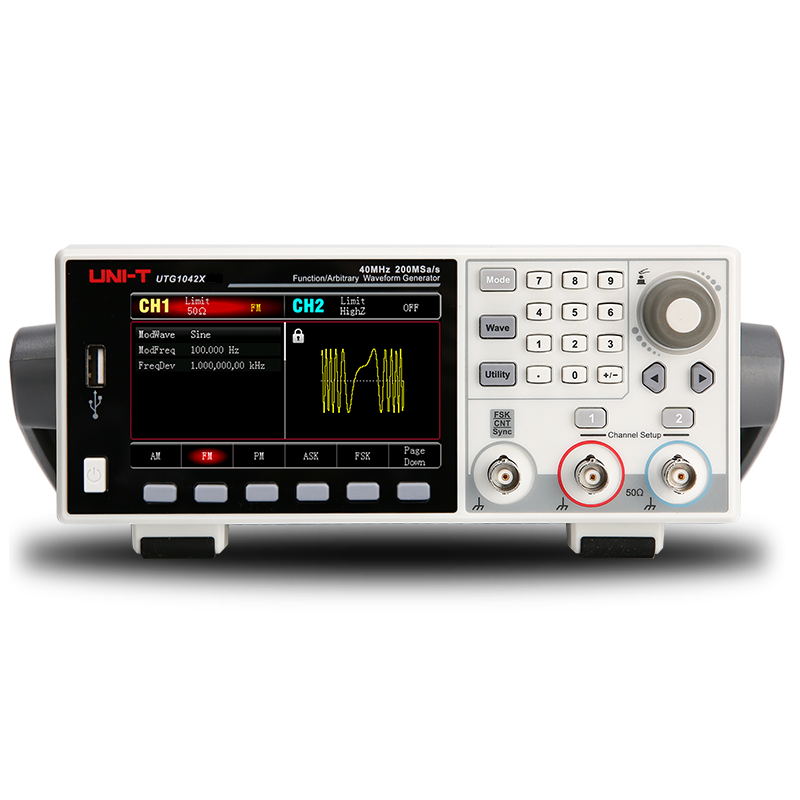

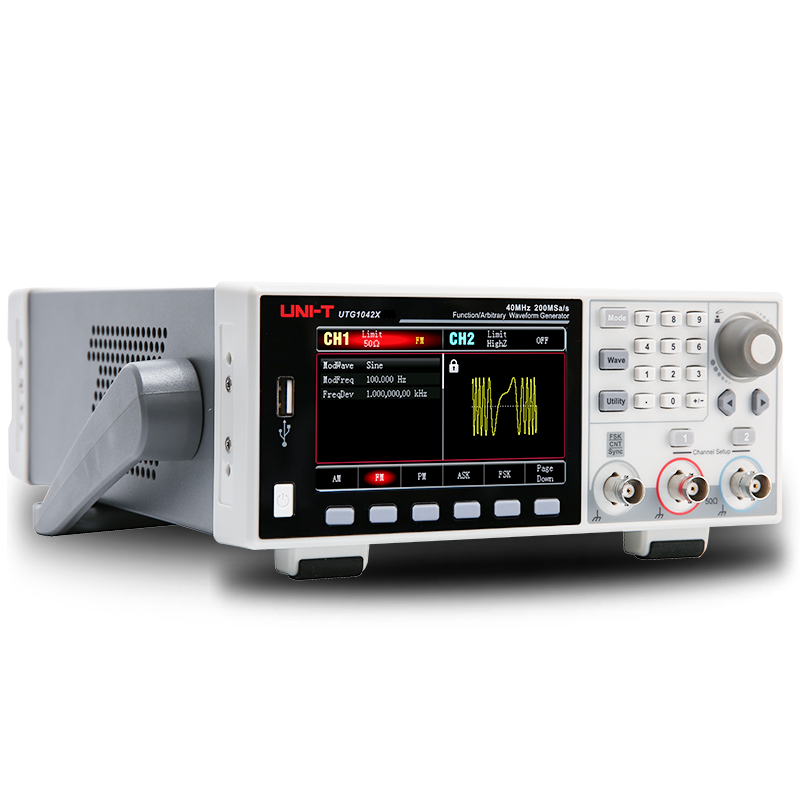

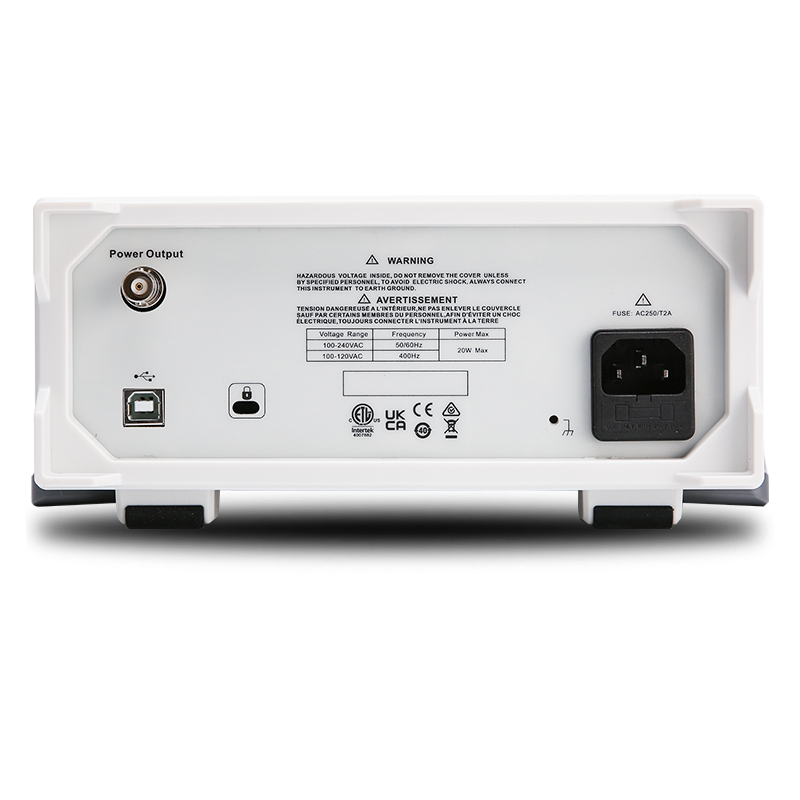

UNI-T UTG1042X Waveform Generator

Name: UNI-T UTG1042X Waveform Generator
Brand: UNI-T
Price: 287.00 GBP
Availability: InStock

40MHz, 2CH, 200MS/s, 4Kpts, 4.3" display, USB, AM/FM/FSK/PSK/PWM/Sweep

£287.00 excl. VAT

£344.40 Incl. VAT

Variants

Buttons

UTG1042X UTG1022X-PA UTG1022X

Delivery Content

Warranty

Frequency Output: 40MHz, with 1μHz resolution across the full frequency band
DDS Function: 200MSa/s sampling rate and 16-bit vertical resolution

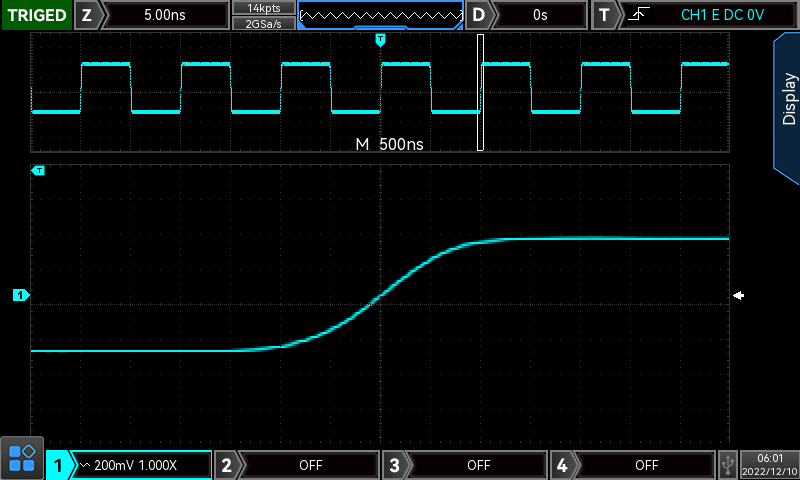

Square Wave: Maximum frequency of 20MHz, low jitter

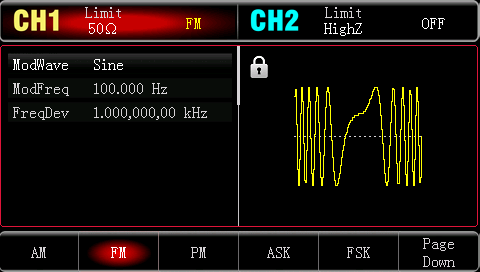

Modulation Functions: Supports AM, FM, PM, ASK, FSK, PSK, and PWM modulation

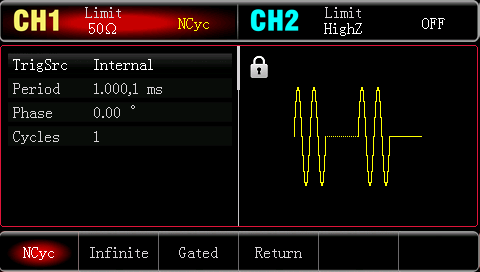

Sweep Frequency and Pulse Output: Supports frequency sweeping and pulse string output
Arbitrary Waveform Generation: Custom waveforms can be generated via computer software

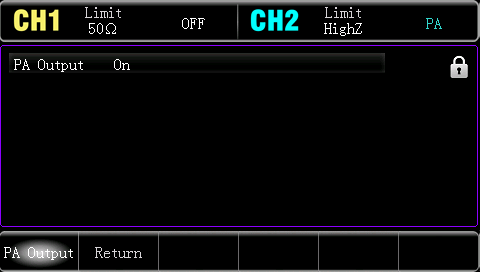

Built-In Power Pre-Amplifier: Maximum power output of 4W (only for -PA model)
Frequency Meter: 7-bit hard frequency meter
Arbitrary Waves: 200 built-in arbitrary waves
Connectivity: Standard USB Host and USB Device
Display: 4.3" TFT LCD, WVGA (480×272)

Channels: CH1, CH2
Amplitude Range: 1mVpp to 10Vpp (50Ω)
Waveform Types: Sine wave, square wave, pulse wave, ramp wave, arbitrary wave, noise, DC
Modulation Types: AM, FM, PM, ASK, FSK, PSK, PWM

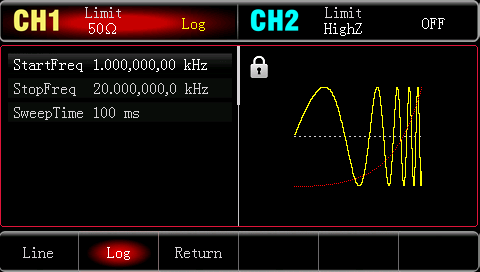

Sweep Frequency: Logarithmic and linear

A table comparing the facets of 3 products
Facet	UNI-T UTG1042X Waveform Generator View details	UNI-T UTG1022X-PA Waveform Generator View details	UNI-T UTG1022X Waveform Generator View details
By
By	UNI-T	UNI-T	UNI-T
Price
Price	£287.00 excl. VAT £344.40 Incl. VAT	£257.00 excl. VAT £308.40 Incl. VAT	£182.00 excl. VAT £218.40 Incl. VAT
Max. Output Frequency
Max. Output Frequency	40MHz	20MHz	20MHz
Channel
Channel	2	2	2
Vertical Resolution (VR)
Vertical Resolution (VR)	16bit	16bit	16bit
Sample Rate
Sample Rate	200 MSa/s	200 MSa/s	200 MSa/s
Arbitrary Wave lenght
Arbitrary Wave lenght	4kpts	4kpts	4kpts
Display
Display	4.3 inch TFT LCD	4.3 inch TFT LCD	4.3 inch TFT LCD
