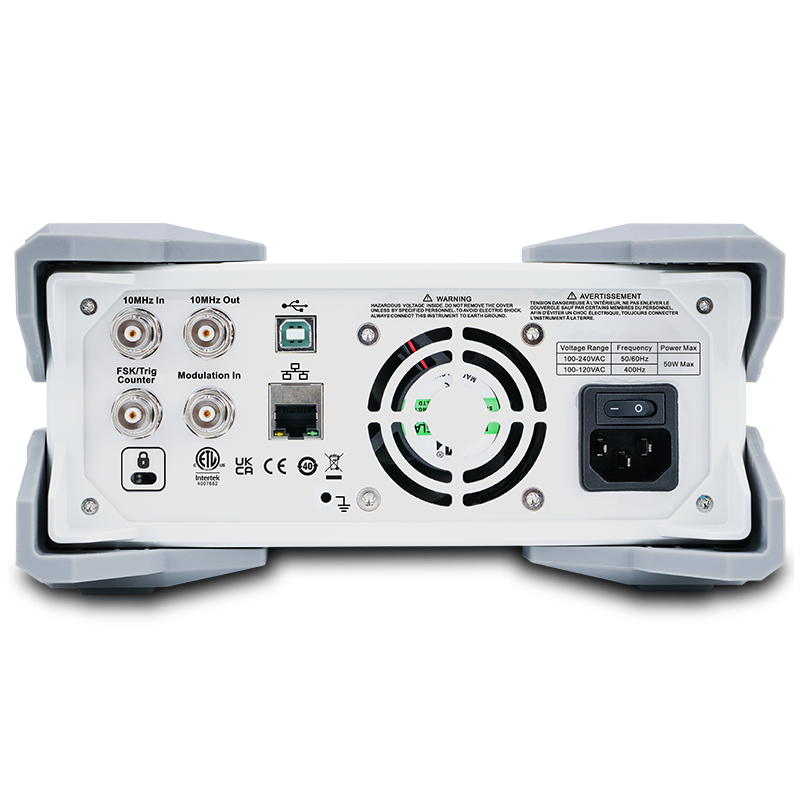

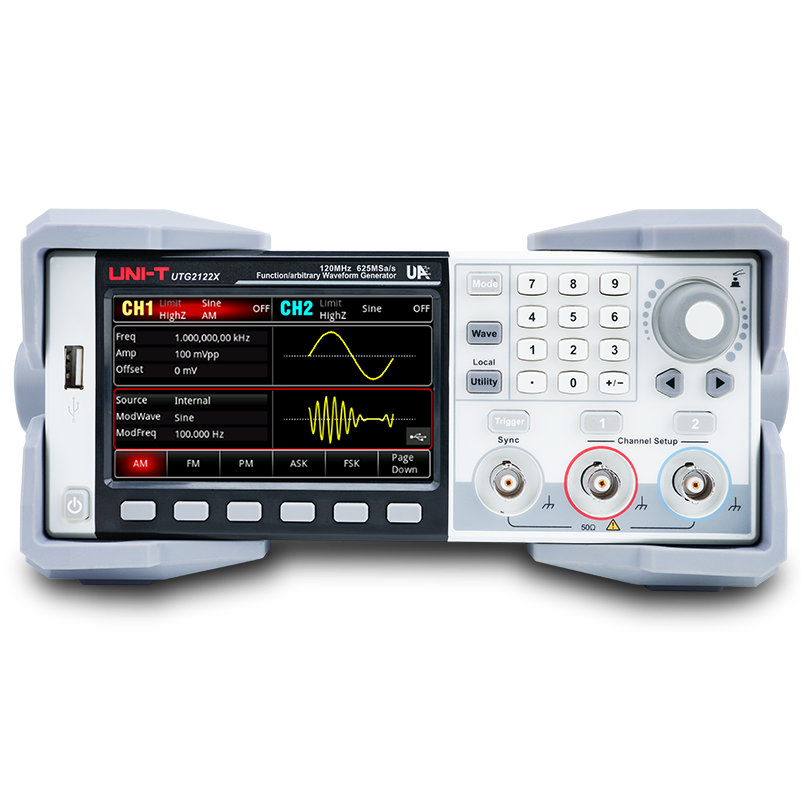

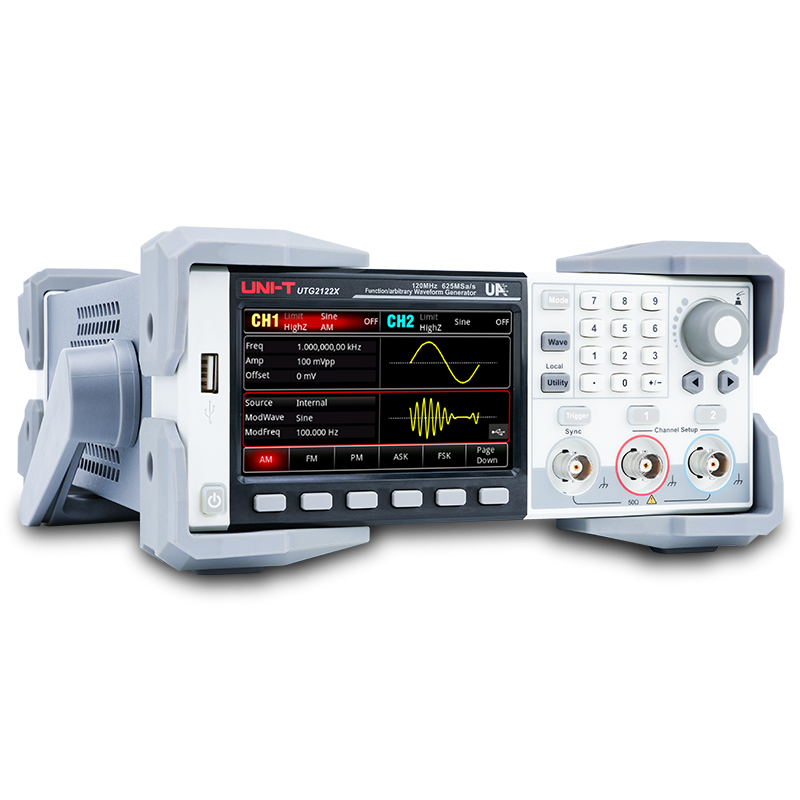

UNI-T UTG2062X Waveform Generator
- Bandwidth: Up to 60 MHz – ideal for general-purpose signal generation
- Sampling Rate: Up to 625 MSa/s – ensures detailed and accurate waveform output
- Vertical Resolution: 16-bit – provides high-fidelity signal generation
- Channels: 2 independent output channels – perfect for dual-signal testing
- Memory Depth: 64 Mpts per channel – supports long and complex waveform creation
- Display: 4.3-inch TFT LCD touchscreen – compact and user-friendly interface
- Ideal For: Education, electronics labs, circuit debugging, and R&D applications
£424.00
excl. VAT
Unit price
/
Unavailable
£508.80
Incl. VAT
Variants
Variants
Couldn't load pickup availability
5-Year Warranty Coverage
Enjoy peace of mind with a 3-Year Standard Warranty, plus receive an additional 2 years when you register your product on our website.
👉 Register now at: Product Registration
Specifications
Specifications
-
Max. Output Frequency60 MHz
-
Channels2
-
Vertical Resolution (VR)16-bit
-
Sample Rate
-
Arbitrary Wave lenght
-
Display4.3 inch TFL LCD (touch screen)
Description
- Output Channels: 2 independent outputs with separate control
- Maximum Output Frequency: Up to 60 MHz for sine waves
- Sampling Rate: 625 MSa/s for accurate high-speed waveform generation
- Vertical Resolution: 16-bit for excellent waveform fidelity
- Maximum Output Amplitude: 20 Vpp
- Memory Depth: 64 Mpts per channel – supports complex waveforms
- Built-in Waveforms: Includes 200 arbitrary waveform presets
- Waveform Types: Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, and arbitrary
- Square Wave Output: Up to 50 MHz with extremely low jitter
- Pulse Wave: Adjustable rising/falling edge with fine resolution for wide dynamic range
- Modulation Types: AM, FM, PM, DSB-AM, ASK, PSK, BPSK, QPSK, FSK (3FSK/4FSK), QAM, OSK, PWM, SUM
- Waveform Generation: Arbitrary waveform lengths from 8 pts to 64 Mpts, point-by-point generation with low jitter
- Sweep and Burst Functions: Includes linear/log/list sweep and burst output modes
- Channel Sync Functions: Channel copy, follow, and stacking supported
- PC Integration: Create and upload custom waveforms using PC editor
- Hardware Frequency Counter: 7-digit resolution, supports AC/DC coupling
- Display: 4.3-inch TFT capacitive touchscreen with intuitive UI
- Interfaces: USB Host, USB Device, LAN – for flexible connectivity
- Remote Operation: Supports SCPI protocol for programmable control
Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£424.00
excl. VAT
Unit price
/
Unavailable
£508.80
Incl. VAT
|
£521.00
excl. VAT
Unit price
/
Unavailable
£625.20
Incl. VAT
|
£759.00
excl. VAT
Unit price
/
Unavailable
£910.80
Incl. VAT
|
£478.00
excl. VAT
Unit price
/
Unavailable
£573.60
Incl. VAT
|
| Max. Output Frequency | ||||
| Max. Output Frequency | 60 MHz
| 80 MHz
| 120 MHz
| 120 MHz
|
| Channel | ||||
| Channel | 2
| 2
| 2
| 2
|
| Vertical Resolution (VR) | ||||
| Vertical Resolution (VR) | 16-bit
| 16-bit
| 16-bit
| 16-bit
|
| Sample Rate | ||||
| Sample Rate | ||||
| Arbitrary Wave lenght | ||||
| Arbitrary Wave lenght | ||||
| Display | ||||
| Display | 4.3 inch TFL LCD (touch screen)
| 4.3 inch TFL LCD (touch screen)
| 4.3 inch TFL LCD (touch screen)
| 4.3 inch TFL LCD
|
