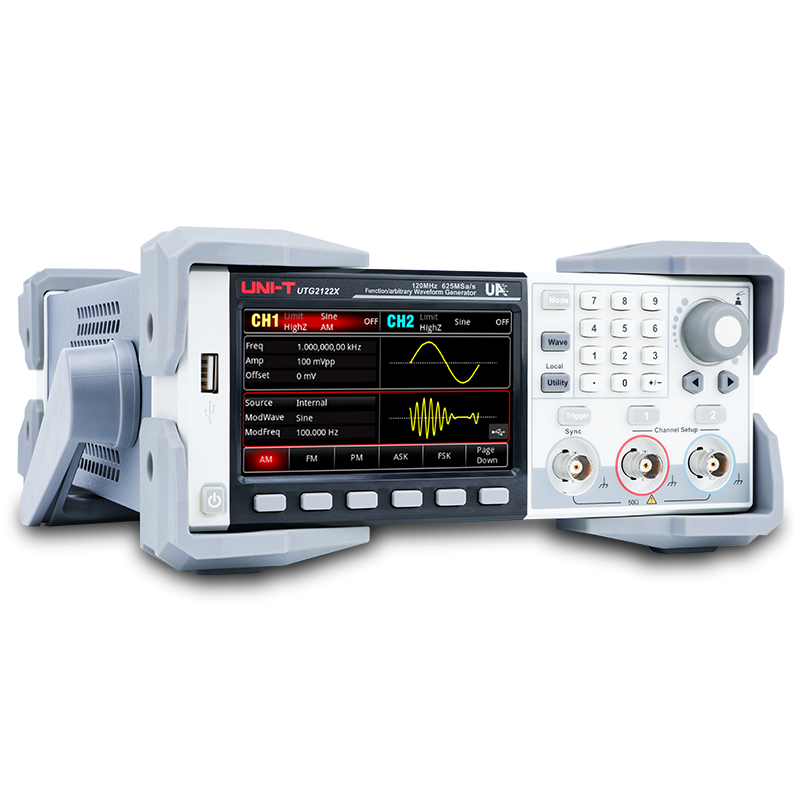

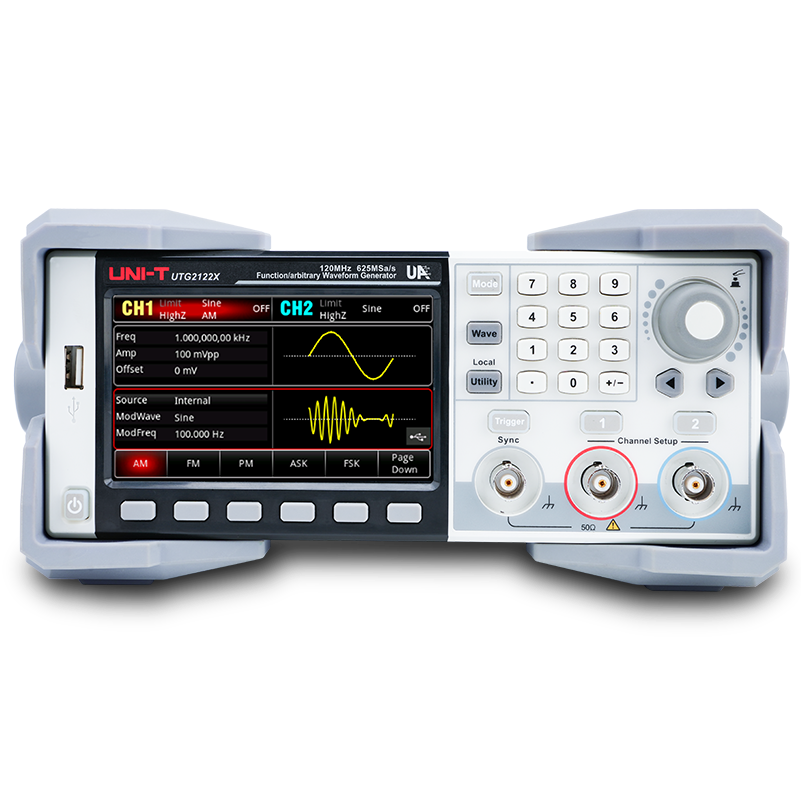

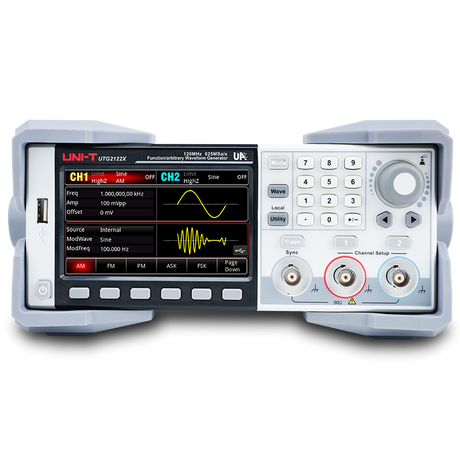

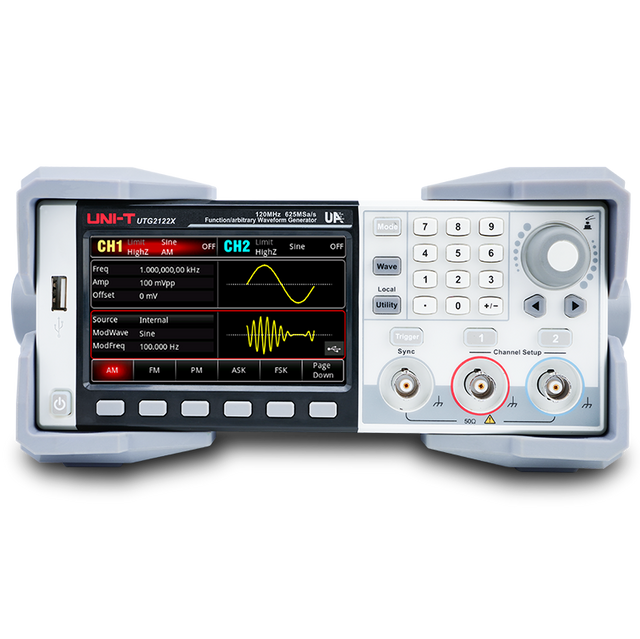

UNI-T UTG2122X Waveform Generator

Bandwidth: Up to 120 MHz – suitable for a wide range of signal generation tasks
Sampling Rate: Up to 625 MSa/s – ensures accurate waveform reproduction
Vertical Resolution: 16-bit – delivers high-fidelity signal output
Channels: 2 independent output channels – ideal for dual-signal testing and simulation
Memory Depth: 64 Mpts per channel – supports long and complex waveform creation
Display: 4.3-inch TFT LCD touchscreen – compact yet user-friendly interface
Ideal For: Education, R&D, circuit testing, and general-purpose signal generation

£759.00 excl. VAT

£910.80 Incl. VAT

Variants

Buttons

UTG2122X UTG2082X UTG2062X

Delivery Content

Warranty

Waveform Channels: 2 independent output channels
Maximum Output Frequency: Up to 120 MHz for sine waves
Sampling Rate: 625 MSa/s ensures precise waveform generation
Vertical Resolution: 16-bit for high-fidelity signal output
Maximum Output Amplitude: 20 Vpp
Memory Depth: Up to 64 Mpts for long and detailed waveform storage
Standard Waveforms: Sine, square, pulse, ramp, noise, and arbitrary waveforms
Square Wave: Up to 50 MHz with low jitter performance
Pulse Wave: High-precision and wide dynamic range with finely adjustable edge time
Modulation Functions: AM, FM, PM, DSB-AM, ASK, FSK (3FSK, 4FSK), PSK, BPSK, QPSK, QAM, OSK, PWM, SUM
Frequency Sweep & Burst Modes: Supports linear sweeps and pulse burst output
Arbitrary Waveform Capability: 8 pts to 64 Mpts, with point-by-point low-jitter generation
Built-in 200 pre-defined arbitrary waveforms
Waveform Tools: Channel copy, follow, stack, and custom arbitrary waveform editor (via PC software)
Frequency Counter: 7-digit hardware frequency counter
User Interface: 4.3-inch TFT capacitive touchscreen for intuitive control

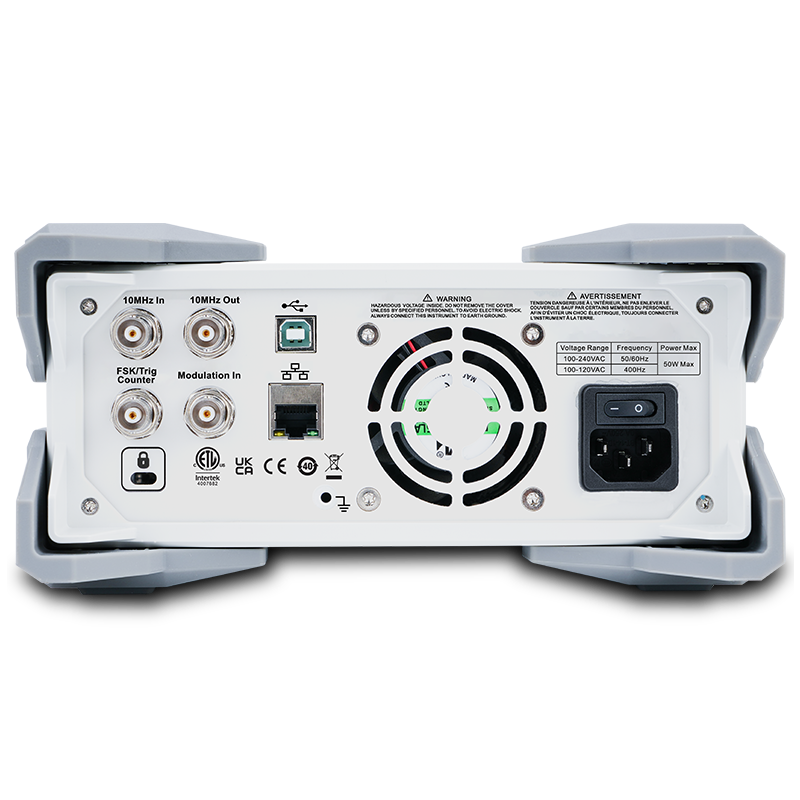

Connectivity: USB Host, USB Device, and LAN for flexible communication
SCPI Protocol: Supports remote control via SCPI commands

A table comparing the facets of 4 products
Facet	UNI-T UTG2122X Waveform Generator View details	UNI-T UTG2122B Waveform Generator View details	UNI-T UTG2062B Waveform Generator View details	UNI-T UTG2082B Waveform Generator View details
By
By	UNI-T	UNI-T	UNI-T	UNI-T
Price
Price	£759.00 excl. VAT £910.80 Incl. VAT	£478.00 excl. VAT ~~£526.00~~ £573.60 Incl. VAT	£386.00 excl. VAT ~~£425.00~~ £463.20 Incl. VAT	£466.00 excl. VAT ~~£512.00~~ £559.20 Incl. VAT
Max. Output Frequency
Max. Output Frequency	120 MHz	120 MHz	60 MHz	80 MHz
Channel
Channel	2	2	2	2
Vertical Resolution (VR)
Vertical Resolution (VR)	16-bit	16-bit	16-bit	16-bit
Sample Rate
Sample Rate	625 MSa/s	320 MSa/s	320 MSa/s	320 MSa/s
Arbitrary Wave lenght
Arbitrary Wave lenght	64 Mpts	16 Mpts	16 Mpts	16 Mpts
Display
Display	4.3 inch TFL LCD (touch screen)	4.3 inch TFL LCD	4.3 inch TFL LCD	4.3 inch TFL LCD
