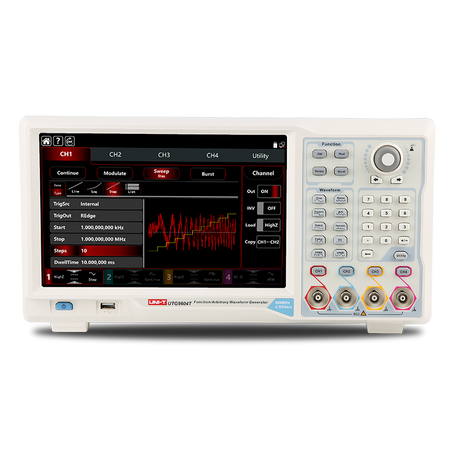

UNI-T UTG9604T Waveform Generator
- Bandwidth: Up to 600 MHz – ideal for ultra-high-frequency signal generation
- Sampling Rate: Up to 2.5 GSa/s – delivers precise and detailed waveform outputs
- Vertical Resolution: 16-bit – ensures exceptional signal fidelity and accuracy
- Channels: 4 independent output channels – supports multi-signal testing and complex simulations
- Memory Depth: 64 Mpts per channel – for long, high-resolution waveform sequences
- Display: 10.1-inch TFT LCD touchscreen – provides an intuitive and responsive user interface
- Ideal For: Advanced research, high-speed digital circuit testing, RF applications, and signal processing development
New arrival
£4,828.00
excl. VAT
Unit price
/
Unavailable
£5,793.60
Incl. VAT
Variants
Variants
Couldn't load pickup availability
5-Year Warranty Coverage
Enjoy peace of mind with a 3-Year Standard Warranty, plus receive an additional 2 years when you register your product on our website.
👉 Register now at: Product Registration
Specifications
Specifications
-
Max. Output Frequency600 MHz
-
Channels4
-
Vertical Resolution (VR)16-bit
-
Sample Rate
-
Arbitrary Wave lenght
-
Display10.1 inch TFT LCD (touch screen)
Description
- Bandwidth: Up to 600 MHz (sine wave), with full-band 1 μHz frequency resolution
- Sampling Rate: 2.5 GSa/s for ultra-fast and accurate waveform generation
- Vertical Resolution: 16-bit for exceptional signal fidelity
- Waveform Output Channels: 4 independent output channels
- Memory Depth: 64 Mpts per channel
- Standard Waveforms: Sine, square, ramp, pulse, harmonic, noise, PRBS, DC, and arbitrary
- Square Wave Output: Up to 200 MHz with 1.5 ns minimum edge time and adjustable duty cycle
- Pulse Wave Output: Up to 200 MHz with high-precision rise/fall time and adjustable duty cycle
- Harmonic Output: Adjustable 2 to 16 harmonic components with independent phase and amplitude
- Maximum Output Amplitude: 20 Vpp
- Arbitrary Waveform Support: 8 pts to 64 Mpts, with over 200 non-volatile waveform storage slots
- Storage: 16 GB internal memory for .bsv/.csv waveform and instrument files
- Modulation Types: AM, FM, PM, DSB-AM, QAM, ASK, FSK (3FSK, 4FSK), PSK, BPSK, QPSK, OSK, PWM, SUM
- Advanced Sweep Modes: Linear, logarithmic, list, and step frequency sweeps
- Burst Output: Frequency sweep and pulse string output supported
- Digital Protocol Output: Supports SPI, I2C, and UART
- SNR Output: One-click signal-to-noise ratio output
- Dual-Channel Modulation: Internal/external modulation and trigger options
- Frequency Counter: 800 MHz hardware counter with AC/DC coupling

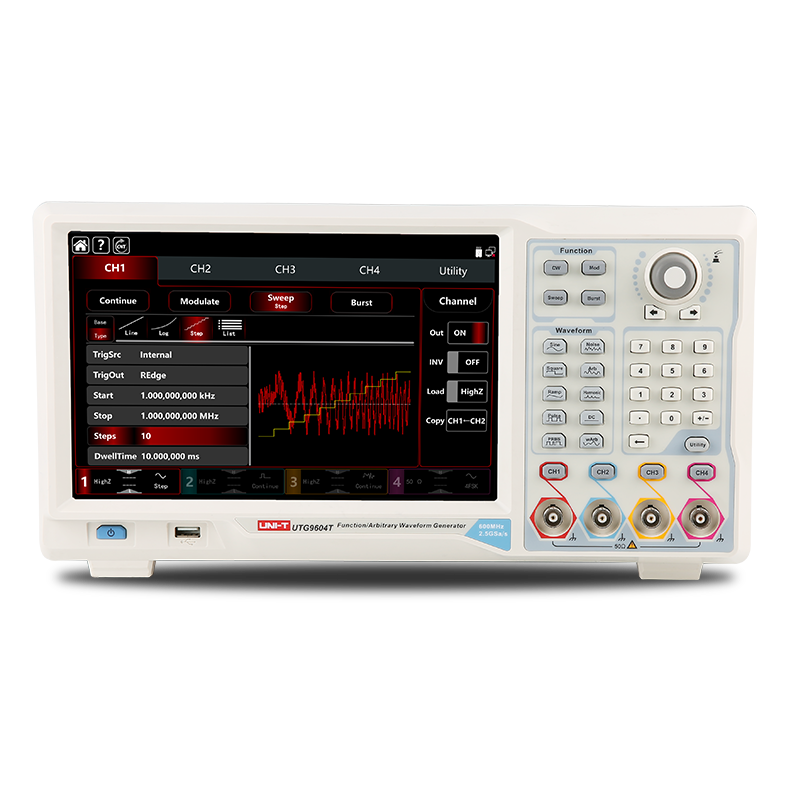

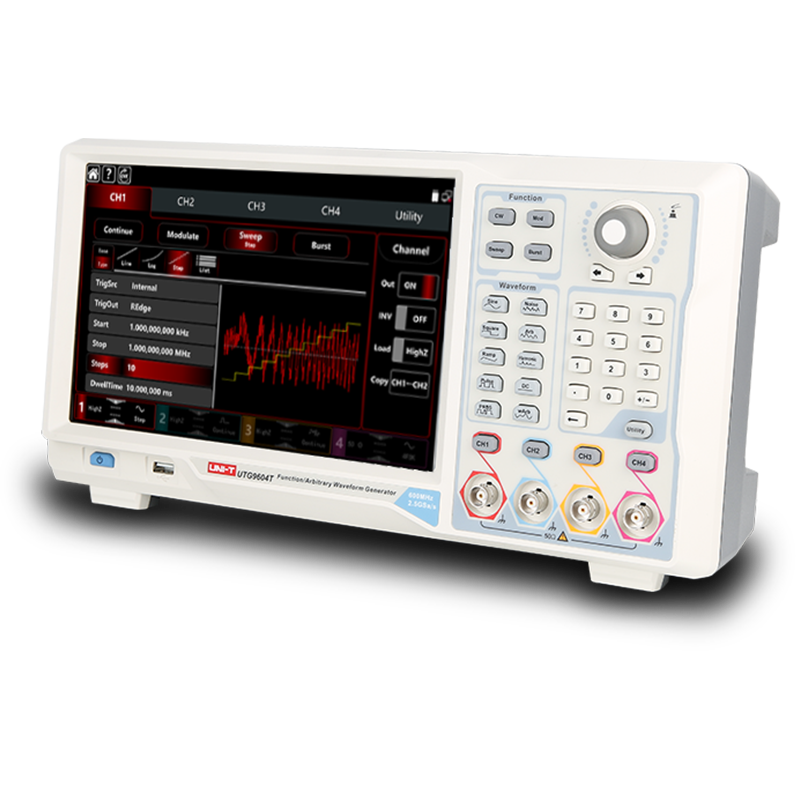

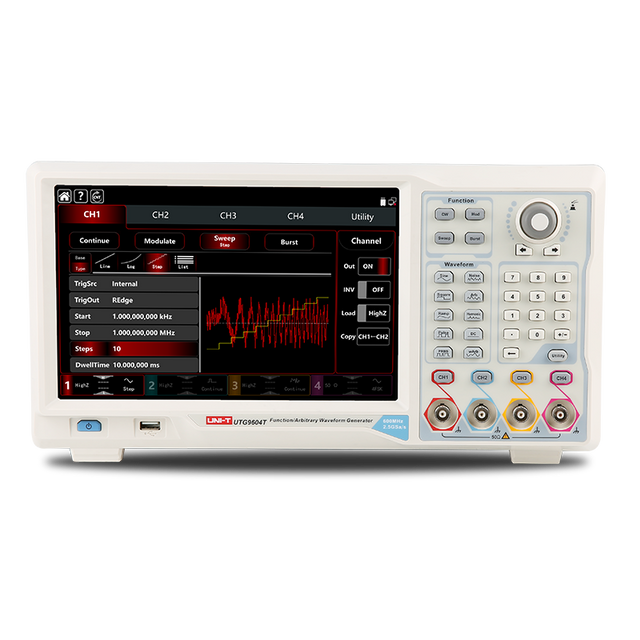

- Display: 10.1-inch 1280×800 capacitive touchscreen for intuitive control
- User Interface: Multi-purpose knob and numeric keypad

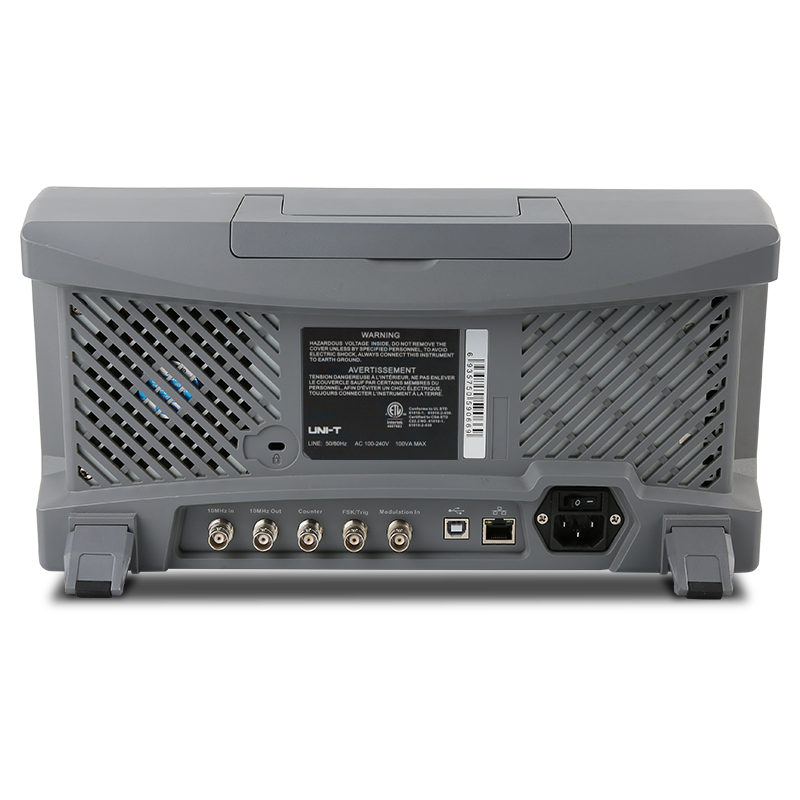

- Connectivity: USB Host, USB Device, LAN, 10 MHz clock input/output
- Software: Includes PC control software and arbitrary waveform editor
