Specifications
Specifications
-
Type
-
Channels3
-
Total Power
-
Output Voltage32V
-
Output Current5A
-
Resolution10mV/1mA
-
AccuracyVoltage:＜0.01%＋3mV,Current:≤0.2%+3mA
-
Connectivity/
Description
- Type: Linear
- Channels: 3
- Total Power: 335W
- Output Voltage: 32V
- Output Current: 5A
- Resolution: 10mV/1mA
- Setting Accuracy: Voltage: ＜(0.01% + 3mV), Current: ≤(0.1% + 3mA)
- Connectivity: /
- High-precision four-digit voltage and current display (10mV/1mA)
- Low ripple and noise
- Tracking functionality for synchronized outputs
- Constant voltage and constant current modes

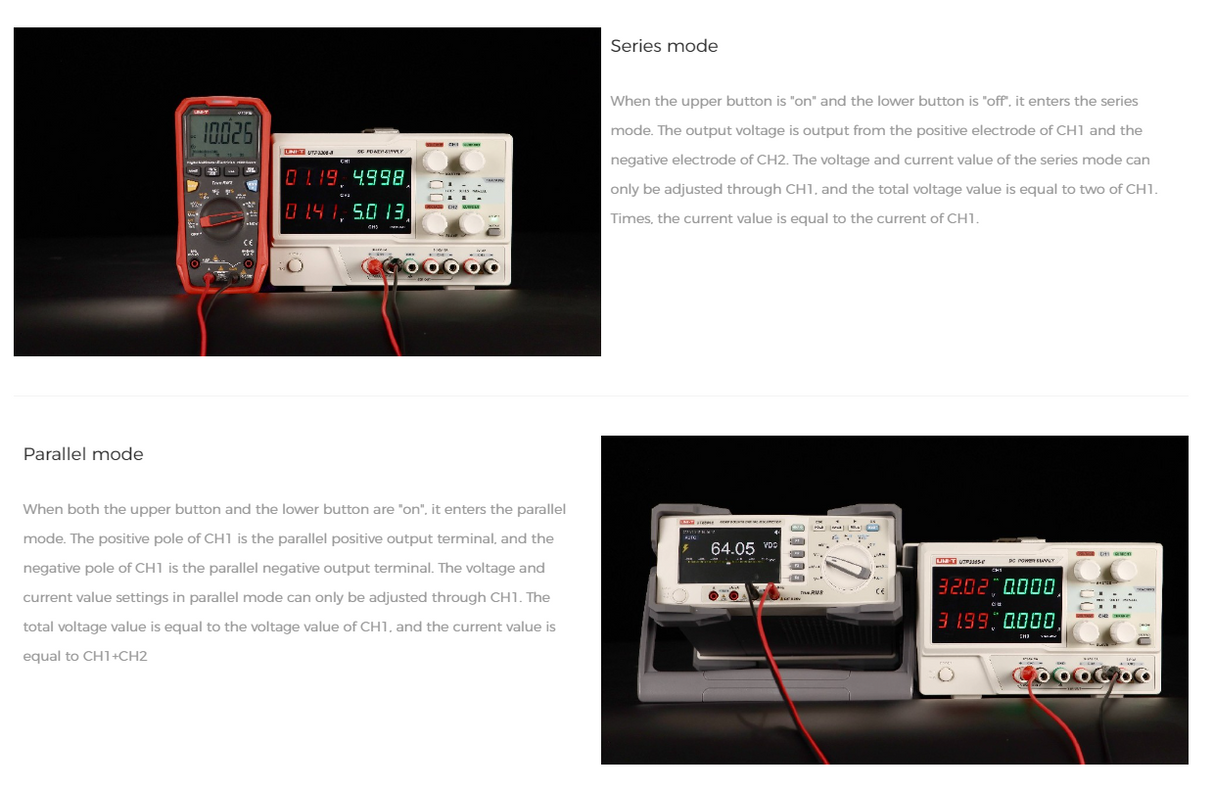

- Series and parallel output modes:
- Parallel Mode: When both CH1 and CH2 are "on", the positive and negative terminals of CH1 are used for parallel output. The total current is the sum of CH1 and CH2 currents, while the voltage is the same as CH1's setting.
- Series Mode: When CH1 is "on" and CH2 is "off", the output voltage is the sum of CH1 and CH2 voltage settings, while the current remains the same as CH1's setting.
- Temperature-controlled cooling fan for quiet operation
- Over-voltage and over-current protection for safety
- Output on/off control for convenience in operation

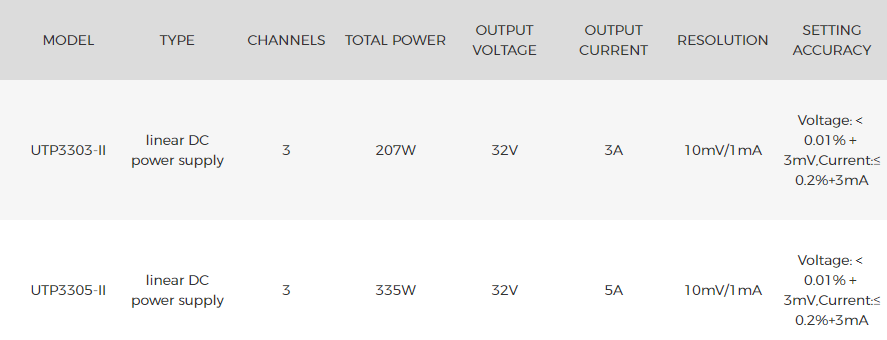

Product comparison
| Facet | ||||
|---|---|---|---|---|
| By | ||||
| By | UNI-T | UNI-T | UNI-T | UNI-T |
| Price | ||||
| Price |
£169.00
excl. VAT
Unit price
/
Unavailable
£202.80
Incl. VAT
|
£169.00
excl. VAT
Unit price
/
Unavailable
£202.80
Incl. VAT
|
£69.00
excl. VAT
Unit price
/
Unavailable
£82.80
Incl. VAT
|
£61.00
excl. VAT
Unit price
/
Unavailable
£73.20
Incl. VAT
|
| Type | ||||
| Type | ||||
| Channel | ||||
| Channel | 3
| 3
| 1
| 1
|
| Total Power | ||||
| Total Power | ||||
| Output Voltage | ||||
| Output Voltage | 32V
| 32V
| 30V
| 30V
|
| Output Current | ||||
| Output Current | 5A
| 3A
| 5A
| 3A
|
| Resolution | ||||
| Resolution | 10mV/1mA
| 10mv/1mA
| 10mV/1mA
| 10mV/1mA
|
| Accuracy | ||||
| Accuracy | Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
| Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
| Voltage:＜0.01%＋3mV,Current:≤0.1%+3mA
| Voltage:＜0.01%＋3mV,Current:≤0.1%+3mA
|
| Connectivity | ||||
| Connectivity | /
| /
| /
| /
|
