Specifications
Specifications
-
Type
-
Channels1
-
Total Power
-
Output Voltage30V
-
Output Current3A
-
Resolution10mV/1mA
-
AccuracyVoltage:＜0.01%＋3mV,Current:≤0.1%+3mA
-
Connectivity/
Description
|
Technical Index
|
|||
| Model | UTP3313TFL-II | UTP3315TFL-II | |
| Output voltage | 0-30V | 0-30V | |
| Output current | 0-3A | 0-5A | |
| Output power | 90W | 150W | |
| Load regulation | CVs0.01%+3mV, CCs 0.1%+5mA |
CVs0.01%+5mV, CCs 0.1%+10mA |
|
| Programming accuracy | Voltage | < 0.5%+20mV | < 0.5%+20mV |
| Current | < 0.5%+5mA | < 0.5%+10mA | |
| Ripple and noise | 1mVrms | 2mVrms | |
| Output regulate resolution | CV: 10mV (typical), CC: 1mA (typical) | ||
| Reliability | MTBF(e): * 2000hrs | ||
| Display mode | LED voltage and current dual display | ||
General Characteristic |
|||
| Power | Input voltage: 110V/220V+5% AC, Frequency: 50Hz/60Hz | ||
| Product net weight Product | 3Kg | 4Kg | |
| Size (W x H x D) | 105mm x 165mm x 249mm | ||
Ordering Information |
|||
| Standard Accessories | International standard power cord | ||
| Test output line | |||
| For additional product specifications, please refer to the attached PDF. |
|
||

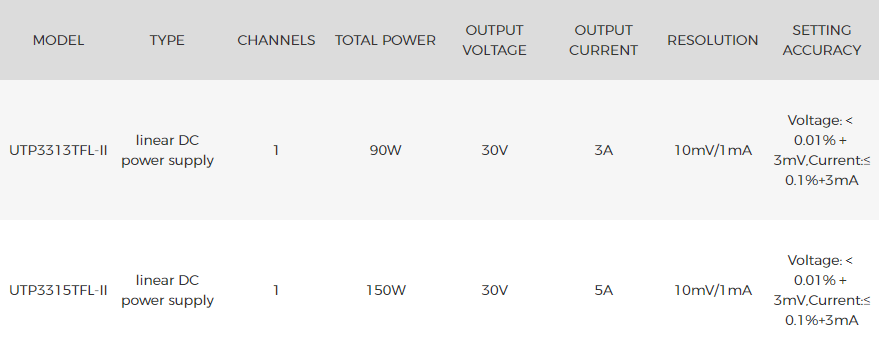

Product comparison
| Facet | |||
|---|---|---|---|
| By | |||
| By | UNI-T | UNI-T | UNI-T |
| Price | |||
| Price |
£69.00
excl. VAT
Unit price
/
Unavailable
£82.80
Incl. VAT
|
£169.00
excl. VAT
Unit price
/
Unavailable
£202.80
Incl. VAT
|
£169.00
excl. VAT
Unit price
/
Unavailable
£202.80
Incl. VAT
|
| Type | |||
| Type | |||
| Channel | |||
| Channel | 1
| 3
| 3
|
| Total Power | |||
| Total Power | |||
| Output Voltage | |||
| Output Voltage | 30V
| 32V
| 32V
|
| Output Current | |||
| Output Current | 5A
| 3A
| 5A
|
| Resolution | |||
| Resolution | 10mV/1mA
| 10mv/1mA
| 10mV/1mA
|
| Accuracy | |||
| Accuracy | Voltage:＜0.01%＋3mV,Current:≤0.1%+3mA
| Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
| Voltage:＜0.01%＋3mV,Current:≤0.2%+3mA
|
| Connectivity | |||
| Connectivity | /
| /
| /
|
