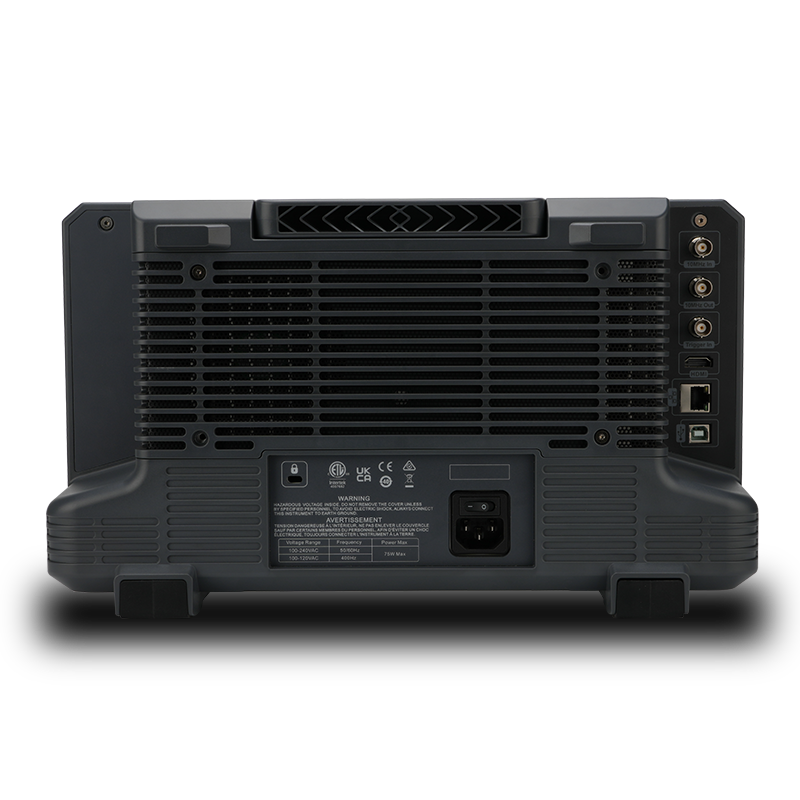

UNI-T UTS3060A signal analyzers

Key Features:

Frequency Range: 9 kHz to 6.0 GHz – ideal for wideband RF, 5G, Wi-Fi, and communication systems
Resolution Bandwidth (RBW): 1 Hz to 10 MHz – flexible bandwidth for detailed or wide-span analysis
Phase Noise: -100 dBc/Hz @10 kHz offset – ensures clean, low-jitter signal measurements
DANL (Displayed Average Noise Level): As low as -165 dBm – exceptional sensitivity for weak signal detection
Tracking Generator: Yes – enables frequency response testing and component characterization
Real-Time Bandwidth (Optional): Up to 40 MHz – supports real-time spectrum analysis for dynamic signals
Display: 10.1-inch TFT LCD touchscreen – responsive, high-resolution interface for smooth operation
Ideal For: 5G, IoT, RF component testing, EMI diagnostics, and advanced signal analysis

£7,051.00 excl. VAT

£8,461.20 Incl. VAT

Variants

Buttons

UTS3084A UTS3060A UTS3036A

Delivery Content

Warranty

Frequency Range: 9 kHz to 6.0 GHz
Resolution Bandwidth (RBW): 1 Hz to 10 MHz
Displayed Average Noise Level (DANL): As low as -165 dBm/Hz (typical)
Phase Noise: Less than -100 dBc/Hz @ 10 kHz offset (typical)
Full Amplitude Accuracy: Less than 0.7 dB
Sweep Points: Up to 40,001 for detailed signal resolution
Tracking Generator Output: Supported
Vector Network Analysis: Supported for S-parameter testing
Real-Time Spectrum Analysis: Displays both probability density and classic spectrum views
Trigger Modes: Multiple trigger types and templates for versatile signal detection
Maximum Real-Time Bandwidth: 40 MHz (optional)
Optional Features:
- One-Key Advanced Measurement Function
- EMI Pre-Compliance Analysis
- Analog Demodulation Analysis
- Vector Signal Analysis (VSA)
Touchscreen Display: 10.1-inch HD TFT LCD (1280 × 800) with multi-touch support
Remote Control: SCPI-compliant via USB or LAN interface

A table comparing the facets of 4 products
Facet	UNI-T UTS3084T Spectrum Analyser View details	UNI-T UTS3021B Spectrum Analyser View details	UNI-T UTS1015T Spectrum Analyser View details	UNI-T UTS1032B Spectrum Analyser View details
By
By	UNI-T	UNI-T	UNI-T	UNI-T
Price
Price	£2,735.81 excl. VAT £3,282.97 Incl. VAT	£1,794.99 excl. VAT £2,153.99 Incl. VAT	£845.00 excl. VAT ~~£1,072.00~~ £1,014.00 Incl. VAT	£1,523.00 excl. VAT ~~£1,845.00~~ £1,827.60 Incl. VAT
Frequency Range
Frequency Range	9kHz~8.4GHz	9kHz~2.1GHz	9kHz~1.5GHz	9kHz~3.2GHz
RBW
RBW	1Hz~3MHz	1Hz~3MHz	1Hz~1MHz	1Hz~1MHz
Phase Noise
Phase Noise	-98dBc/Hz @10kHz	-98dBc/Hz @10kHz	-98dBc/Hz @10kHz	-98dBc/Hz @10kHz
DANL
DANL	-161dBm	-161dBm	-161dBm	-161dBm
Traking Generator
Traking Generator	Yes	Option	YES	NO
Display
Display	10.1 inch TFT LCD(touch screen)	10.1 inch TFT LCD(touch screen)	10.1 inch TFT LCD(touch screen)	10.1 inch TFT LCD(touch screen)
